- RS Stock No.:
- 259-2115
- Mfr. Part No.:
- ASFC16G31M-51BIN
- Manufacturer:
- Alliance Memory
Temporarily out of stock - back order for despatch 03-06-2024, delivery within 2 working days
Added
Price Each (In a Tray of 160)
€7.339
(exc. VAT)
€9.027
(inc. VAT)
| Units | Per unit | Per Tray* |
| 160 + | €7.339 | €1,174.24 |
| *price indicative | ||
- RS Stock No.:
- 259-2115
- Mfr. Part No.:
- ASFC16G31M-51BIN
- Manufacturer:
- Alliance Memory
Technical data sheets
Legislation and Compliance
Product Details

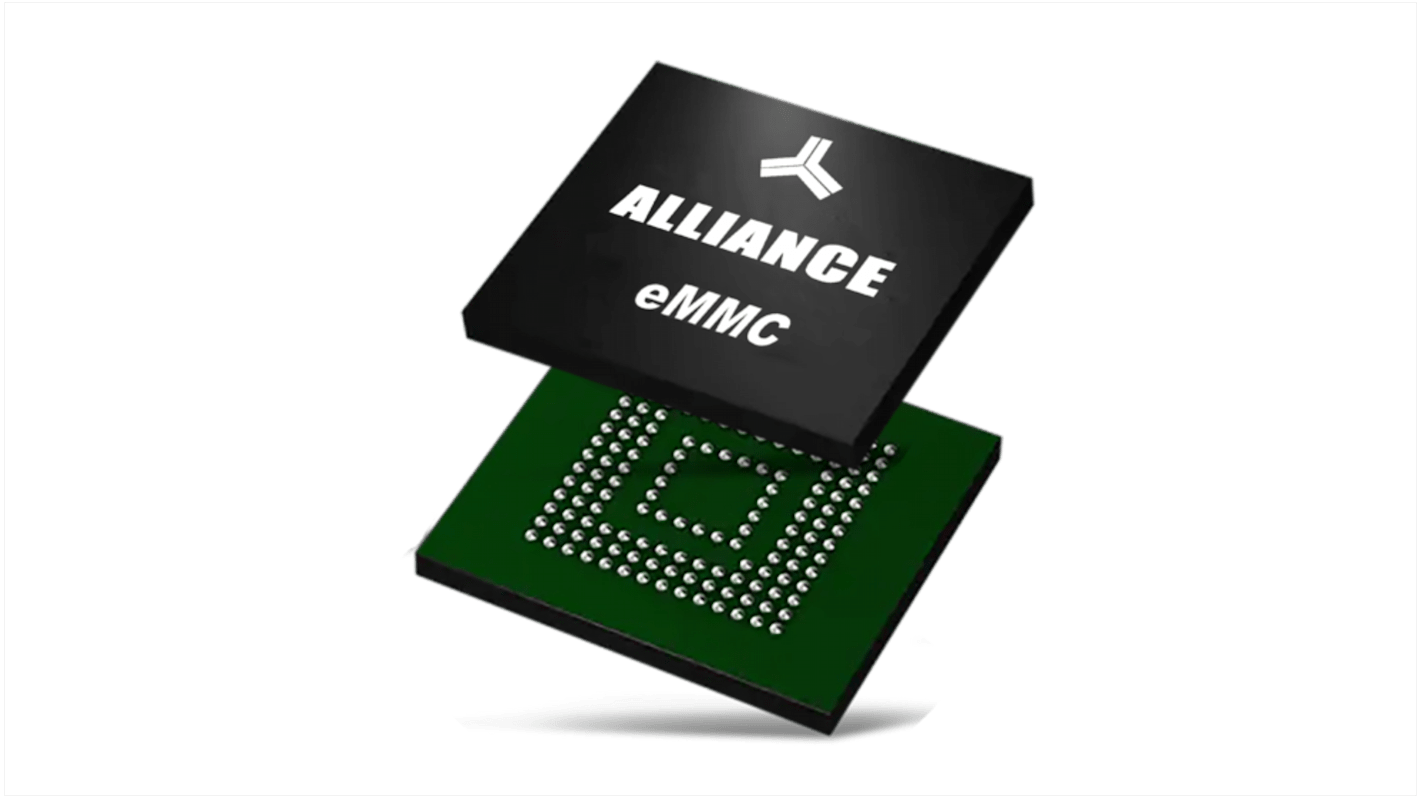

The Alliance Memory 16GB eMMC device (AS16FC) is a high performance embedded MMC solution designed for embedded NAND flash applications. It supports eMMC/JEDEC 5.1 industry standard and is backward compatible with eMMC 4.5 & 5.0 version.
Supports features of eMMC5.1 which are defined in JEDEC standard
Supports Enhanced Strobe feature of new eMMC standard of version 5.1
Full backward compatibility with previous eMMC 4.41/4.5/5.0 specification and multi media card system specification (1bit data bus, multi-eMMC systems)
Programmable bus width is 1bit (Default), 4bit and 8bit data bus
MMC I/F clock Frequency ranges from 0 ∼ 200MHz
MMC I/F boot Frequency ranges from 0 ∼ 52MHz
Operating temperature ranges from -40OC ∼ 85OC
Storage temperature ranges from -40OC ∼ 85OC
Supports Enhanced Strobe feature of new eMMC standard of version 5.1
Full backward compatibility with previous eMMC 4.41/4.5/5.0 specification and multi media card system specification (1bit data bus, multi-eMMC systems)
Programmable bus width is 1bit (Default), 4bit and 8bit data bus
MMC I/F clock Frequency ranges from 0 ∼ 200MHz
MMC I/F boot Frequency ranges from 0 ∼ 52MHz
Operating temperature ranges from -40OC ∼ 85OC
Storage temperature ranges from -40OC ∼ 85OC
Specifications
Attribute | Value |
|---|---|
| Memory Size | 16GByte |
| Interface Type | eMMC |
| Package Type | FBGA |
| Pin Count | 153 |
| Organisation | 2G x 8 |
| Mounting Type | Surface Mount |
| Cell Type | NAND |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Length | 11.5mm |
| Height | 1mm |
| Width | 13mm |
| Dimensions | 11.5 x 13 x 1mm |
