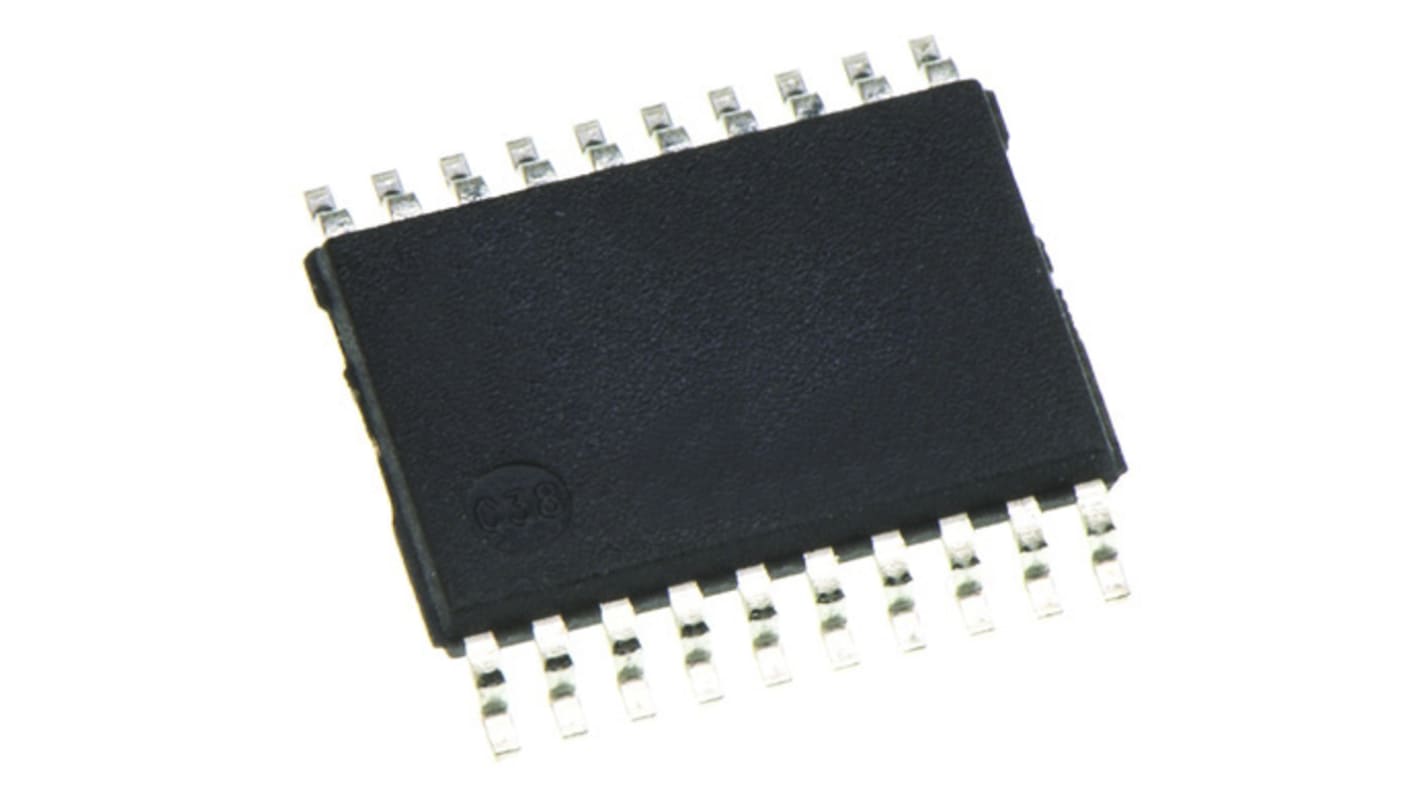

Toshiba 74VHC273FT Octal D Type Flip Flop IC, CMOS, 20-Pin TSSOP
- RS Stock No.:
- 171-3336
- Mfr. Part No.:
- 74VHC273FT
- Manufacturer:
- Toshiba
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 171-3336
- Mfr. Part No.:
- 74VHC273FT
- Manufacturer:
- Toshiba
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Toshiba | |
Logic Family | 74VHC | |
Logic Function | D Type | |
Input Type | CMOS, TTL | |
Output Type | CMOS | |
Output Signal Type | Single Ended | |
Triggering Type | Positive Edge | |
Polarity | Non-Inverting | |
Mounting Type | Surface Mount | |
Package Type | TSSOP | |
Pin Count | 20 | |
Number of Elements per Chip | 8 | |
Maximum Propagation Delay Time @ Maximum CL | 21.5 ns @ 50 pF | |
Maximum Operating Supply Voltage | 5.5 V | |
Dimensions | 6.5 x 4.4 x 1mm | |
Minimum Operating Supply Voltage | 2 V | |
Width | 4.4mm | |
Propagation Delay Test Condition | 50pF | |
Automotive Standard | AEC-Q100 | |
Minimum Operating Temperature | -40 °C | |
Length | 6.5mm | |
Height | 1mm | |
Maximum Operating Temperature | +125 °C | |
Select all | ||
---|---|---|
Brand Toshiba | ||
Logic Family 74VHC | ||
Logic Function D Type | ||
Input Type CMOS, TTL | ||
Output Type CMOS | ||
Output Signal Type Single Ended | ||
Triggering Type Positive Edge | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 20 | ||
Number of Elements per Chip 8 | ||
Maximum Propagation Delay Time @ Maximum CL 21.5 ns @ 50 pF | ||
Maximum Operating Supply Voltage 5.5 V | ||
Dimensions 6.5 x 4.4 x 1mm | ||
Minimum Operating Supply Voltage 2 V | ||
Width 4.4mm | ||
Propagation Delay Test Condition 50pF | ||
Automotive Standard AEC-Q100 | ||
Minimum Operating Temperature -40 °C | ||
Length 6.5mm | ||
Height 1mm | ||
Maximum Operating Temperature +125 °C | ||
