Maxon Planetary Gearbox, 690:1 Gear Ratio, 3.4 Nm Maximum Torque
RS Stock No.:
774-0516
Mfr. Part No.:
370808
Manufacturer:
Maxon

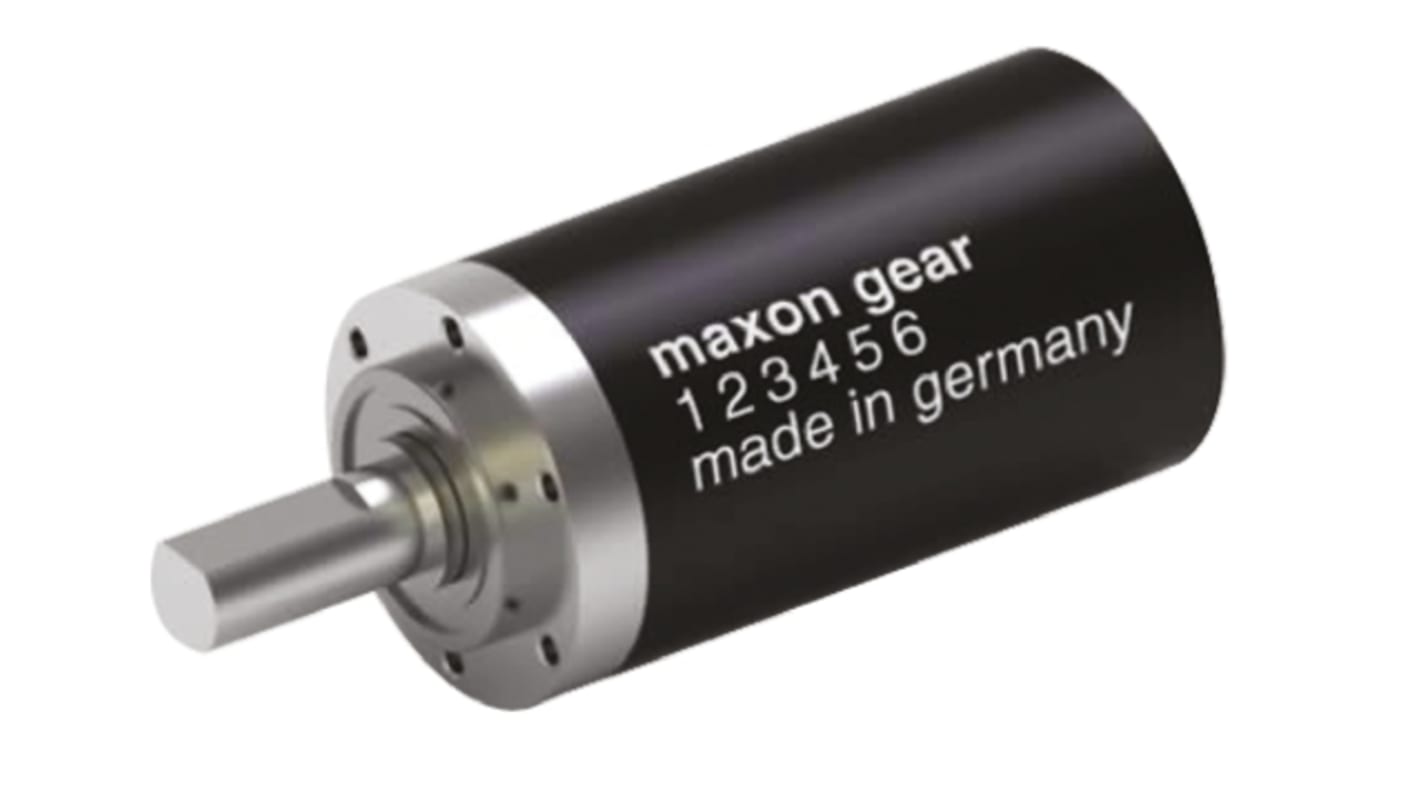

Image representative of range
View all Gearboxes
Discontinued product
RS Stock No.:
774-0516
Mfr. Part No.:
370808
Manufacturer:
Maxon
Technical data sheets
Legislation and Compliance
Product Details
Specifications
Planetary Gearhead Datasheet
RoHS Status: Not Applicable
Statement of conformity
COO (Country of Origin):
DE
22mm Planetary Gearheads - High Power
High power planetary gearhead from Maxon Motors with straight teeth gearhead and hardened stainless steel output shaft.
Attribute
Value
Gear Ratio
690:1
Gearbox Type
Planetary
Maximum Output Torque
3.4 Nm
Shaft Diameter
3.2mm
Diameter
22 mm
Overall Length
62.1mm
Power Rating
8.8 W
