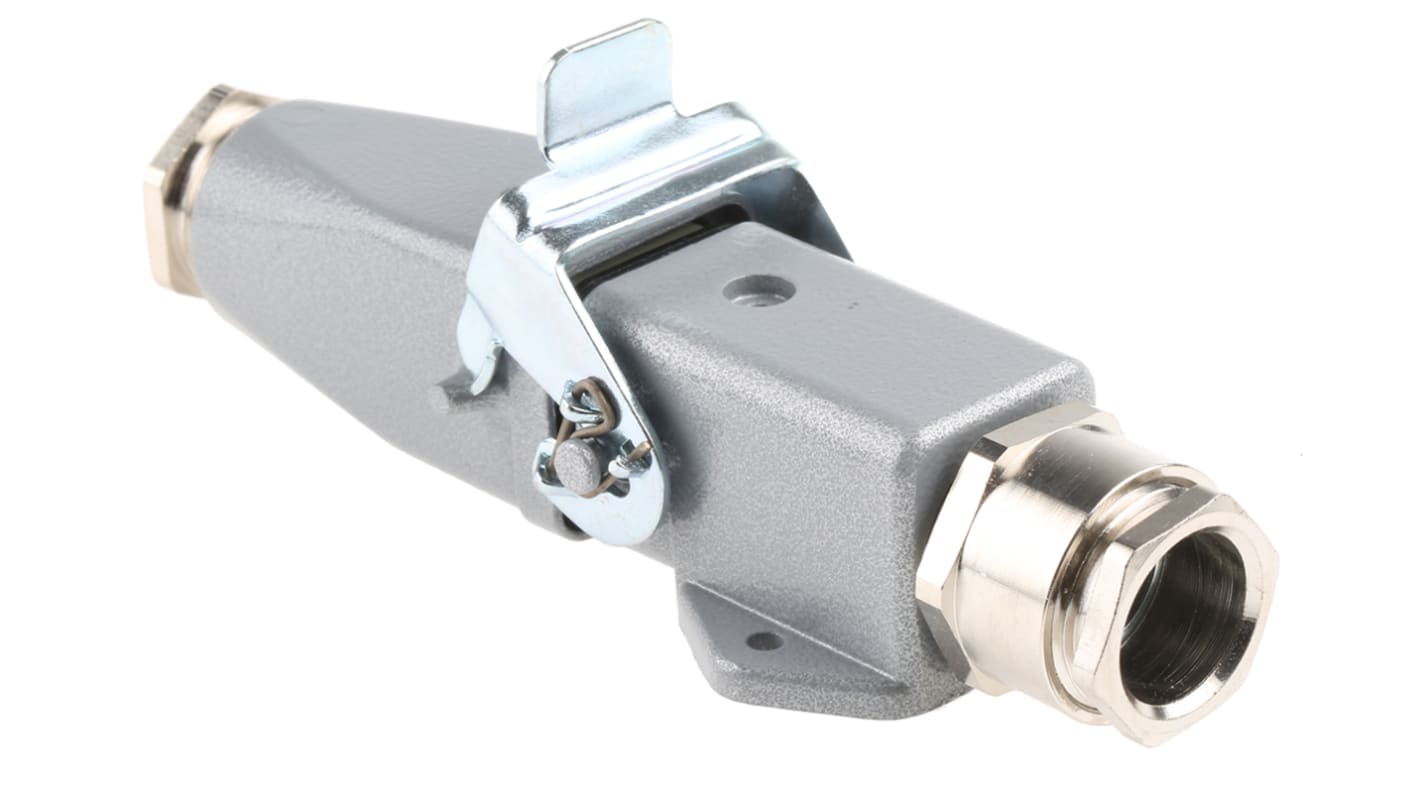

EPIC Connector Set, 3 Way, 10A, Female to Male, H-A, 600 V

This heavy-duty power connector features a three-contact arrangement designed for robust industrial applications. With a current rating of 10A and a voltage rating of 600V, it is ideal for high-voltage connections. The connector includes a top-entry body orientation and accommodates an M20 thread size, simplifying installation.

• Female to male connector configuration for versatile connections
• Screw termination method allows easy assembly and maintenance
• Constructed from copper alloy for improved conductivity
• Multi-row design optimises space

• Used in automation systems requiring consistent power connectivity
• Suitable for electrical installations in harsh environments
• Ideal for mechanical equipment needing secure connections
• Compatible with a range of machinery in industrial settings

Yes, it is IP65 rated to offer protection against dust and water.

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
