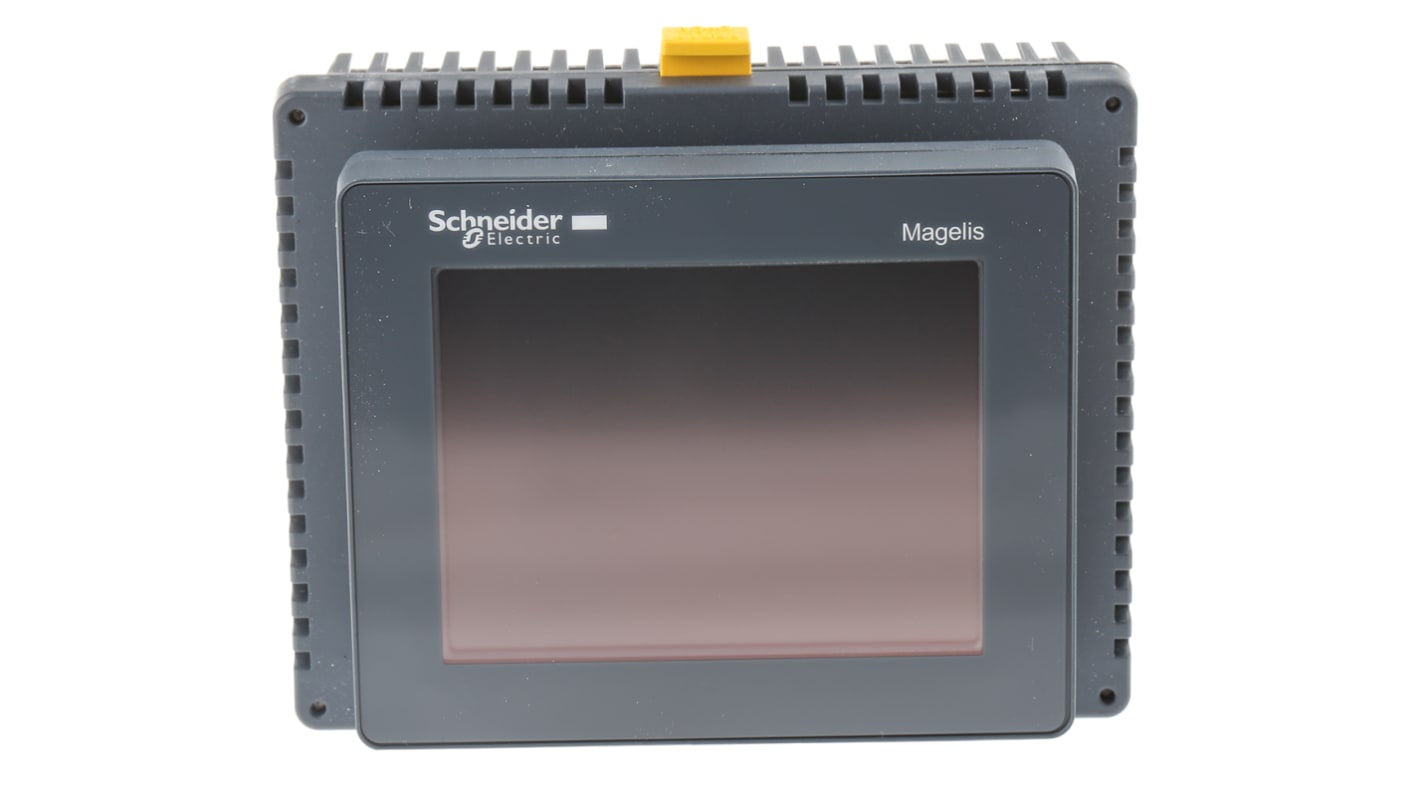

Schneider Electric STU Series Harmony STU Touch Screen HMI - 3.5 in, TFT LCD Display, 320 x 240pixels

RS Stock No.:: 711-0034
Distrelec Article No.:: 302-37-513
Mfr. Part No.:: HMISTU655
Manufacturer:: Schneider Electric

Schneider Electric STU Series Harmony STU Touch Screen HMI - 3.5 in, TFT LCD Display, 320 x 240pixels

Price Each**

€613.99

(exc. VAT)

€755.21

(inc. VAT)

6 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 +	€613.99

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 711-0034
Distrelec Article No.:: 302-37-513
Mfr. Part No.:: HMISTU655
Manufacturer:: Schneider Electric

Schneider Electric Magelis STO & STU HMI Touch Panel - HMISTU

Schneider Electric Magelis STO & STU HMI touch panels are the end result of innovative engineering, representing the key to total integrated automation. performing HMI tasks (human-machine interface) of higher complexities is the main function of the module. Providing users with the ultimate convenience and automation solution for a multitude of applications.

Thanks to its “pushbutton” style mounting system, Magelis STU fits anywhere on machines or enclosures. In addition to the standard RJ45 serial link, the Magelis STU also features an embedded Ethernet connection for quicker, more extensive communication (via Modbus TCP, Ethernet IP and Profinet protocols for example) offering more services (such as Web Gate and e-mail).

Features & Benefits

High definition colour screen TFT QVGA 3.5’’

3.5" QVGA resolution, 65K colours, touch screen graphic terminal, configured by Vijeo Designer

Resolution: 200 x 80 pixels

No tools are required to install Magelis STO and STU panels.

Compact, they can be mounted directly on the machine frame or in an enclosure.

After spring clip technology, the 22" diameter “pushbutton” mounting system which eliminates the enclosure cut-out

No batteries required, backlit by an LED

Removable power connector

USB memory stick for application downloads

Remote control with the Web Gate function

The design offers ease of use and configuration with a single software program all contribute to making this range an innovative, economical and powerful

Schneider Electric STU Series Touch Screen HMI, 320 x 240 pixels Display Resolution, 24VDC Supply Voltage - HMISTU655

This advanced touch screen HMI is designed to enhance productivity in automation and electronics industries. With features like a colour TFT LCD display and a powerful RISC ARM9 processor, this device provides a user friendly interface for efficient operation. The IP20 & IP65 rating ensures durability, making it suitable for various environments.

Features & Benefits

• Vivid colour TFT LCD display for clear visuals
• IP20 & IP65 rating for protection in diverse settings
• RISC ARM9 processor for fast and reliable performance
• 3.5 inch screen with 320 x 240 resolution for precise display
• 24V dc supply voltage for consistent power
• USB 2.0 port for easy connectivity to other devices

Applications

• Used for machine manufacturing solutions in industrial and infrastructure sectors
• Ideal for automation processes in the electronics industry
• Suitable for controlling equipment in the mechanical field

Can it be used for machine manufacturing solutions in various industries?

Yes, the touch screen HMI is versatile and ideal for automation in different sectors.

Will it provide a clear display with the colour TFT LCD screen?

Yes, the vibrant display ensures clear visuals for effective monitoring.

Is it easy to connect to other devices with the USB 2.0 port?

Yes, the USB port allows seamless connectivity for enhanced functionality.

Schneider Electric Magelis STO-STU

The new Magelis STO and STU boost the Magelis Small Panels range: more flexibility, more communication, easy and fast revolutionary mounting system. Powered by Vijeo Designer, they bring a cost-effective solution, especially to the machine builders.

Attribute	Value
Manufacturer Series	STU
Product Range	Harmony STU
Display Type	TFT LCD
Manufacturer Part No.	HMISTU655
Display Resolution	320 x 240pixels
Number of Ports	3
Port Type	COM1, USB 2.0
Processor Type	RISC ARM9
Processor Speed	333MHz
Onboard Memory	128 (Back Up) kB, 16 (Application) MB
Backlighting	Yes
Display Size	3.5 in
IP Rating	IP20, IP65
Better World Verification	Green Premium
Better World Product	Yes
Dimensions	118 x 98.15 x 55.3 mm
Minimum Operating Temperature	0°C
Length	118mm
Depth	55.3mm
Width	98.15mm
Maximum Operating Temperature	+50°C
Display Colour	Colour
Supply Voltage	24 V dc
Hazardous Area Certification	ATEX
