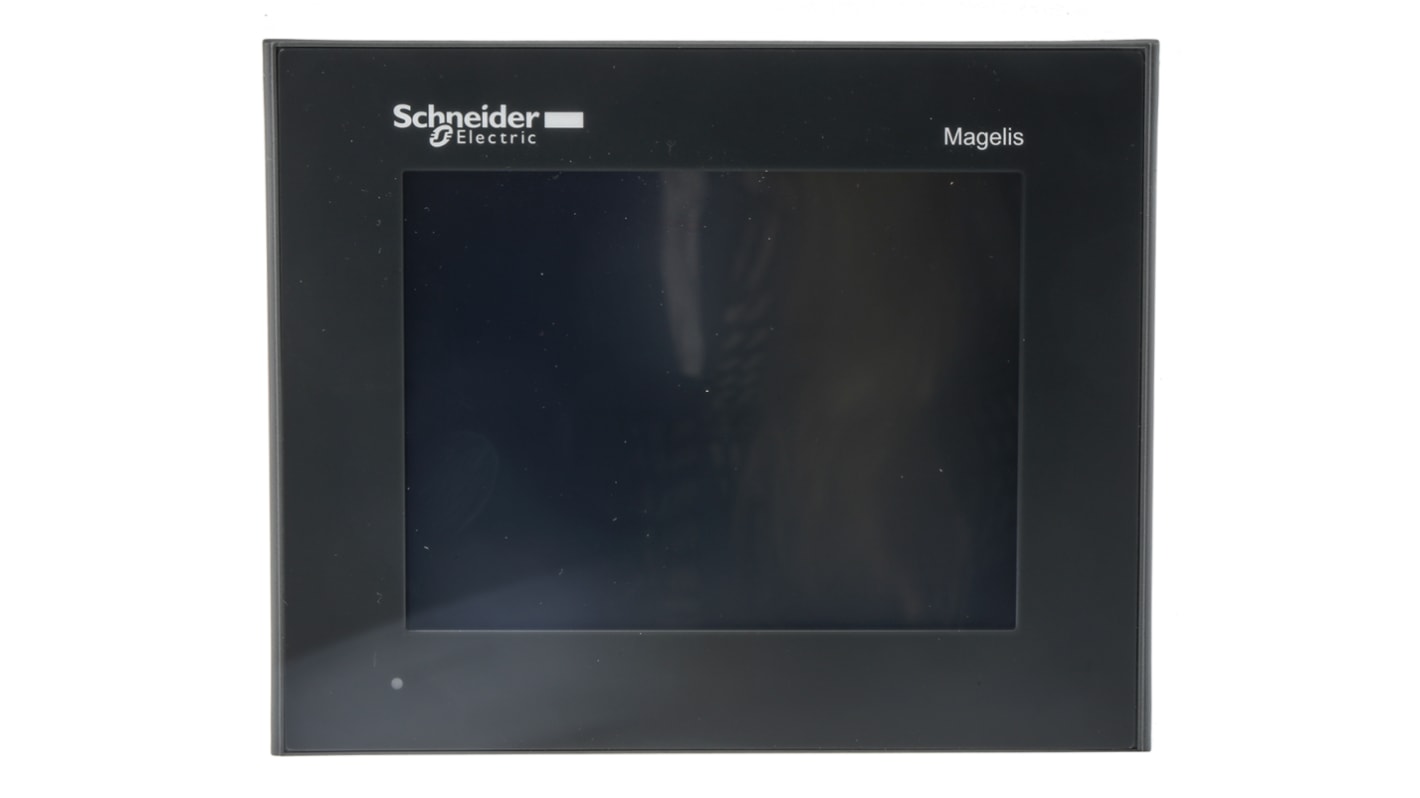

Schneider Electric Magelis GTO Touch Screen HMI - 5.7 in, TFT Display, 320 x 240pixels

RS Stock No.:: 781-5878
Distrelec Article No.:: 303-04-738
Mfr. Part No.:: HMIGTO2300
Manufacturer:: Schneider Electric

Schneider Electric Magelis GTO Touch Screen HMI - 5.7 in, TFT Display, 320 x 240pixels

Price Each**

€990.44

(exc. VAT)

€1,218.24

(inc. VAT)

14 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 +	€990.44

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 781-5878
Distrelec Article No.:: 303-04-738
Mfr. Part No.:: HMIGTO2300
Manufacturer:: Schneider Electric

Schneider Electric Magelis GTO HMI Touch Panel - HMIGTO

Schneider Electric Magelis GTO HMI touch panels are the end result of innovative engineering, representing the key to total integrated automation. performing HMI tasks (human-machine interface) of higher complexities is the main function of the module. Providing users with the ultimate convenience and automation solution for a multitude of applications.

Features & Benefits

The Magelis operator dialogue terminals communicate with automation system equipment via a serial link or by means of integration into an Ethernet TCP/IP architecture

Schneider Electric Magelis series feature terminals that have an integrated RS 232 or RS 422/485 asynchronous serial link on-board

To offer ease of use with PLC's, the use of the Uni-TE Modbus protocol makes it easy to set up communication

Displays test messages, graphic objects and synoptic views as well as control and configuration of data

Has an ingress protection rating of IP65, this means that the HMI display is fully protected against dust and ingress of any other particles. This protection rating also means that the display is protected against low-pressure jets from any angle

The interface and structure have been created and designed with customers best interest in mind, they offer high-performance visualisation applications at machine-level

These multi-touch, cost-effective HMI displays are a great solution for operator control and monitoring

Intelligent response to complicated processes and stringent requirements - built-in functionality that facilitates the operation of plants and machines

A range of colours screen terminals (TFT technology)

Magelis GTO Advanced Panels feature optimized information and communication technologies, which, depending on the model, include a high level of communication (embedded Ethernet, multilink, Web server and FTP, e-mail), external storage of data (SD memory card and USB memory stick) for storing production data and backing up applications and management of peripherals: printers, bar code readers, etc

These HMI display terminals offer an excellent level of technical performance designed principally for use by OEM customers

The Magelis GTO optimised range has been designed in accordance with numerous standards, certifications and requirements - please refer to the technical references area for further information

Each touch screen HMI display has an LED backlight which enables energy saving

SD card slot, touch screen and much more - offering an all-in-one solution

Super easy installation and programmable

The Magelis device is resistive to hot environments they can be used in temperatures up to 55°C

Common Applications

Compact machines, Handling systems, Food and beverage machines and Pharmaceutical industry

Attribute	Value
Product Range	Magelis GTO
Display Type	TFT
Manufacturer Part No.	HMIGTO2300
Display Resolution	320 x 240pixels
Number of Ports	5
Port Type	2 x COM2, 2 x USB 2.0, COM1
Processor Type	RISC
Processor Speed	333MHz
Onboard Memory	64 MB
Display Size	5.7 in
Backlighting	Yes
Better World Verification	Green Premium
IP Rating	IP20, IP65
Better World Product	Yes
Supply Voltage	24 V dc
Display Colour	Colour
Width	137mm
Length	169.5mm
Depth	59.5mm
Dimensions	169.5 x 137 x 59.5 mm
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+50°C
