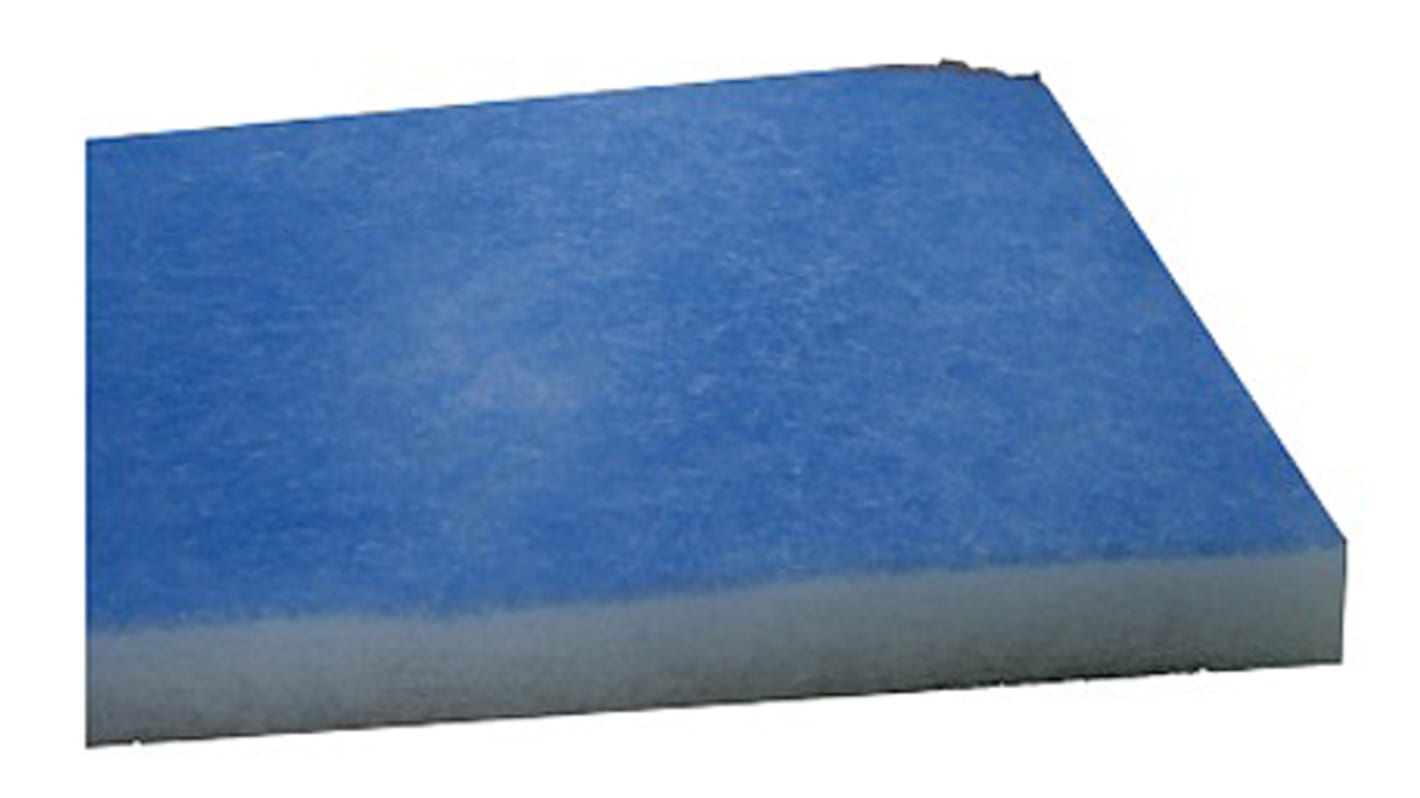

RS PRO Pad Filter, PET Media, G4 Grade, 594 x 594 x 45mm

  • RS Stock No. 730-2921
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS PRO Pad Filter Sheets, Pads and Frames

Polyester Air Filter Pads include a wadding made of 100% hollow spiral crimped polyester fibres. Hollow spiral crimped polyester is ideal for durability, able to hold large amounts of air whilst also being lightweight. This air filter media is thermally bonded by means of bi-component fibres and calibrated to a certain thickness.

It is available in four common sizes panel filter sizes: 730-2918, 20x16x2 in,730-2912, 20x20x2 in, 730-2921, 24x24x2 in, 730-2924, 25x20x2 in.

The Polyester Filter Sheet has a wadding made of 100% hollow spiral crimped polyester fibres also. This air filter media is thermally bonded by means of bi-component fibres and calibrated to a certain thickness. DIN 53438 flammability. This sheet is 2.5 x 2 m and 50 mm thick and can be cut to size as required.

Features and Benefits:

• Polyester media
• G4 grade
• Spiral crimped polyester fibres
• Thermally bonded
• Available in varying sizes

How do air filters work?

Used in heating, ventilation and air conditioning, HVAC filters are generally made of gauze like material. This provides a small passage for air to flow through whilst also stopping larger particles. Standard air filters are designed with efficiency in filtration, as they collect debris and dust. Some more complex filters remove odours and feature a charcoal element. Preventing debris from entering a ventilation, cooling or heating system is vital in ensuring longevity as foreign objects in these types of systems can cause them to overheat and cease functioning.

Why change HVAC air filters?

If these types of filters are not properly attended to, they can become clogged. This can prevent air flow possibly causing the system to overheat and can eventually lead to equipment break down or fires. Changing air filters regularly is vital for health and safety and a HVAC systems longevity.

Specifications
Attribute Value
Filter Type Pad
Nominal Dimensions 24 x 24 x 2in
Actual Dimensions 594 x 594 x 45mm
Filter Grade G4
Initial Pressure Drop 69Pa
Final Pressure Drop 250Pa
Colour White
Case Material Galvanised Steel
Media Material PET
Nominal Width 24in
Nominal Height 24in
Actual Height 594mm
Nominal Dimensions Height x Width 24 x 24 x 2in
Actual Width 594mm
Actual Depth 45mm
Nominal Depth 2in
47 In stock for delivery within 2 working days
Unit of sale: 1 Pack of 10
41.54
(exc. VAT)
51.09
(inc. VAT)
Pack(s)
Per Pack
Per unit*
1 +
€41.54
€4.154
*price indicative
