TE Connectivity 16-Way IDC Connector Plug for Panel Mount, 2-Row

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

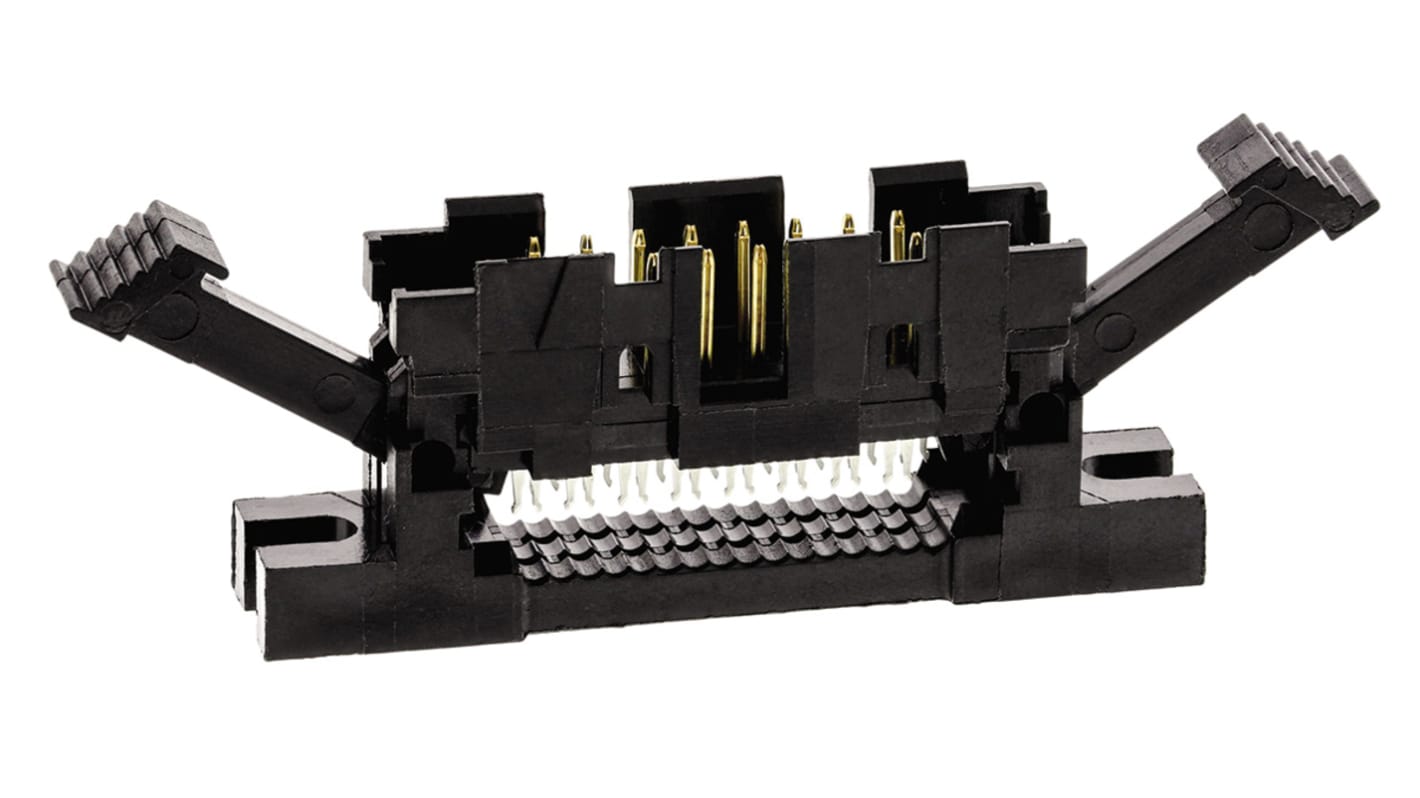

TE Connectivity AMP-Latch 2.54mm Universal I/O IDC Ribbon Cable Pin Connectors

AMP-Latch 2.54mm universal I/O pin IDC ribbon cable connectors made from flame retardent UL 94V-0 rated black thermoplastic
Part numbers x-111446-x are without mounting ears and latches
Part numbers x-111504-x are without mounting ears with long latches
Part numbers x-111506-x have slotted mounting ears and long latches
Part numbers x-5111448-x have slotted mounting ears and no latches
These AMP-Latch 2.54mm universal IDC plug pin connectors mate with Novo receptacles and female socket connectors.

Specifications
Attribute Value
Number of Contacts 16
Number of Rows 2
Gender Male
Pitch 2.54mm
Mounting Type Panel Mount
Body Orientation Right Angle
Termination Method IDC
Current Rating 1A
Contact Plating Gold over Nickel, Gold over Palladium Nickel
Series AMP-LATCH
Minimum Operating Temperature -65°C
Maximum Operating Temperature +105°C
Voltage Rating 250 V ac
Contact Material Phosphor Bronze
Housing Material Thermoplastic
43 In stock for delivery within 2 working days
Unit of sale: Each
7.50
(exc. VAT)
9.22
(inc. VAT)
units
Per unit
1 - 24
€7.50
25 - 74
€5.92
75 - 199
€5.61
200 - 399
€5.33
400 +
€5.07
