Kyoritsu K6024PV Insulation Resistance Tester, 250V Min, 1000V Max, 2000MΩ Max, CAT IV
- RS Stock No.:
- 253-2618
- Mfr. Part No.:
- K6024PV
- Manufacturer:
- Kyoritsu
Temporarily out of stock - back order for despatch 14-05-2024, delivery within 2 working days
Added
Price Each
€1,055.07
(exc. VAT)
€1,297.74
(inc. VAT)
| Units | Per unit |
| 1 + | €1,055.07 |
- RS Stock No.:
- 253-2618
- Mfr. Part No.:
- K6024PV
- Manufacturer:
- Kyoritsu
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

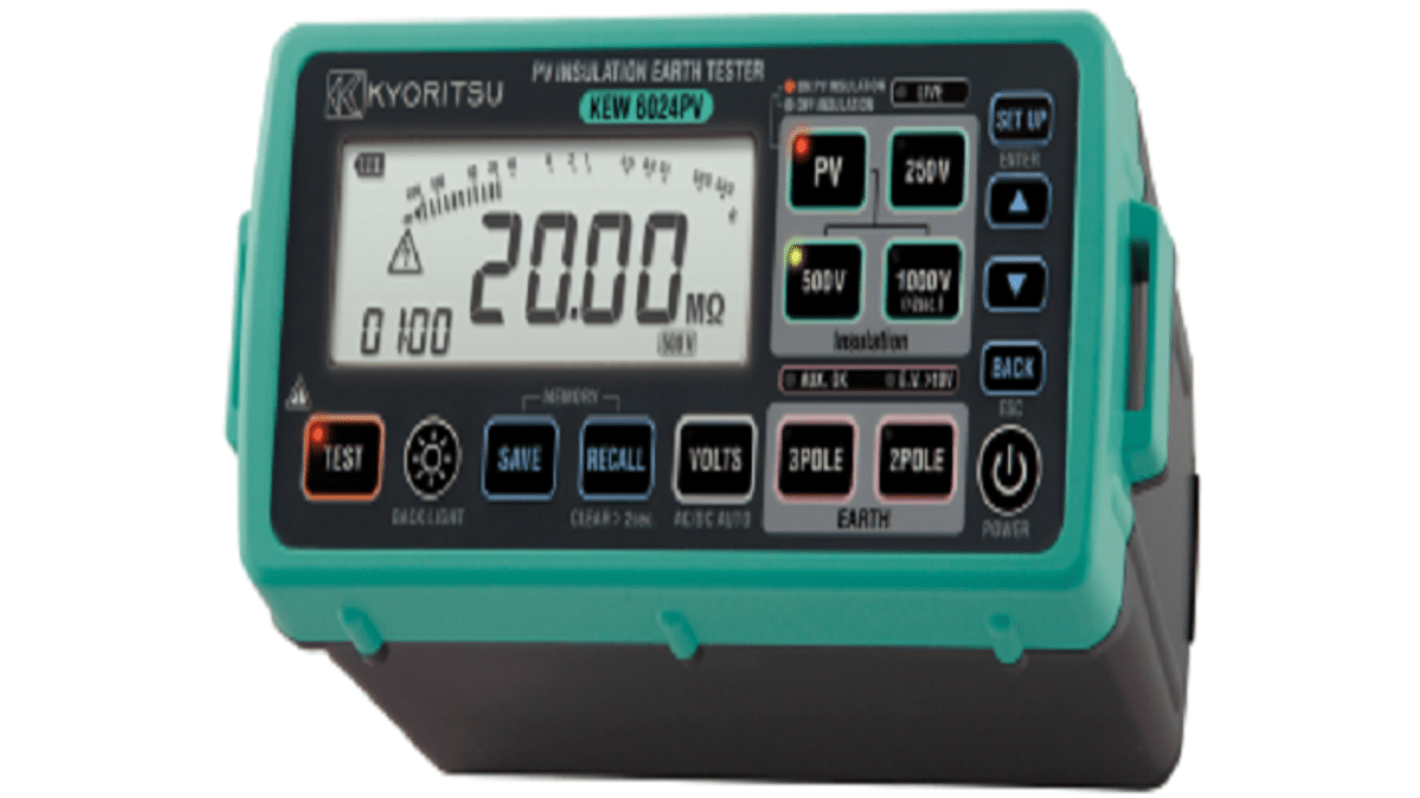

The Kyoritsu earth and insulation tester suitable for the photovoltaic panel market correct measuring for insulation resistance even if the panel is under generating power. It has waterproof design so can measure under the bad weather condition.
Memory function up to 1000 data
Luminescence button and backlight
Luminescence button and backlight
Specifications
Attribute | Value |
|---|---|
| Model Number p | K6024PV |
| Tester Type | Insulation Resistance Tester |
| Maximum Test Voltage | 1000V |
| Minimum Test Voltage | 250V |
| Maximum Insulation Resistance Measurement | 2000MΩ |
| Display Type | LCD |
| Test Current | 1.2mA |
| Power Source | Alkaline AA |
| Battery Type | LR6, R6P Battery |
| Battery Life | 6 h |
| Minimum Operating Temperature | -20 ℃ |
| Maximum Operating Temperature | +55 ℃ |
| Safety Category | CAT IV 300V |
| Safety Category Voltage | 300V |
| Safety Category Level | CAT IV |
| Width | 184mm |
| Height | 84mm |
| Weight | 900g |
| Length | 133 mmmm |
| Dimensions | 84 x 184 x 133mm |
