Select all	Attribute	Value
	Brand	onsemi
	Logic Function	Inverter
	Input Type	Schmitt Trigger
	Number of Elements per Chip	6
	Schmitt Trigger Input	Yes
	Maximum Propagation Delay Time @ Maximum CL	100 ns @ 10 V, 250 ns @ 5 V, 80 ns @ 15 V
	Maximum High Level Output Current	-4.2mA
	Maximum Low Level Output Current	4.2mA
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	14
	Logic Family	4000
	Dimensions	8.75 x 4 x 1.5mm
	Maximum Operating Supply Voltage	18 V
	Height	1.5mm
	Minimum Operating Temperature	-55 °C
	Width	4mm
	Length	8.75mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Temperature	+125 °C
	Minimum Operating Supply Voltage	3 V

	Select all
	Brand onsemi
	Logic Function Inverter
	Input Type Schmitt Trigger
	Number of Elements per Chip 6
	Schmitt Trigger Input Yes
	Maximum Propagation Delay Time @ Maximum CL 100 ns @ 10 V, 250 ns @ 5 V, 80 ns @ 15 V
	Maximum High Level Output Current -4.2mA
	Maximum Low Level Output Current 4.2mA
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 14
	Logic Family 4000
	Dimensions 8.75 x 4 x 1.5mm
	Maximum Operating Supply Voltage 18 V
	Height 1.5mm
	Minimum Operating Temperature -55 °C
	Width 4mm
	Length 8.75mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Temperature +125 °C
	Minimum Operating Supply Voltage 3 V

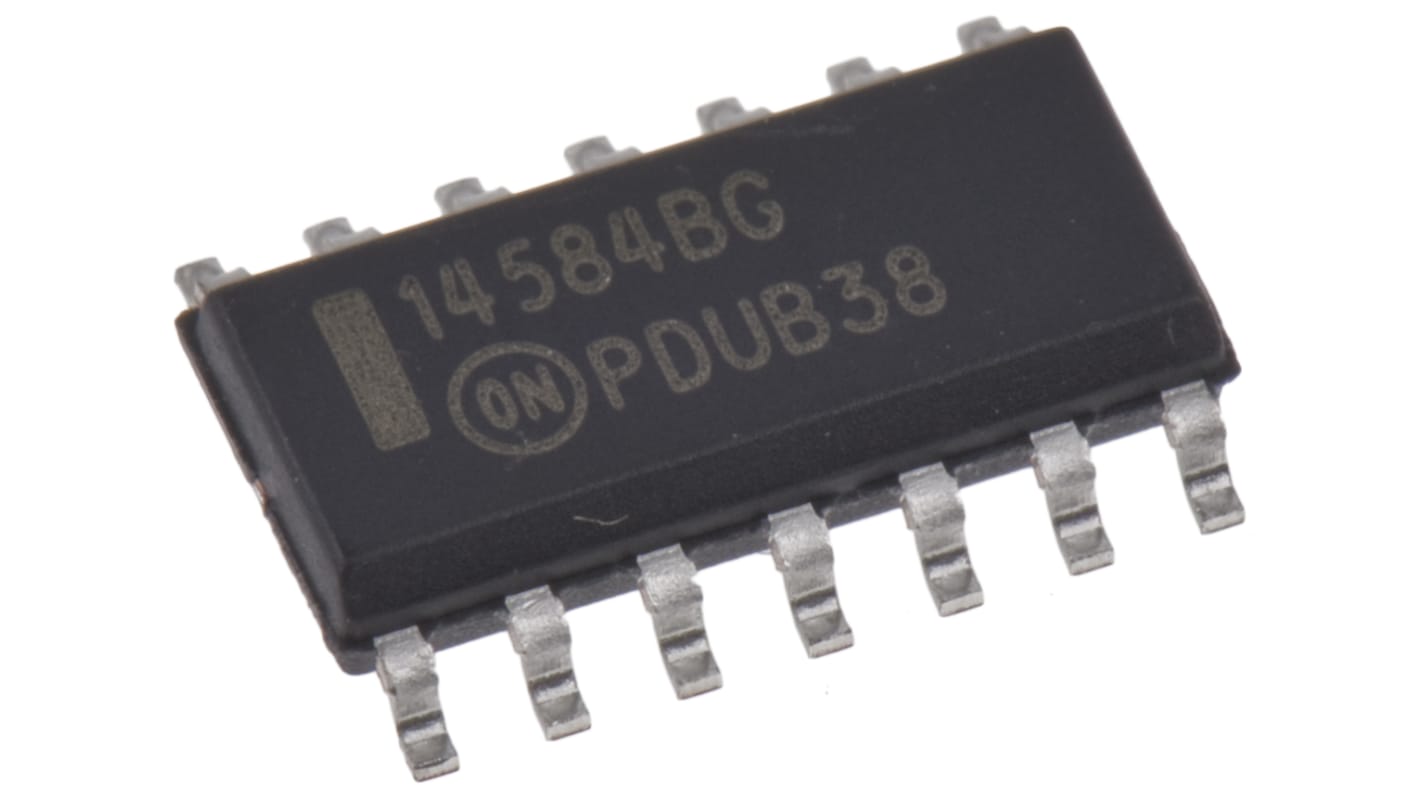

onsemi MC14584BDG Hex Schmitt Trigger Inverter, 14-Pin SOIC

Alternative

4000 Series Inverters & Buffers, ON Semiconductor
