Units	Per unit	Per Pack*
25 - 75	€0.508	€12.70
100 - 225	€0.438	€10.95
250 +	€0.38	€9.50

Select all	Attribute	Value
	Brand	onsemi
	Logic Function	NAND
	Input Type	Schmitt Trigger
	Output Type	Single Ended
	Number of Elements per Chip	4
	Schmitt Trigger Input	Yes
	Maximum Propagation Delay Time @ Maximum CL	13 ns @ 50 pF
	Maximum High Level Output Current	-24mA
	Maximum Low Level Output Current	24mA
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	14
	Logic Family	ACT
	Dimensions	8.75 x 4 x 1.5mm
	Height	1.5mm
	Maximum Operating Supply Voltage	5.5 V
	Length	8.75mm
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
	Propagation Delay Test Condition	50pF
	Width	4mm
	Minimum Operating Supply Voltage	4.5 V

	Select all
	Brand onsemi
	Logic Function NAND
	Input Type Schmitt Trigger
	Output Type Single Ended
	Number of Elements per Chip 4
	Schmitt Trigger Input Yes
	Maximum Propagation Delay Time @ Maximum CL 13 ns @ 50 pF
	Maximum High Level Output Current -24mA
	Maximum Low Level Output Current 24mA
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 14
	Logic Family ACT
	Dimensions 8.75 x 4 x 1.5mm
	Height 1.5mm
	Maximum Operating Supply Voltage 5.5 V
	Length 8.75mm
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C
	Propagation Delay Test Condition 50pF
	Width 4mm
	Minimum Operating Supply Voltage 4.5 V

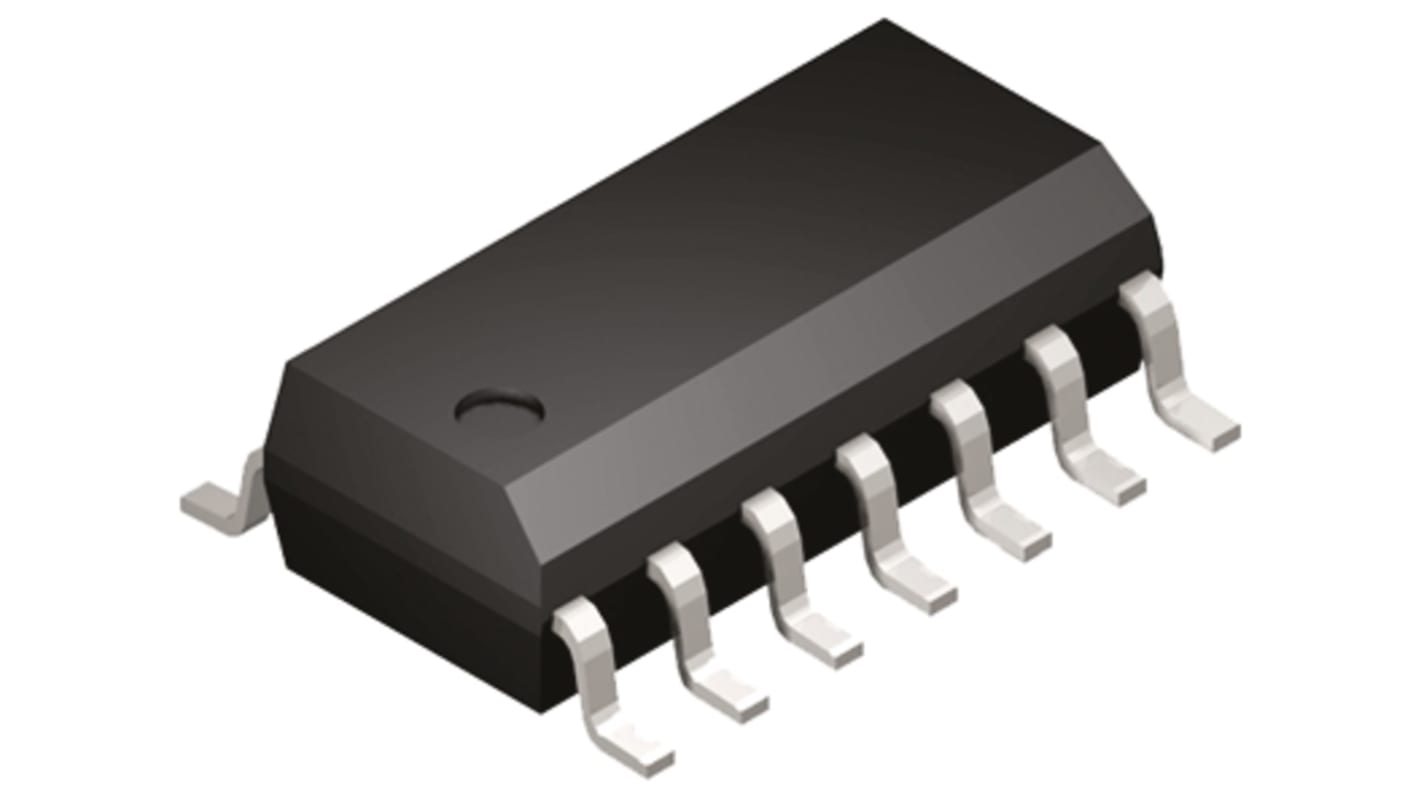

onsemi MC74ACT132DG Quad Schmitt Trigger Schmitt Trigger Inverter, 14-Pin SOIC

MC74ACT Family, ON Semiconductor
