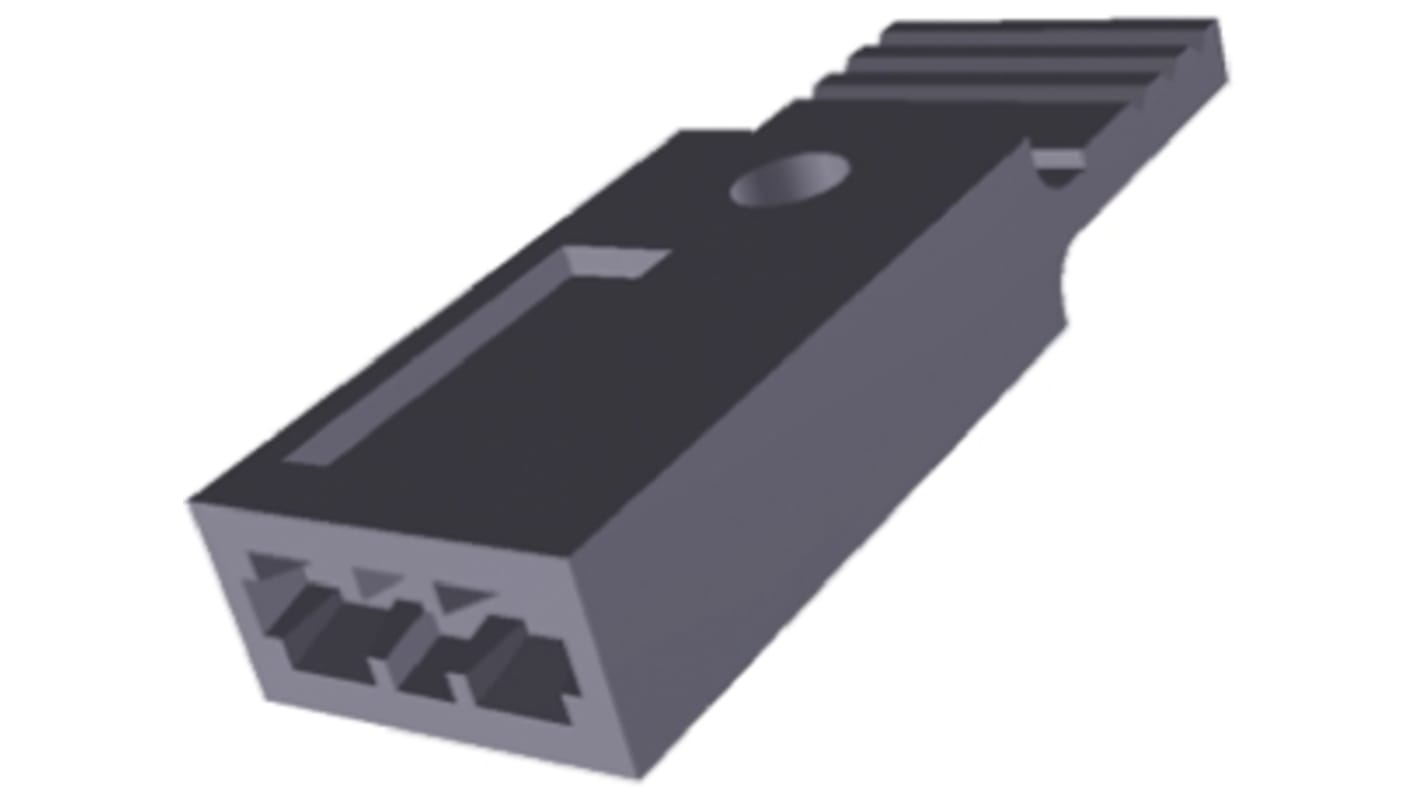

TE Connectivity, AMPMODU NOVO Shunt Female Straight Black Closed Top, Handle 2 Way 1 Row 2.54mm Pitch
- RS Stock No.:
- 718-8554
- Mfr. Part No.:
- 1-880584-2
- Manufacturer:
- TE Connectivity
Temporarily out of stock - back order for despatch 28-08-2024, delivery within 2 working days
Added
Price Each (In a Pack of 5)
€0.566
(exc. VAT)
€0.696
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 95 | €0.566 | €2.83 |
| 100 - 495 | €0.408 | €2.04 |
| 500 - 995 | €0.358 | €1.79 |
| 1000 - 2495 | €0.294 | €1.47 |
| 2500 + | €0.264 | €1.32 |
| *price indicative | ||
- RS Stock No.:
- 718-8554
- Mfr. Part No.:
- 1-880584-2
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
TE Connectivity AMPMODU 2 Position Novo Low Profile Shunts
AMPMODU 2 position Novo shunts with a 2.54mm centerline. These Novo 2.54mm shunts have a low profile, open or closed top design and are made from black UL 94V-0 thermoplastic housings. Versions of these AMPMODU low profile jumpers or shunts are available with handles for ease of manual insertion and removal.
2.54mm TE Connectivity AMPMODU™ Range – Style 2 (European)
A wide range of modular interconnects on the industry standard 2.54mm (0.1in ) Grid, addressing applications across all industry sectors. Designed for wire to board or board to board connection, including stacking.
Specifications
Attribute | Value |
|---|---|
| Type | Closed Top, Handle |
| Number of Contacts | 2 |
| Pitch | 2.54mm |
| Gender | Female |
| Colour | Black |
| Number of Rows | 1 |
| Length | 5.1mm |
| Width | 2.5mm |
| Depth | 8.9mm |
| Series | AMPMODU NOVO |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
| Orientation | Straight |
| Maximum Contact Resistance | 15mΩ |
