Key Switch, DP-CO, 3 A@ 50 V dc, 5 A@ 115 V ac 2-Way, -20 → +65°C

  • RS Stock No. 665-815
  • Mfr. Part No. SRL5JS2850
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details
//media.rs-online.com/t_line/L0319815-01.gif
//media.rs-online.com/t_line/L319770-01.gif

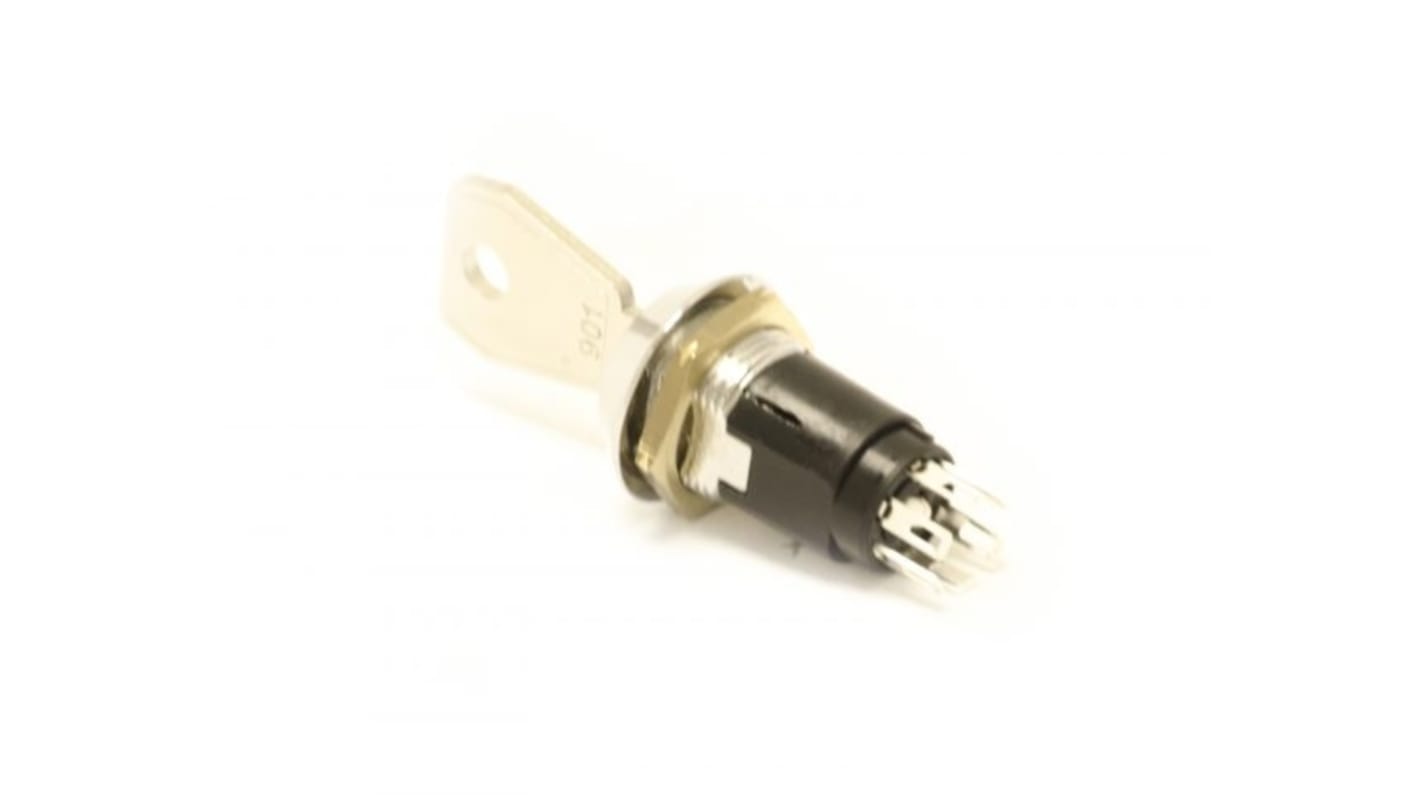

Lorlin Key Switch

The Lorlin key switch has a double pole changeover(DP-CO) contact configuration. It is a miniature, 2-position, key switch with silver-plated brass contacts It can be easily installed into a panel from the front. This key switch also benefits from a small depth behind the panel of less than 30mm. The common key type makes it easy to obtain spare keys. It also has double entries with withdrawal positions at 1 and 3.
The switch has contact current rating of 3A at 50VDC and 5A at 115VAC.

Features and Benefits

Solder terminal
Case material is glass-fibre reinforced PA
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is silver-plated brass
Operating temperature ranges between -20°C and 65°C
Mechanical life of 10,000 operations

Applications

Panel builders
Control panels

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications
Attribute Value
Number of Positions 2
Contact Configuration DP-CO
Key Trapping No
Contact Current Rating 3 A@ 50 V dc, 5 A@ 115 V ac
Key Type Common
Terminal Type Solder
Case Material Glass Fibre Reinforced PA
Depth Behind Panel 22.4mm
Key Index Angle 60°
Contact Material Silver Plated Brass
Operating Temperature Range -20 → +65°C
Minimum Operating Temperature -20°C
Mechanical Life 10000Operations
Maximum Operating Temperature +65°C
21 In stock for delivery within 1 working days
Unit of sale: Each
7.98
(exc. VAT)
9.66
(inc. VAT)
units
Per unit
1 - 9
€7.98
10 - 49
€7.26
50 - 99
€5.12
100 - 249
€4.71
250 +
€4.39
