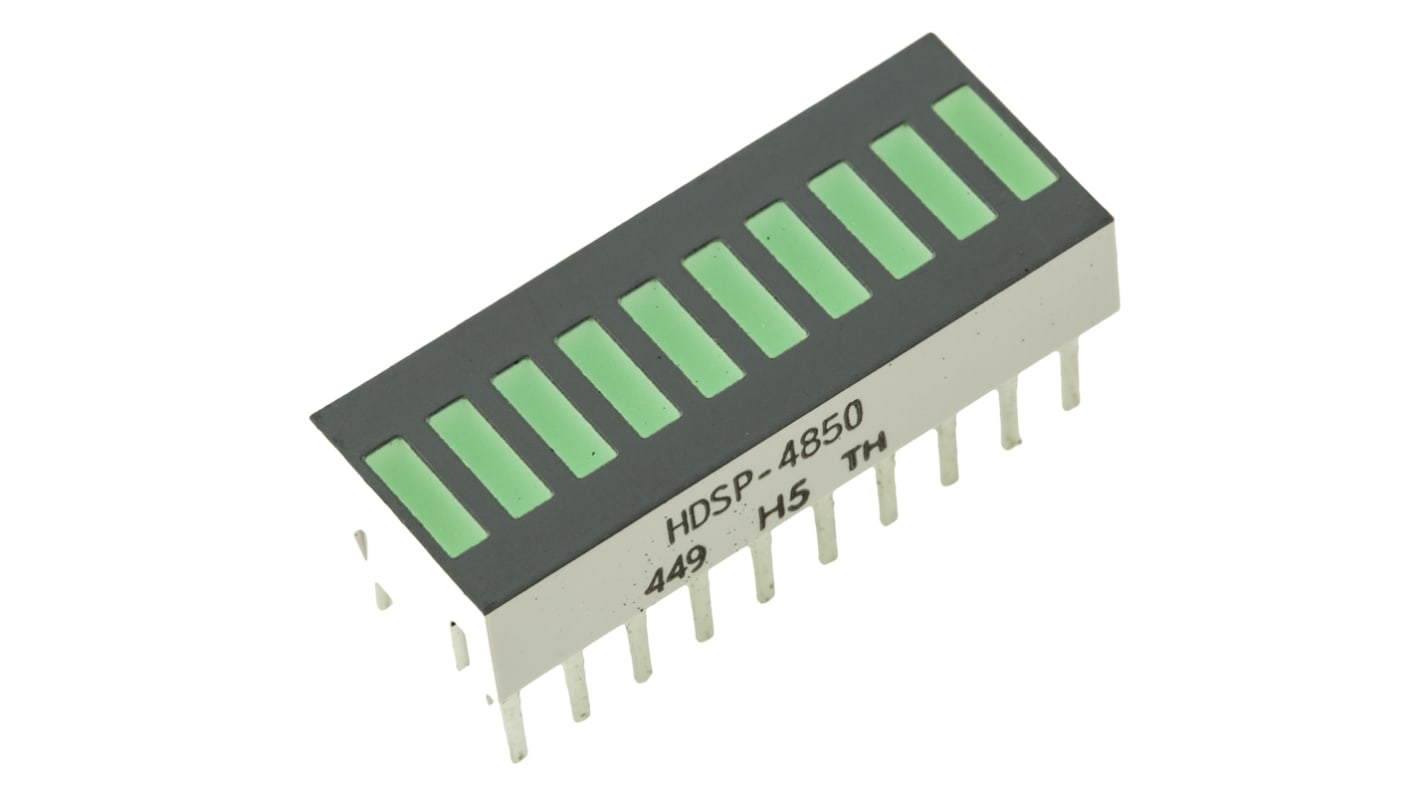

HDSP-4850 Broadcom Light Bar LED Display, Green 1.9 mcd

RS Stock No.:: 171-1385
Mfr. Part No.:: HDSP-4850
Manufacturer:: Broadcom

HDSP-4850 Broadcom Light Bar LED Display, Green 1.9 mcd

356 In stock for delivery within 2 working days

Added

Price Each

€6.26

(exc. VAT)

€7.70

(inc. VAT)

Units	Per unit
1 - 9	€6.26
10 - 49	€5.23
50 - 99	€4.80
100 - 249	€4.27
250 +	€3.85

RS Stock No.:: 171-1385
Mfr. Part No.:: HDSP-4850
Manufacturer:: Broadcom

Technical data sheets

Legislation and Compliance

Product Details

Broadcom HLCP-X100 and HLMP-2XXX Light Bar Arrays

The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.

Features of the HLCP-X100 and HLMP-2XXX LED light bars:
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable

Caution

Observe Anti-static precautions when handling devices.

Broadcom Light Bar Arrays

Specifications

Attribute	Value
Display Type	Light Bar
LED Colours	Green
Number of Segments	10
Dominant Wavelength	571 nm
Mounting Type	Through Hole
External Depth	6.1mm
External Height	10.2mm
External Width	25.4mm
External Dimensions	10.2 x 25.4 x 6.1mm
Luminous Intensity	1.9 mcd
Colour of Face	Grey
Forward Voltage	2.1 V
Power Dissipation	105mW
Operating Temperature Range	-20 → +85°C
Forward Current	90mA
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-20°C
