HDSP-U213 Broadcom 7-Segment LED Display, CC Red 5.4 mcd RH DP 8mm
- RS Stock No.:
- 171-1895
- Mfr. Part No.:
- HDSP-U213
- Manufacturer:
- Broadcom
Temporarily out of stock - back order for despatch 27-08-2024, delivery within 2 working days
Added
Price Each (In a Tube of 20)
€2.541
(exc. VAT)
€3.125
(inc. VAT)
| Units | Per unit | Per Tube* |
| 20 - 80 | €2.541 | €50.82 |
| 100 - 180 | €2.287 | €45.74 |
| 200 + | €2.084 | €41.68 |
| *price indicative | ||
- RS Stock No.:
- 171-1895
- Mfr. Part No.:
- HDSP-U213
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details

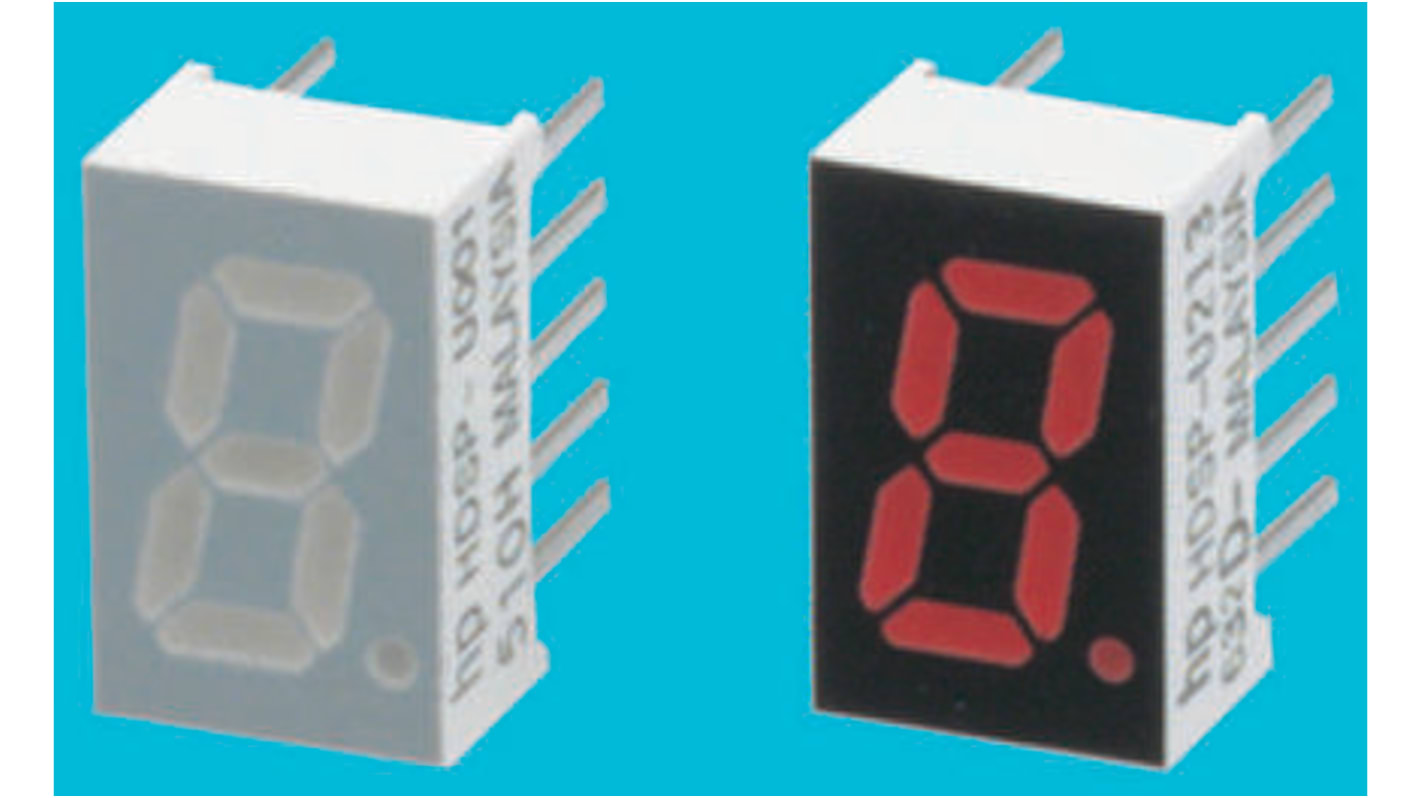

Single-digit 7-segment Red LED Displays
A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 626 nm |
| Character Width | 4mm |
| Character Height | 8mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Dimensions | 11 x 7.1 x 5mm |
| External Depth | 5mm |
| External Height | 11mm |
| External Width | 7.1mm |
| Luminous Intensity | 5.4 mcd |
| Colour of Face | Black |
| Forward Voltage | 2 V |
| Operating Temperature Range | -25 → +90°C |
| Forward Current | 30mA |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +90°C |
