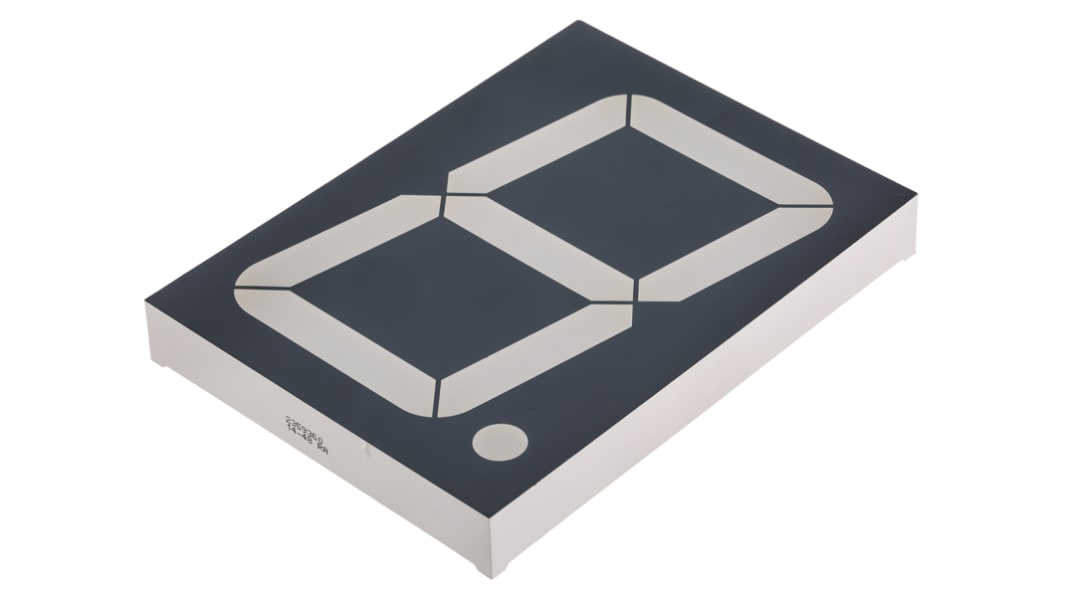

SA40-19EWA Kingbright 7-Segment LED Display, CA Red 23 mcd RH DP 101mm
- RS Stock No.:
- 235-9360
- Mfr. Part No.:
- SA40-19EWA
- Manufacturer:
- Kingbright
150 In stock for delivery within 2 working days
Added
Price Each
€28.12
(exc. VAT)
€34.59
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €28.12 |
| 10 - 49 | €26.88 |
| 50 - 99 | €26.18 |
| 100 - 249 | €25.50 |
| 250 + | €24.86 |
- RS Stock No.:
- 235-9360
- Mfr. Part No.:
- SA40-19EWA
- Manufacturer:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Kingbright Single Digit, 101 & 127mm
A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Note
A5
7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 617 nm |
| Character Width | 59.5mm |
| Character Height | 101mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 15mm |
| External Height | 122mm |
| External Dimensions | 122 x 90 x 15mm |
| External Width | 90mm |
| Luminous Intensity | 23 mcd |
| Colour of Face | Grey |
| Power Dissipation | 150 mW, 600 mW |
| Forward Voltage | 4 V, 8 V |
| Maximum Operating Temperature | +85°C |
| Forward Current | 30 mA, 60 mA |
| Operating Temperature Range | -40 → +85°C |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -40°C |
