Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Everlight
	Display Type	10 Segment
	Product Type	LED Display
	Number of Characters	10
	LED Colour	Green
	Number of Segments	10
	Dominant Wavelength	575nm
	Mount Type	Through Hole
	External Width	10.1mm
	External Depth	8mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Luminous Intensity	4.5mcd
	Colour of Face	Grey
	Standards/Approvals	No
	Power Dissipation	60mW
	Series	B1001SYGWA

	Select all
	Brand Everlight
	Display Type 10 Segment
	Product Type LED Display
	Number of Characters 10
	LED Colour Green
	Number of Segments 10
	Dominant Wavelength 575nm
	Mount Type Through Hole
	External Width 10.1mm
	External Depth 8mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Luminous Intensity 4.5mcd
	Colour of Face Grey
	Standards/Approvals No
	Power Dissipation 60mW
	Series B1001SYGWA

Datasheet - B1001SYGWA/S530-E2

COO (Country of Origin):: TW

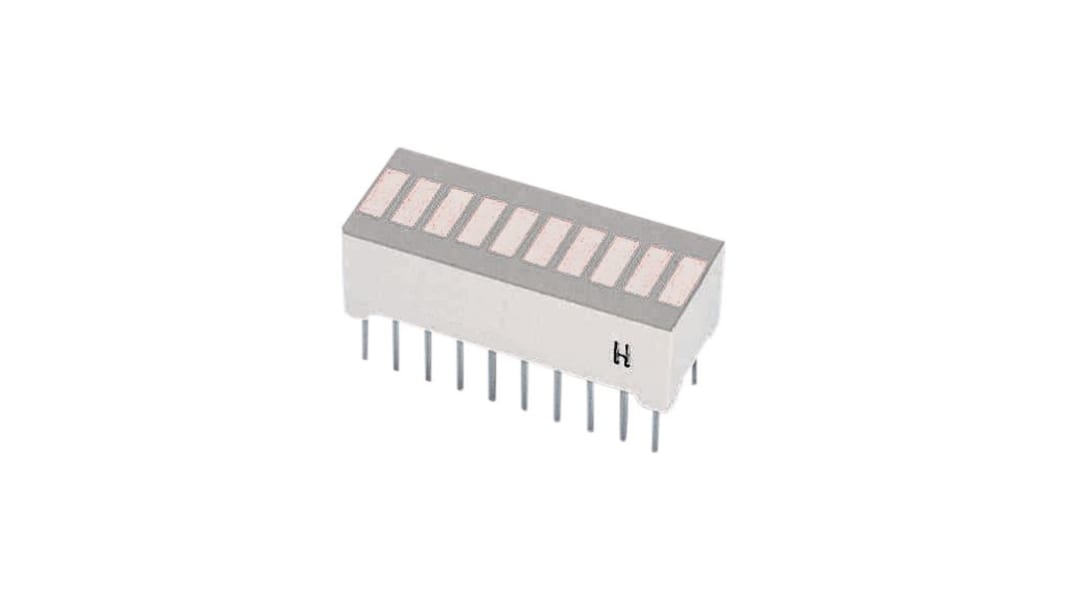

The 10 Bar Graph Displays is an industrial standard size product with low power consumption, categorized for luminous intensity. The product is Pb free and RoHS compliant, ideal for various applications such as audio equipment, instrument panels, and digital read out displays.

Industrial standard size for easy integration

Low power consumption for energy efficiency

Categorized for luminous intensity for clear visibility

Pb free and RoHS compliant for environmental friendliness

Ten-element bar graph displays designed for viewing distances up to 7 meters

Separate anodes and cathodes for each light segment for precise control

Choice of five colors offered for customization

Made with white segments and gray surface for a sleek design

B1001SYGWA/S530-E2 Everlight 10 10 Segment LED Display Green 4.5mcd
