DC-20/20CGKWA Kingbright Light Bar LED Display, Green 28000 mcd
- RS Stock No.:
- 719-2418
- Mfr. Part No.:
- DC-20/20CGKWA
- Manufacturer:
- Kingbright
3 In stock for delivery within 2 working days
Added
Price Each
€9.14
(exc. VAT)
€11.24
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €9.14 |
| 5 + | €8.59 |
- RS Stock No.:
- 719-2418
- Mfr. Part No.:
- DC-20/20CGKWA
- Manufacturer:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

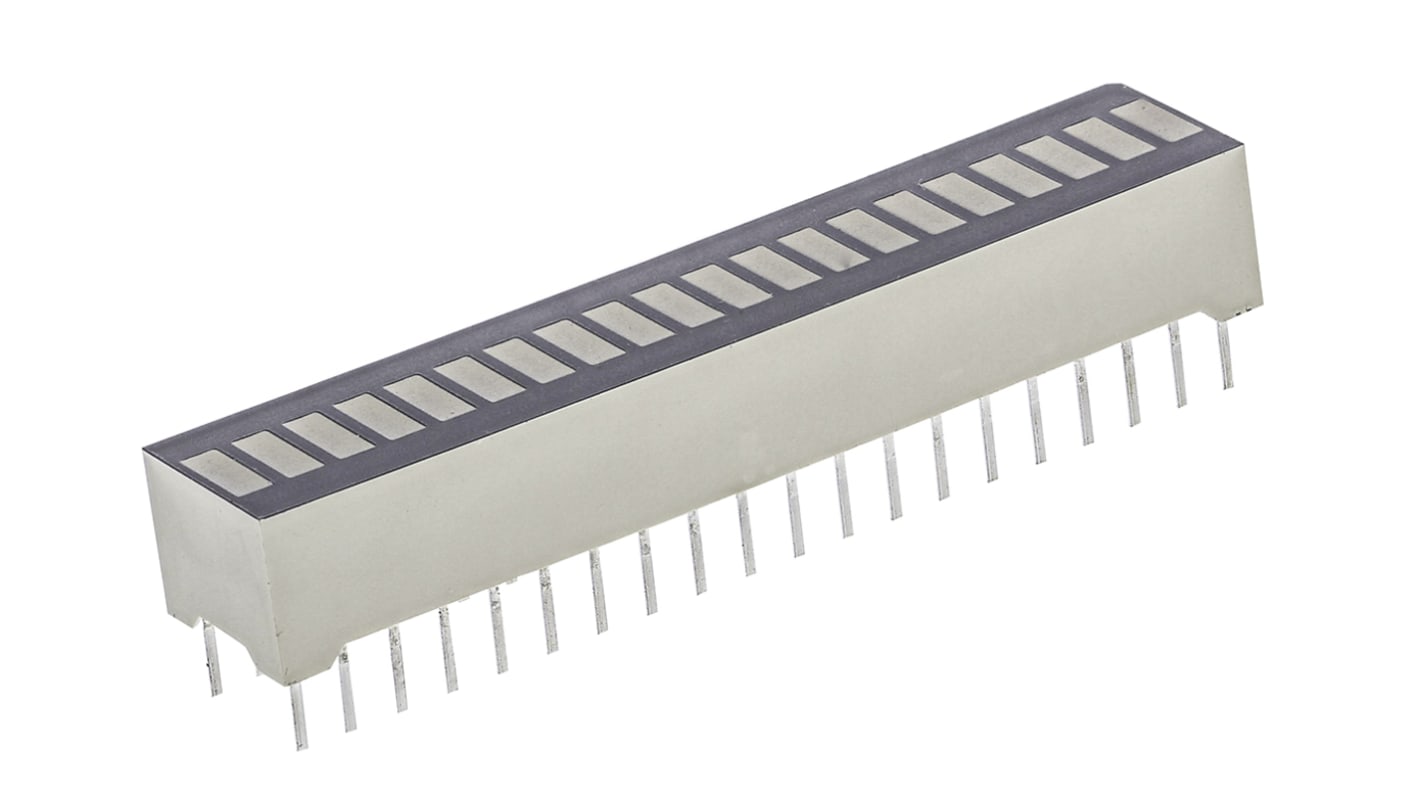

20 Segment Bar Graph Array, Kingbright
This family of bar graph arrays, from Kingbright, have 20 segments. They are through-hole mounted with a grey face and white coloured segments. These colours allow the arrays to give a higher contrast ratio. The 20 segment bar graph arrays come in a variety of single and multi colour options. They are ideal for level indicator applications.
Features of the 20 segment bar graph arrays:
Array dimensions: 50.7 x 7.5 x 8 mm
Segment dimensions: 5.08 x 1.78 mm
Low current operation
End stackable
Mechanically rugged
Array dimensions: 50.7 x 7.5 x 8 mm
Segment dimensions: 5.08 x 1.78 mm
Low current operation
End stackable
Mechanically rugged
Bar Graph Arrays
Specifications
Attribute | Value |
|---|---|
| Display Type | Light Bar |
| LED Colours | Green |
| Number of Segments | 20 |
| Dominant Wavelength | 570 nm |
| Mounting Type | Through Hole |
| External Height | 10.2mm |
| External Width | 50.7mm |
| External Dimensions | 10.2 x 50.7 x 8mm |
| External Depth | 8mm |
| Luminous Intensity | 28000 mcd |
| Colour of Face | Grey |
| Forward Voltage | 2.1 V |
| Power Dissipation | 75mW |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Forward Current | 30mA |
| Minimum Operating Temperature | -40°C |
