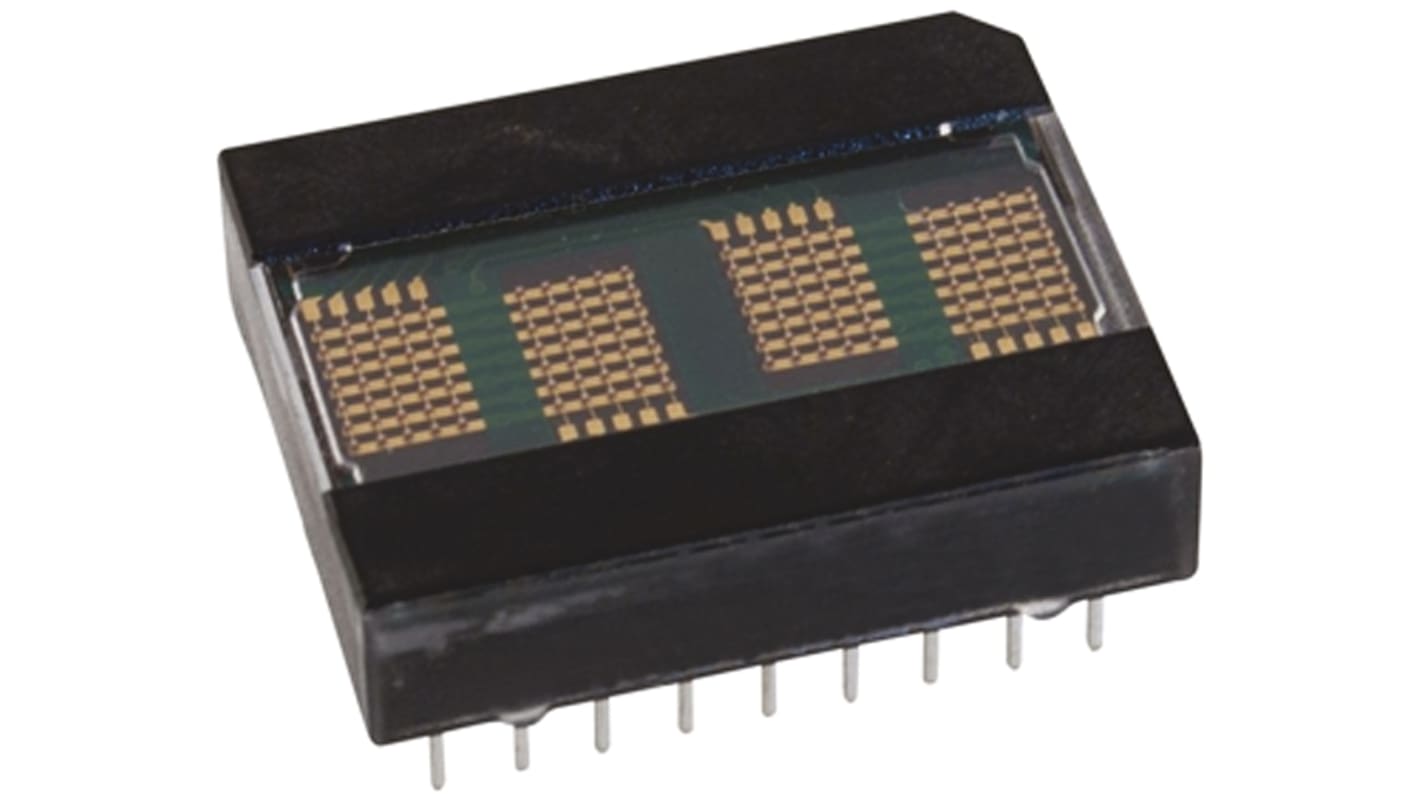

HDLG-2416 Broadcom 4 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Green 5.6 mcd 5.1mm
- RS Stock No.:
- 830-5114
- Mfr. Part No.:
- HDLG-2416
- Manufacturer:
- Broadcom
156 In stock for delivery within 2 working days
Added
Price Each
€36.55
(exc. VAT)
€44.96
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €36.55 |
| 5 - 9 | €32.61 |
| 10 - 19 | €30.46 |
| 20 - 39 | €28.66 |
| 40 + | €27.23 |
- RS Stock No.:
- 830-5114
- Mfr. Part No.:
- HDLG-2416
- Manufacturer:
- Broadcom
Legislation and Compliance
Product Details
4 Digit Alphanumeric Display, Avago HDLO-2416, HDLG-2416
4 character, 5x7 dot matrix LED displays in standard DIL packages. Built-in RAM, ASCII decoder and LED drive circuitry.
Character height: 5mm (0.2in)
End stackable
128 special ASCII characters for English, German, Italian, Swedish, Danish & Norwegian languages
Viewing angle: 50° typical
Microprocessor bus interface
Display blanking and cursor editing facilities
Enhanced drop-in replacement for HPDL-2416
End stackable
128 special ASCII characters for English, German, Italian, Swedish, Danish & Norwegian languages
Viewing angle: 50° typical
Microprocessor bus interface
Display blanking and cursor editing facilities
Enhanced drop-in replacement for HPDL-2416
Alphanumeric LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | Dot Matrix |
| Number of Characters | 4 |
| LED Colours | Green |
| Dominant Wavelength | 574 nm |
| Character Width | 3.4mm |
| Character Height | 5.1mm |
| Mounting Type | Through Hole |
| External Width | 25.2mm |
| External Depth | 20.1mm |
| External Height | 6.6mm |
| External Dimensions | 25.15 x 20.07 x 6.6mm |
| Decoder Included | Yes |
| Luminous Intensity | 5.6 mcd |
| Colour of Face | Black |
| Dots Wide | 7 |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Dot Matrix Dimensions | 7 x 5 |
| Dots High | 5 |
| Dot Matrix Format | 5 x 7 |
| Maximum Operating Temperature | +85°C |
