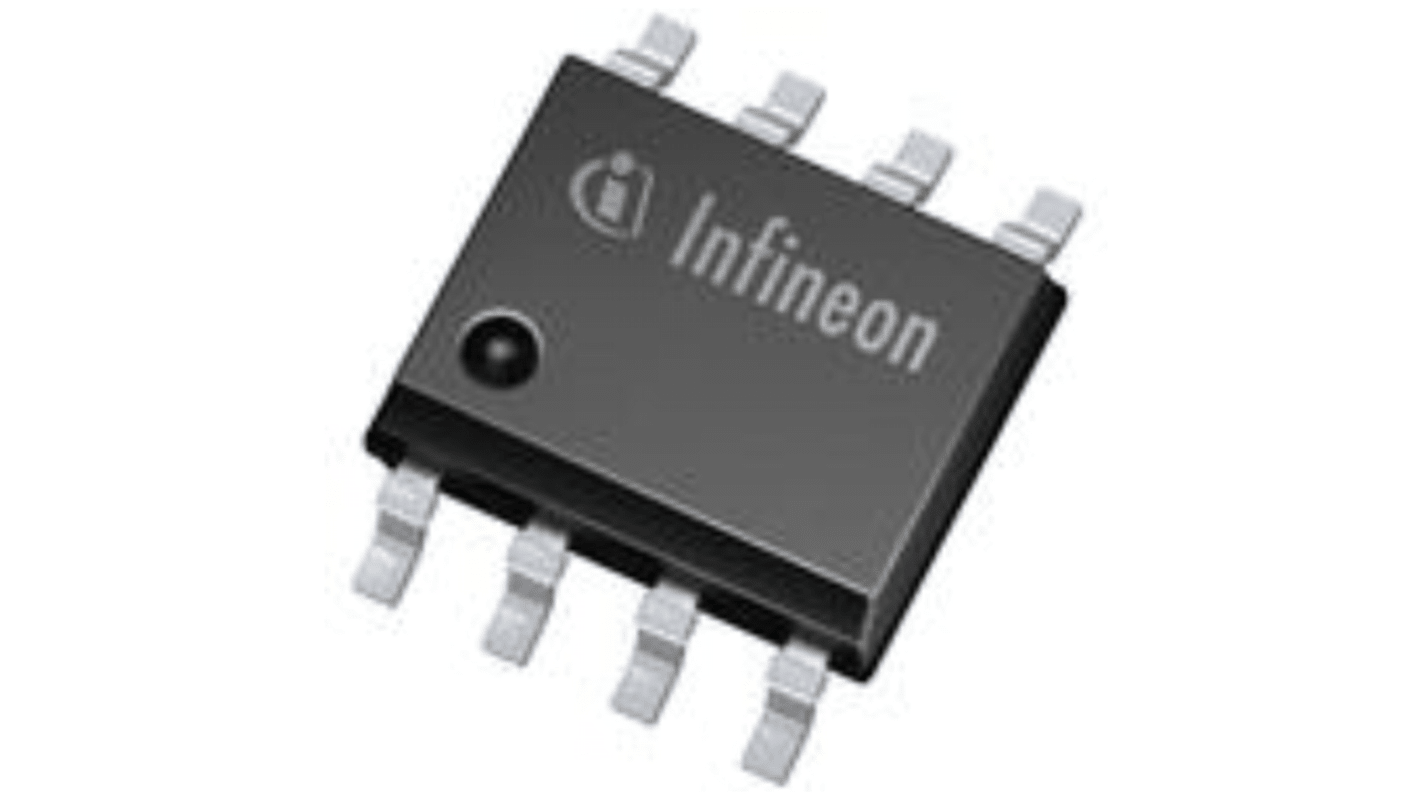

Infineon TLD1211SJFUMA1 LED Driver IC, 28 V 85mA 8-Pin
- RS Stock No.:
- 229-1885
- Mfr. Part No.:
- TLD1211SJFUMA1
- Manufacturer:
- Infineon
9990 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 15)
€0.948
(exc. VAT)
€1.166
(inc. VAT)
| Units | Per unit | Per Pack* |
| 15 - 15 | €0.948 | €14.22 |
| 30 - 75 | €0.869 | €13.035 |
| 90 - 225 | €0.803 | €12.045 |
| 240 - 465 | €0.744 | €11.16 |
| 480 + | €0.723 | €10.845 |
| *price indicative | ||
- RS Stock No.:
- 229-1885
- Mfr. Part No.:
- TLD1211SJFUMA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details
The Infineon integrated adjustable constant current source realized in a bipolar IC technology. The IC is designed to supply LEDs under the severe conditions of automotive applications resulting in constant brightness and extended LED lifetime. It is capable to drive high current, high brightness LEDs up to 2.5 A by using additional external output stages as booster transistors. For LED currents up to 85mA the IC can be used as a stand alone device and requires only one voltage sense resistor as an external component.
It is RoHS compliant and AEC qualified
It is small SMD package
It is small SMD package
Specifications
Attribute | Value |
|---|---|
| Output Current | 85mA |
| Input Voltage | 28 V |
| AC or DC Input Voltage | dc |
| Dimming Operation | PWM |
| Maximum Output Power | 500mW |
| Number of Pins | 8 |
