- RS Stock No.:
- 258-0786
- Mfr. Part No.:
- CDM10V4XTSA1
- Manufacturer:
- Infineon
Temporarily out of stock - back order for despatch 06-11-2024, delivery within 2 working days
Added
Price Each (On a Reel of 3000)
€0.193
(exc. VAT)
€0.237
(inc. VAT)
Units | Per unit | Per Reel* |
3000 - 3000 | €0.193 | €579.00 |
6000 - 6000 | €0.187 | €561.00 |
9000 + | €0.179 | €537.00 |
*price indicative |
- RS Stock No.:
- 258-0786
- Mfr. Part No.:
- CDM10V4XTSA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details

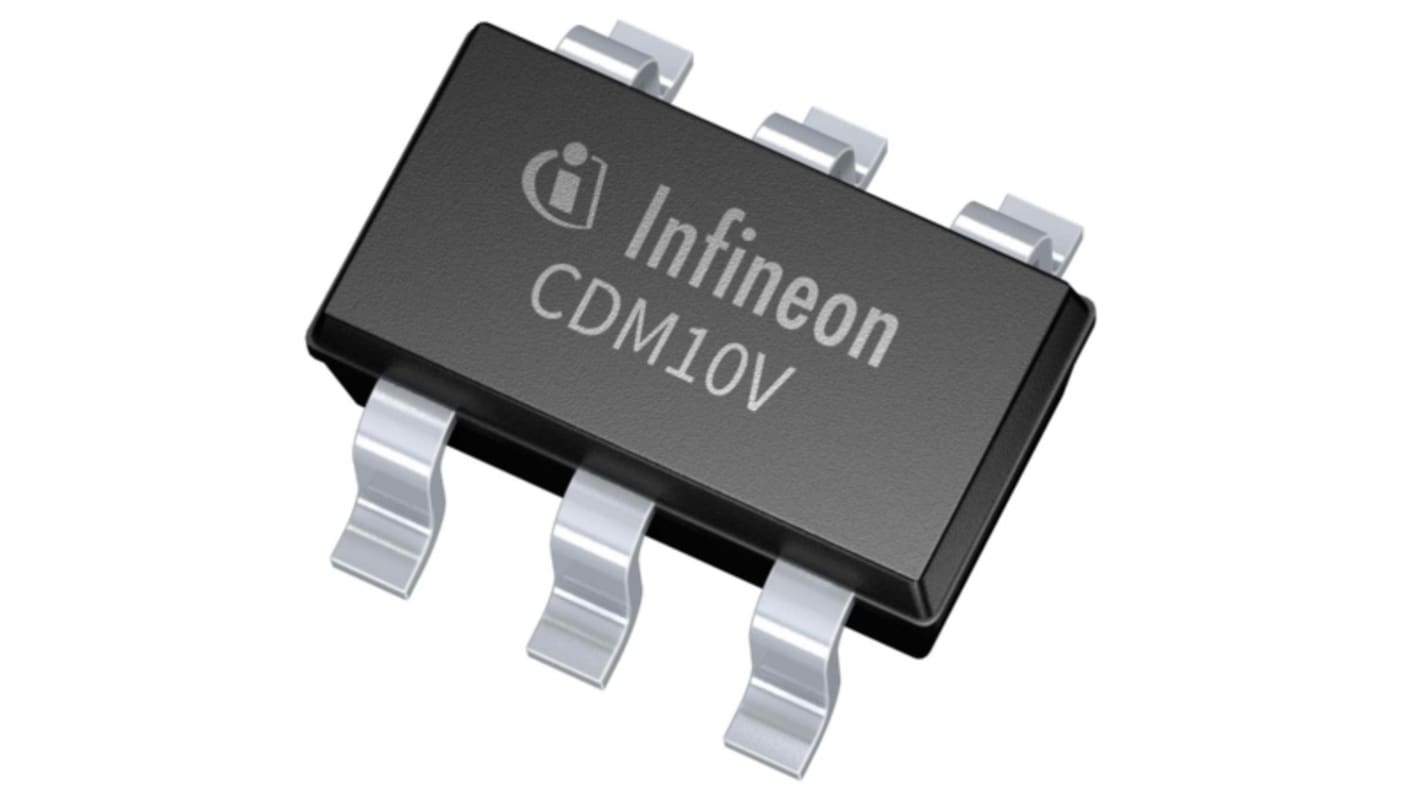

The Infineon dimming solution is a fully integrated 0-10 V dimming interface IC and comes in a SOT-23-6 package to cover space requirements on small PCBs. The device is targeted for various dimming applications in lighting. The IC can be used to transmit analogue voltage based signals from a 0-10 V dimmer or potentiometer to the dimming or PWM input of a lighting controller IC in the form of a 5 mA current based PWM signal to drive an external opto-coupler. It replaces many components in a traditional solution and reduces BOM and PCB space significantly.
Simplest 0-10 V design on the market
2kHz PWM frequency
100μA Dimmer/Resistor Bias current
Wide input Vcc range from 11 to 25 V
Replaces many external components with a single chip reducing BOM and PCB space
Minimum variation from device to device
2kHz PWM frequency
100μA Dimmer/Resistor Bias current
Wide input Vcc range from 11 to 25 V
Replaces many external components with a single chip reducing BOM and PCB space
Minimum variation from device to device
Specifications
Attribute | Value |
---|---|
Output Current | 110µA |
Input Voltage | 25 V |
Dimming Operation | 0-10 V |
