Infineon CDM10V4XTSA1 Lighting Controller, 25 V 110μA
- RS Stock No.:
- 258-0787
- Mfr. Part No.:
- CDM10V4XTSA1
- Manufacturer:
- Infineon
2990 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 10)
€0.466
(exc. VAT)
€0.573
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | €0.466 | €4.66 |
| 100 - 240 | €0.443 | €4.43 |
| 250 - 490 | €0.434 | €4.34 |
| 500 - 990 | €0.406 | €4.06 |
| 1000 + | €0.374 | €3.74 |
| *price indicative | ||
- RS Stock No.:
- 258-0787
- Mfr. Part No.:
- CDM10V4XTSA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details

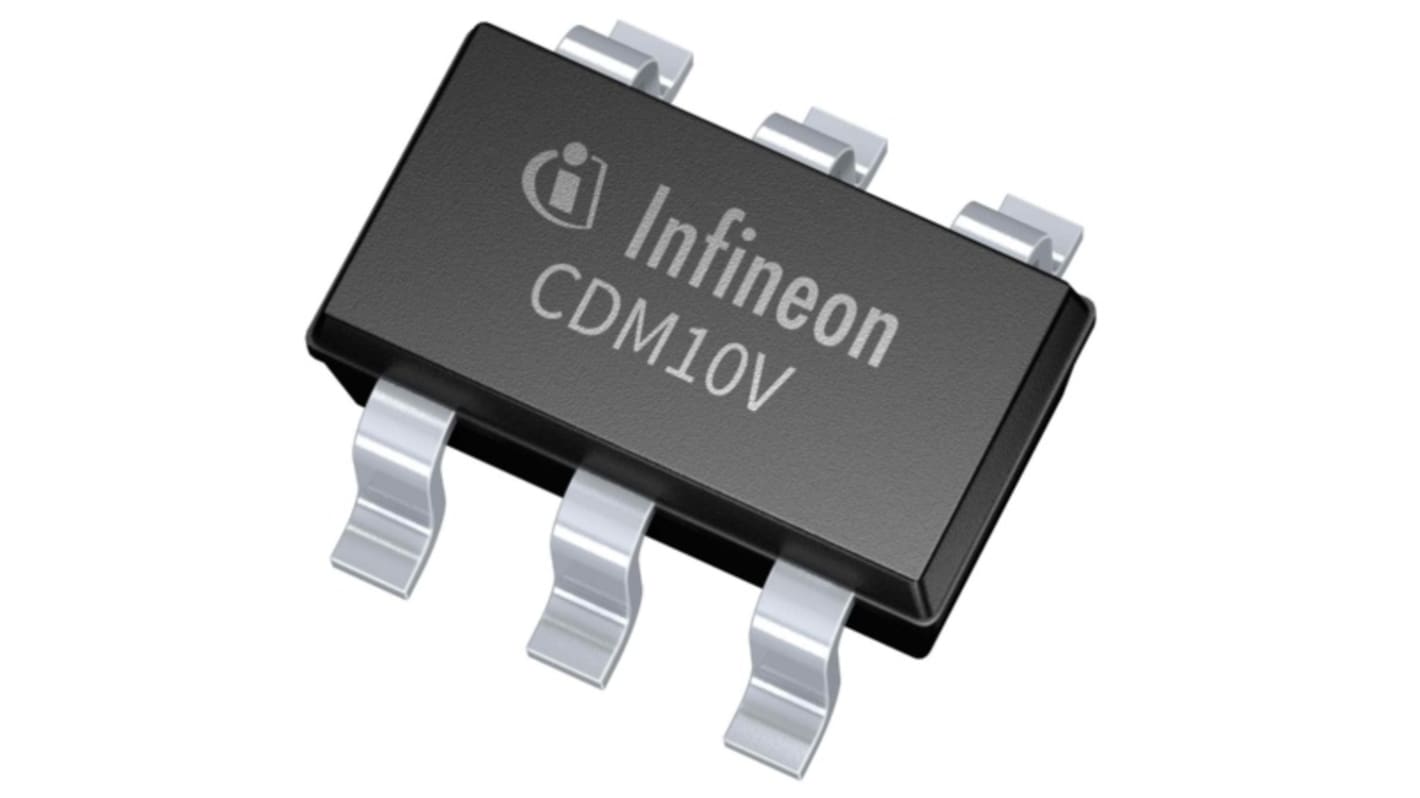

The Infineon dimming solution is a fully integrated 0-10 V dimming interface IC and comes in a SOT-23-6 package to cover space requirements on small PCBs. The device is targeted for various dimming applications in lighting. The IC can be used to transmit analogue voltage based signals from a 0-10 V dimmer or potentiometer to the dimming or PWM input of a lighting controller IC in the form of a 5 mA current based PWM signal to drive an external opto-coupler. It replaces many components in a traditional solution and reduces BOM and PCB space significantly.
Simplest 0-10 V design on the market
2kHz PWM frequency
100μA Dimmer/Resistor Bias current
Wide input Vcc range from 11 to 25 V
Replaces many external components with a single chip reducing BOM and PCB space
Minimum variation from device to device
2kHz PWM frequency
100μA Dimmer/Resistor Bias current
Wide input Vcc range from 11 to 25 V
Replaces many external components with a single chip reducing BOM and PCB space
Minimum variation from device to device
Specifications
Attribute | Value |
|---|---|
| Output Current | 110µA |
| Input Voltage | 25 V |
| Dimming Operation | 0-10 V |
