- RS Stock No.:
- 259-1581
- Mfr. Part No.:
- TLD1120ELXUMA1
- Manufacturer:
- Infineon
2500 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 5)
€1.124
(exc. VAT)
€1.383
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 45 | €1.124 | €5.62 |
50 - 95 | €0.946 | €4.73 |
100 - 245 | €0.782 | €3.91 |
250 - 995 | €0.732 | €3.66 |
1000 + | €0.522 | €2.61 |
*price indicative |
- RS Stock No.:
- 259-1581
- Mfr. Part No.:
- TLD1120ELXUMA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details

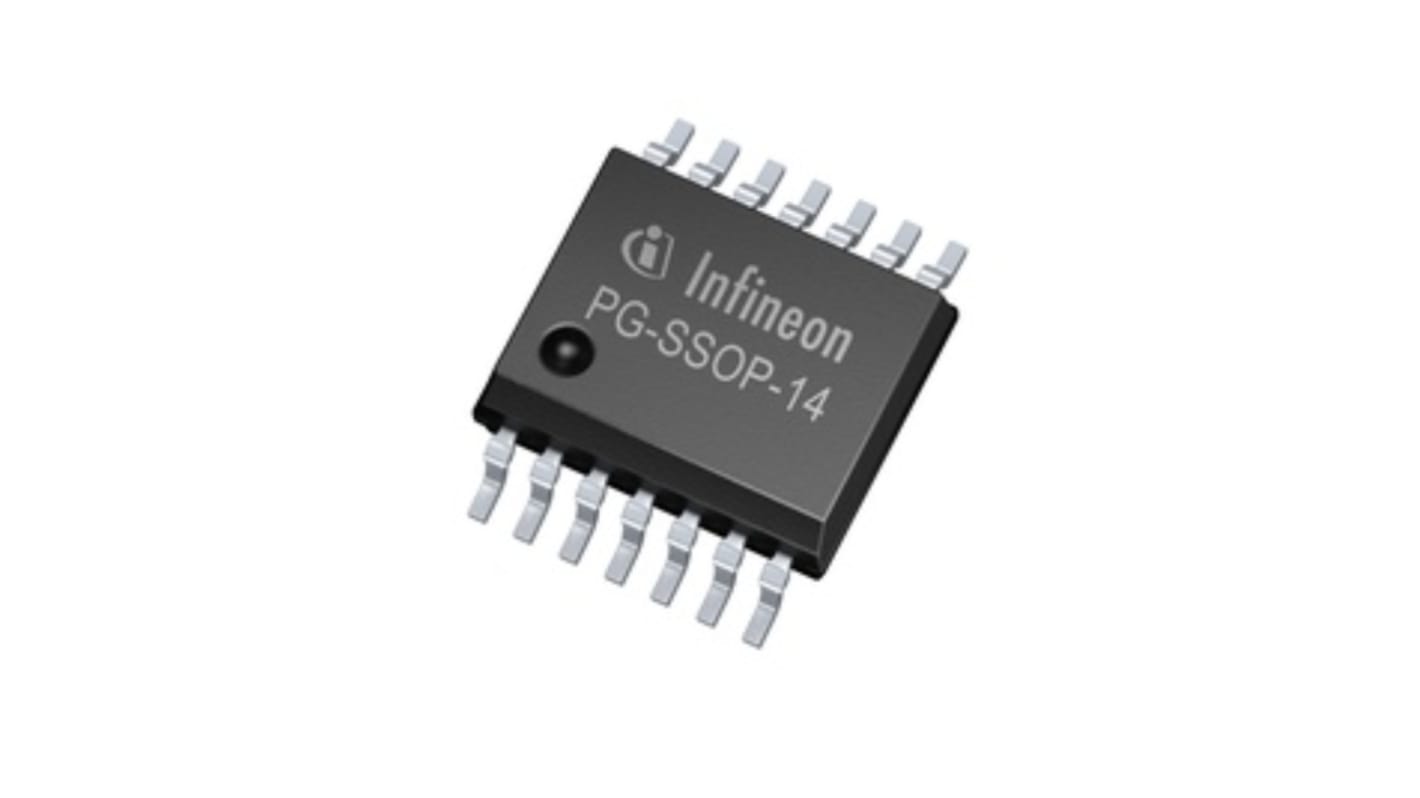

The Infineon one channel high side driver IC with integrated output stages. It is designed to control LEDs with a current up to 360 mA. In typical automotive applications the device is capable to drive i.e. 3cred LEDs with a current up to 180 mA, which is limited by thermal cooling aspects. The output current is controlled practically independent of load and supply voltage changes.
1 Channel device with integrated output stage (current source), optimized to drive LEDs
Output current up to 360mA
Low current consumption in sleep mode
PWM-operation supported via VS- and EN-pin
Reverse polarity protection
Overload protection
Under volta
Output current up to 360mA
Low current consumption in sleep mode
PWM-operation supported via VS- and EN-pin
Reverse polarity protection
Overload protection
Under volta
Specifications
Attribute | Value |
---|---|
Output Current | 360mA |
Input Voltage | 40 V |
AC or DC Input Voltage | dc |
Maximum Output Power | 1.5W |
