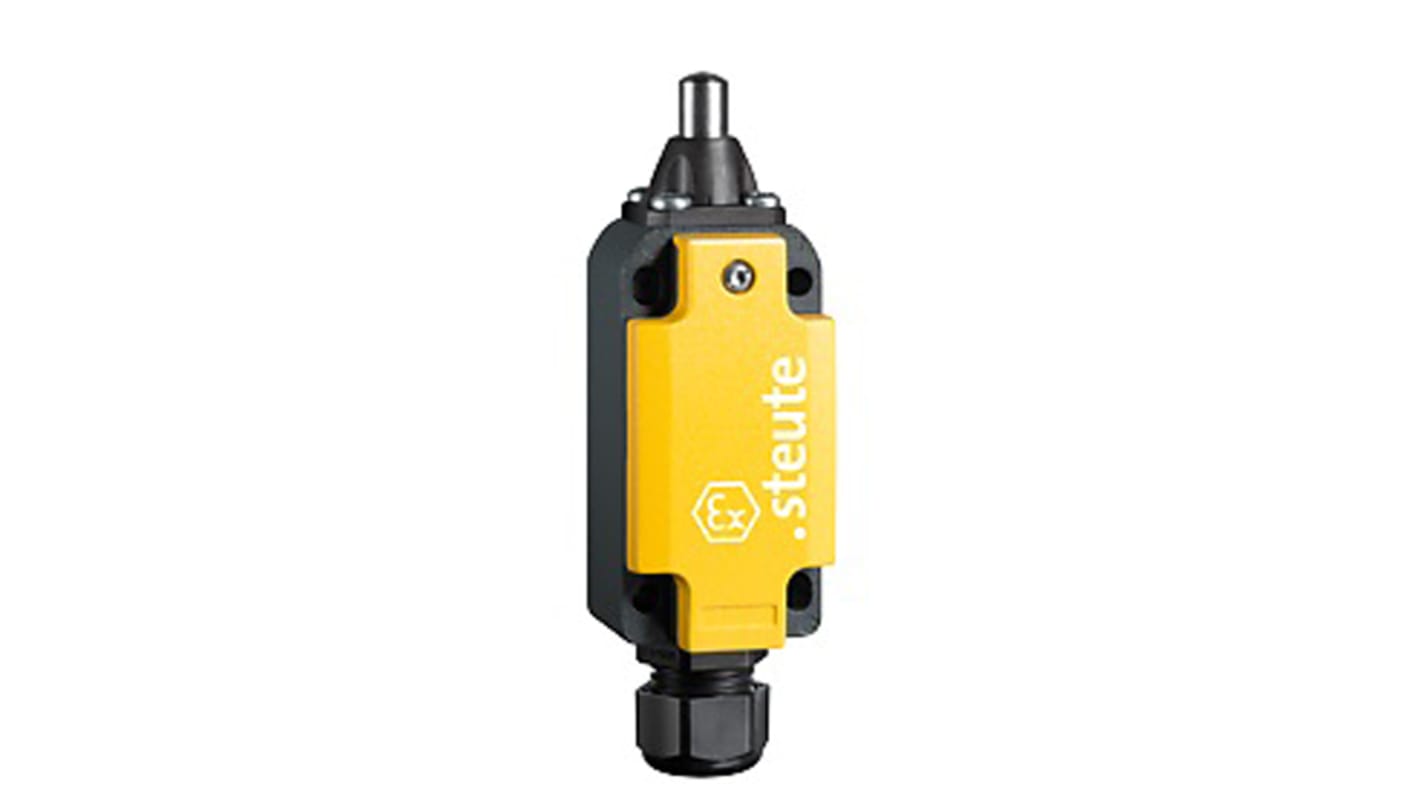

Steute Ex 98 Series Plunger Limit Switch, NO/NC, IP66, DPST, Aluminium Housing, 250V ac Max, T6 4.4A Max
- RS Stock No.:
- 136-5923
- Mfr. Part No.:
- Ex ES 98 -11 -40C
- Manufacturer:
- Steute
2 In stock for delivery within 2 working days
Added
Price Each
€360.83
(exc. VAT)
€443.82
(inc. VAT)
| Units | Per unit |
| 1 + | €360.83 |
- RS Stock No.:
- 136-5923
- Mfr. Part No.:
- Ex ES 98 -11 -40C
- Manufacturer:
- Steute
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
EX 98 Limit Switches
Steute Ex 98 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security.
The Ex 98 limit switches feature slow action positive break NC contacts and are available with various contact configurations.
Features and Benefits
Ex zone 1 and 21
Corrosion-resistant aluminium enclosure
IP66 Rated
Actuator can be repositioned by 4 x 90°
Wide range of actuators
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | T6 4.4 A, T5 6.6A |
| Housing Material | Aluminium |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 125V |
| Connection Type | Cable |
| Series | Ex 98 |
| Action Type | Positive Break, Slow Action |
| Length | 1016mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Hazardous Area Certification | IECEx |
| Width | 2768.6mm |
| Depth | 1092.2mm |
| Mechanical Life | >1000000Operations |
| Mounting Orientation | Vertical |
