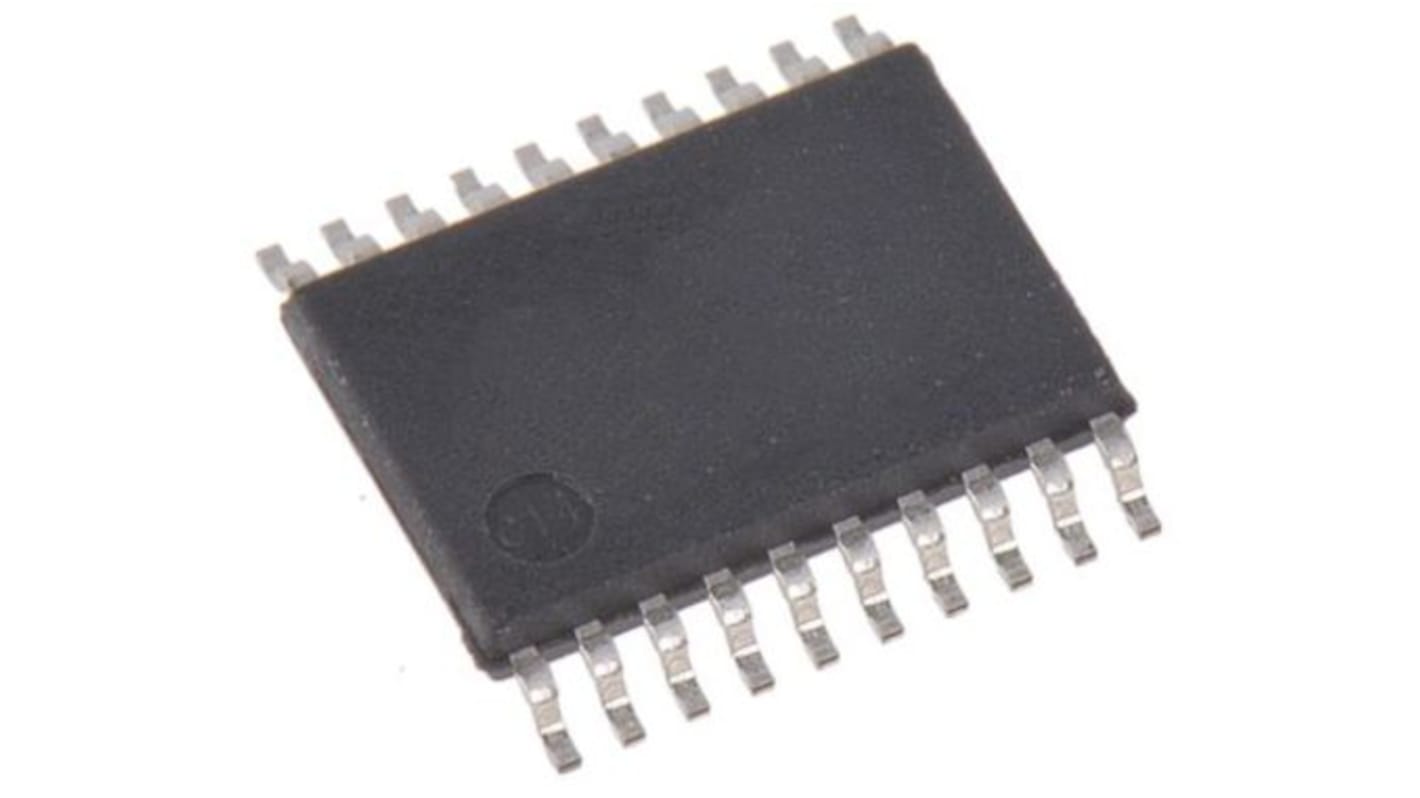

Renesas Electronics 9DB403DGILFT, LVDS Buffer Quad TTL Buffer, 20-Pin TSSOP
- RS Stock No.:
- 217-7932
- Mfr. Part No.:
- 9DB403DGILFT
- Manufacturer:
- Renesas Electronics
2000 In stock for delivery within 2 working days
Added
Price Each (On a Reel of 2000)
€2.282
(exc. VAT)
€2.807
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2000 + | €2.282 | €4,564.00 |
| *price indicative | ||
- RS Stock No.:
- 217-7932
- Mfr. Part No.:
- 9DB403DGILFT
- Manufacturer:
- Renesas Electronics
Technical data sheets
Legislation and Compliance
Product Details
The Renesas Electronics 9DB403 is compatible the Intel DB400 Differential Buffer Specification v2.0. This buffer provides four PCI-Express SRC clocks. The 9DB403 is driven by a differential input pair from a CK409/CK410/CK505 main clock generator.
4- 0.7 V HCSL differential output pairs
Phase jitter: PCIe Gen2 < 3.1 ps rms
Phase jitter: PCIe Gen1 < 86 ps peak to peak
Supports zero delay buffer mode and fanout mode
Bandwidth programming available
50-100 MHz operation in PLL mode
50-400 MHz operation in Bypass mode
Phase jitter: PCIe Gen2 < 3.1 ps rms
Phase jitter: PCIe Gen1 < 86 ps peak to peak
Supports zero delay buffer mode and fanout mode
Bandwidth programming available
50-100 MHz operation in PLL mode
50-400 MHz operation in Bypass mode
Specifications
Attribute | Value |
|---|---|
| Number of Drivers | 4 |
| Input Type | TTL |
| Output Type | Buffer |
| Number of Elements per Chip | 2 |
| Package Type | TSSOP |
| Pin Count | 20 |
