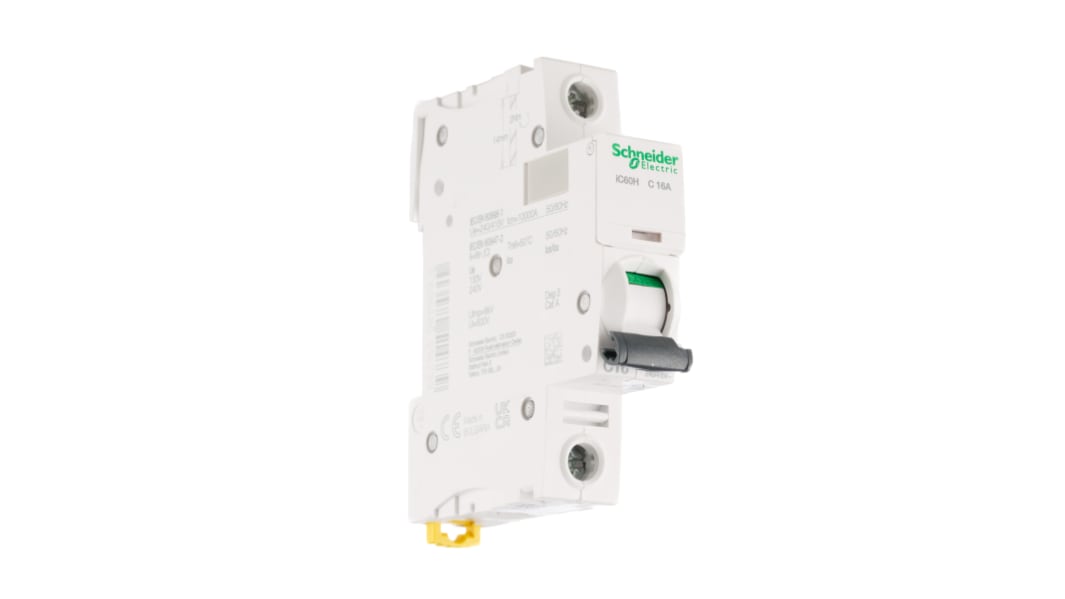

Schneider Electric Acti 9 iC60H MCB, 1P, 6A Curve C, 100 → 133V AC, 72V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 791-3290
- Mfr. Part No.:
- A9F54106
- Manufacturer:
- Schneider Electric
23 Within 1 working day(s) (IE stock)
470 Within 2 working day(s) (EU stock)
Added
Price Each
€21.98
(exc. VAT)
€27.04
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €21.98 |
| 10 - 14 | €20.65 |
| 15 + | €19.77 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 791-3290
- Mfr. Part No.:
- A9F54106
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details
Schneider Electric | Acti9 iC60H | Mini Circuit Breakers
The Acti9 series of MCBs by Schneider Electric provides excellent circuit protection particularly in combating short circuits and overload currents. These MCBs are rigorously tested by Schneider and are compliant with standards such as IEC/EN 60898 & 60947-2. These types of MCBs are typically used in industrial or commercial buildings and can work extremely well in polluted environments.
Features and benefits:
- Easy to install these consumer units, single clip on to Din Rail, compact in nature making wiring easier and simplifying your circuit system. Ergonomically designed with robust connections. IP20B terminal shutters.
- Schneider 'VisiSafe' for safer operation and maintenance work on electrical circuits. Absolute safety of circuit protection guaranteed.
- Schneider 'VisiTrip' for easier fault detection in the MCB outgoers. This can help reduce intervention time greatly, protecting the device before any further electrical problems occur.
- 1P (number of protected poles).
- Nominal currents ranging from 1 to 63 Amps.
- Full compatibility with Acti 9 RCDs and MCCBs.
- Operating voltage up to 440 V ac, insulation voltage 500 V.
- Additional add-on earth leakage protection devices are available. This offers you better continuity of service.
- Schneider Green Premium classed product.
Protection ratings & Safety features (See datasheet for further details) -
- IP20 conforming to IEC 60529. Protection against solid objects up to 12mm e.g. fingers, small tools.
- Pollution degree level of 3 conforming to EN/IEC 60947-2. EN/IEC 60947-2 & EN/IEC 60898-1.
- Operating temperature (for operation) -35 to 70 ° C.
- Padlockable, providing extra protection.
Applications.
- DC current circuit protection / Motor circuit protection.
- Polluted environments/networks.
- Any circuit types within industrial/commercial buildings.
Q&A: What is the differences in the Tripping Curves B, C, and D?
- Curve B: Tripping: 3 to 5 times the rated current.
- Applications: protection of generators, persons, very long cables
- Curve C: Tripping: 5 to 10 times the rated current
- Applications: protection of circuits and general applications
- Curve D: Tripping: 10 to 14 times the rated current
- Applications: protection of high surge circuits, welders, transformers and motors
The Acti9 come in either Curve B , C or D. Please refer to specifications for specific type.
Schneider Electric MCB, IP20 Rating, DIN Rail Mounting - iC60H Series - A9F54106
Keen to keep your equipment running safely and reduce the risk of fire? Look to this MCB from Schneider Electric. A bimetallic strip bends when the unit receives between five and ten times its 6A rated load, breaking your circuit to quickly stop the flow of electricity. You can trust this safety booster to protect downstream devices from short circuits and slash the chances of electrical fires caused by thermal overcurrents. It's easy to secure the unit, as you can lock it in position with a padlock to prevent unauthorised tampering.
Features & Benefits
• Easy to reset using a simple toggle switch – no need for fuses
• Contact position and trip indicators keep you clued up on device status
• IP20 approval means its touch-safe and protected against objects larger than 12mm
• Suits an ambient temperature of -35°C to +70°C, so safe for industrial environments
• Contact position and trip indicators keep you clued up on device status
• IP20 approval means its touch-safe and protected against objects larger than 12mm
• Suits an ambient temperature of -35°C to +70°C, so safe for industrial environments
Applications
• Inductive loads
• Commercial lighting
• Distribution boards
• Commercial lighting
• Distribution boards
How do I mount this device?
This MCB is a breeze to mount thanks to its handy clip-on mechanism. This means you can simply snap it onto a standard 35mm DIN rail without the need for any tools.
Standards
EN/IEC 60947-2, EN/IEC 60898-1.
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 1P |
| Current Rating | 6A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 100 → 133 V, 12 → 60 V, 220 → 240V |
| Rated DC Voltage | 72 V, 12 → 48V |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Range | Acti 9 |
| Series | iC60H |
| Circuit Breaker Type | MCB |
| Width | 18mm |
| Length | 85mm |
| Mounting Style | DIN Rail Mount |
| Depth | 78.5mm |
| Model Number | iC60H 1P 6A c |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Reset Actuator Type | Rocker Switch |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal-Magnetic |
