Product Details

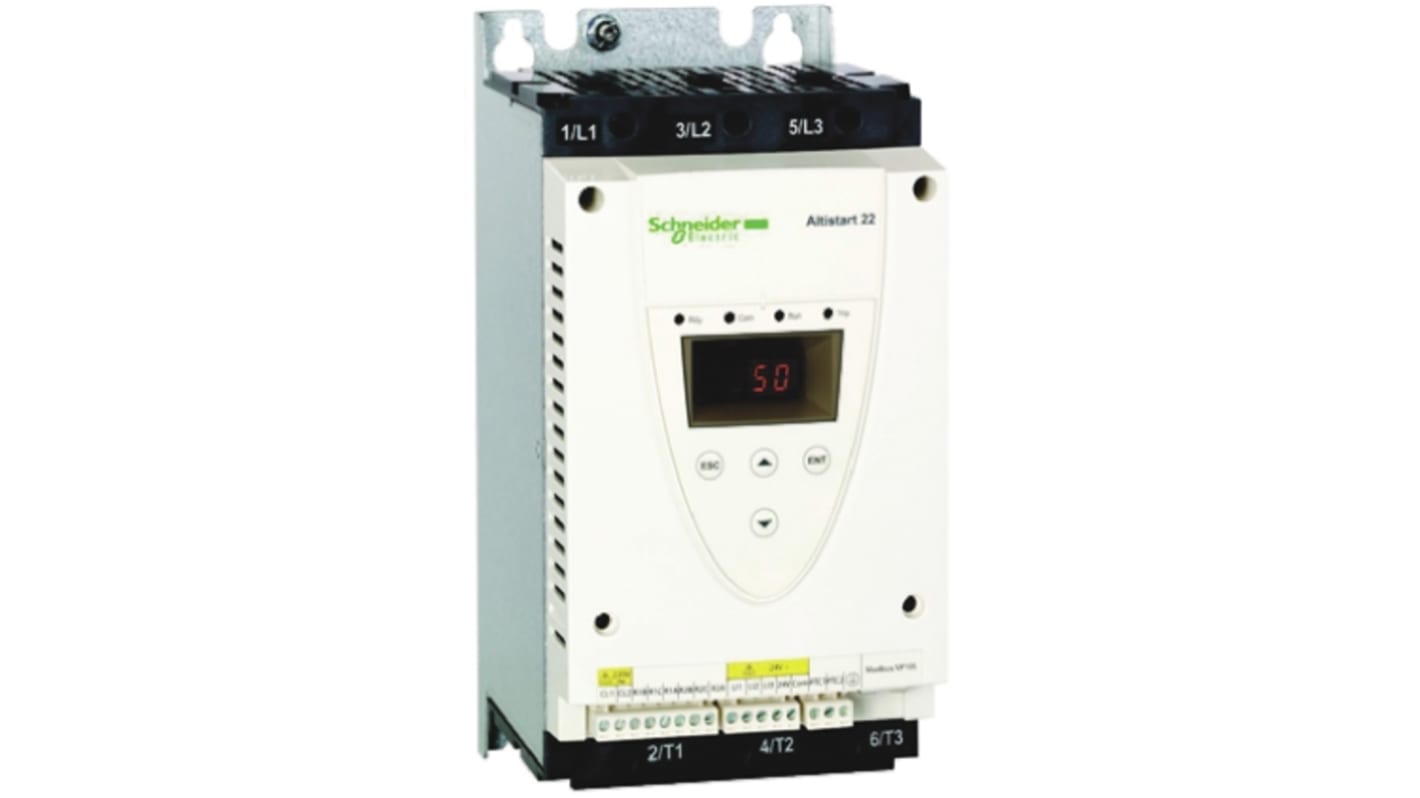

Schneider Electric 3-Phase Soft Starter, 30kW Power Rating, 440V AC Voltage Rating - ATS22 Series - ATS22D62Q
Prevent damage to your industrial motors from initial inrush currents with this soft starter from Schneider Electric. It regulates the starting current, delivering a gradual ramp-up to your equipment and prolonging its lifespan. The device is designed for 3-phase motors and can deliver up to 22kW of electric power at 440V AC supply voltage, making it a practical choice for heavy-duty applications. As it comes with an integrated mounting plate, it's quick and easy to install this starter.
Features & Benefits
• Internal bypass function enables continuous run after starting for reduced heat dissipation
• Integrated thermal protection for the motor and starter giving optimal functionality
• Forced convection cooling system prevents overheating
• Operating temperature range of -10°C to +40°C for use in challenging conditions
• Screw terminals for quick and secure wire connection
• Integrated thermal protection for the motor and starter giving optimal functionality
• Forced convection cooling system prevents overheating
• Operating temperature range of -10°C to +40°C for use in challenging conditions
• Screw terminals for quick and secure wire connection
Applications
• Gas plants
• Water treatment facilities
• Heating, ventilation and air-conditioning systems
• Water treatment facilities
• Heating, ventilation and air-conditioning systems
Is this soft starter finger-safe?
Yes, this soft starter has an IP20 rating, indicating it's touch-proof and resistant to objects larger than 12mm.
How much does this soft starter weigh?
This soft starter has a net weight of 12kg, which is supported effectively by the keyhole cutouts on the mounting plate.
Specifications
Attribute | Value |
---|---|
Power Rating | 30 kW |
Range | Altistart 22 |
Motor Starter Type | Soft Start |
Voltage Rating | 440 V ac |
Phase | 3 |
Current Rating | 62 A |
IP Rating | IP20 |
Overall Length | 247mm |
Overall Width | 145mm |
Series | ATS22 |
Better World Verification | Green Premium |
Better World Product | Yes |
Overall Depth | 295mm |
