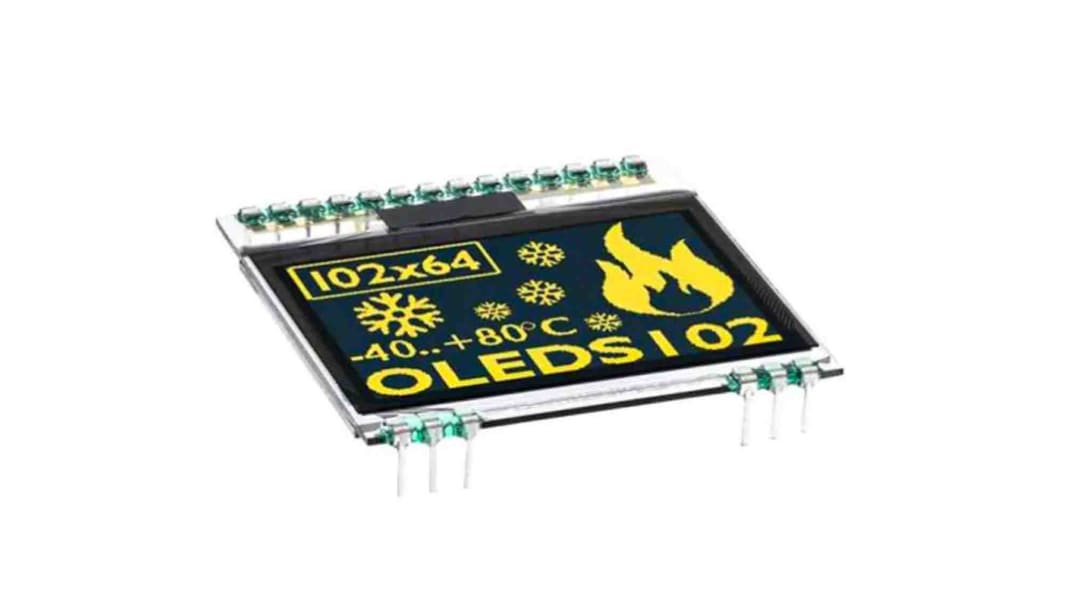

Display Visions 1.7in Yellow Passive matrix OLED Display 102 x 64pixels Graphics I2C, SPI Interface
- RS Stock No.:
- 197-1202
- Mfr. Part No.:
- EA OLEDS102-6LGA
- Manufacturer:
- Display Visions
Temporarily out of stock - back order for despatch 04-06-2024, delivery within 2 working days
Added
Price Each
€27.96
(exc. VAT)
€34.39
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €27.96 |
| 5 - 9 | €26.63 |
| 10 + | €25.42 |
- RS Stock No.:
- 197-1202
- Mfr. Part No.:
- EA OLEDS102-6LGA
- Manufacturer:
- Display Visions
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Electronic Assembly EA OLED series launched worldwide the first display family with OLED technology for direct mounting and soldering. In comparison to standard displays there’s no FFC/FPC cable/connector that may lose contact, this OLED series will be soldered directly or put into a standard 2.54mm precision socket. It is designed for compact handheld equipment and provides a lot real advantages.
102X64 dots (Relates to 8x17 character or 4x12 large character)
SPI Interface (3-Wire): MOSI, CLK, CS
I²C INTERFACE: SDA, SCL
SPI Interface (3-Wire): MOSI, CLK, CS
I²C INTERFACE: SDA, SCL
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 1.7in |
| Viewing Area Dimensions | 22.4 x 33.6 |
| Aspect Ratio | 12:17 |
| Matrix Type | Passive |
| Display Colours | Yellow |
| Resolution | 102 x 64pixels |
| Contrast Ratio | 2000:1 |
| Driver Mounting | Graphics |
| Interface Ports | I2C, SPI |
| Dimensions | 39 x 38 x 2.1mm |
| Height | 54 |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Viewing Area Height | 22.4mm |
| Viewing Area Width | 33.6mm |
| Forward Voltage | 3.3 V dc |
| Width | 55mm |
| Operating Temperature Range | -40 → +80°C |
| Series | EA OLED |
