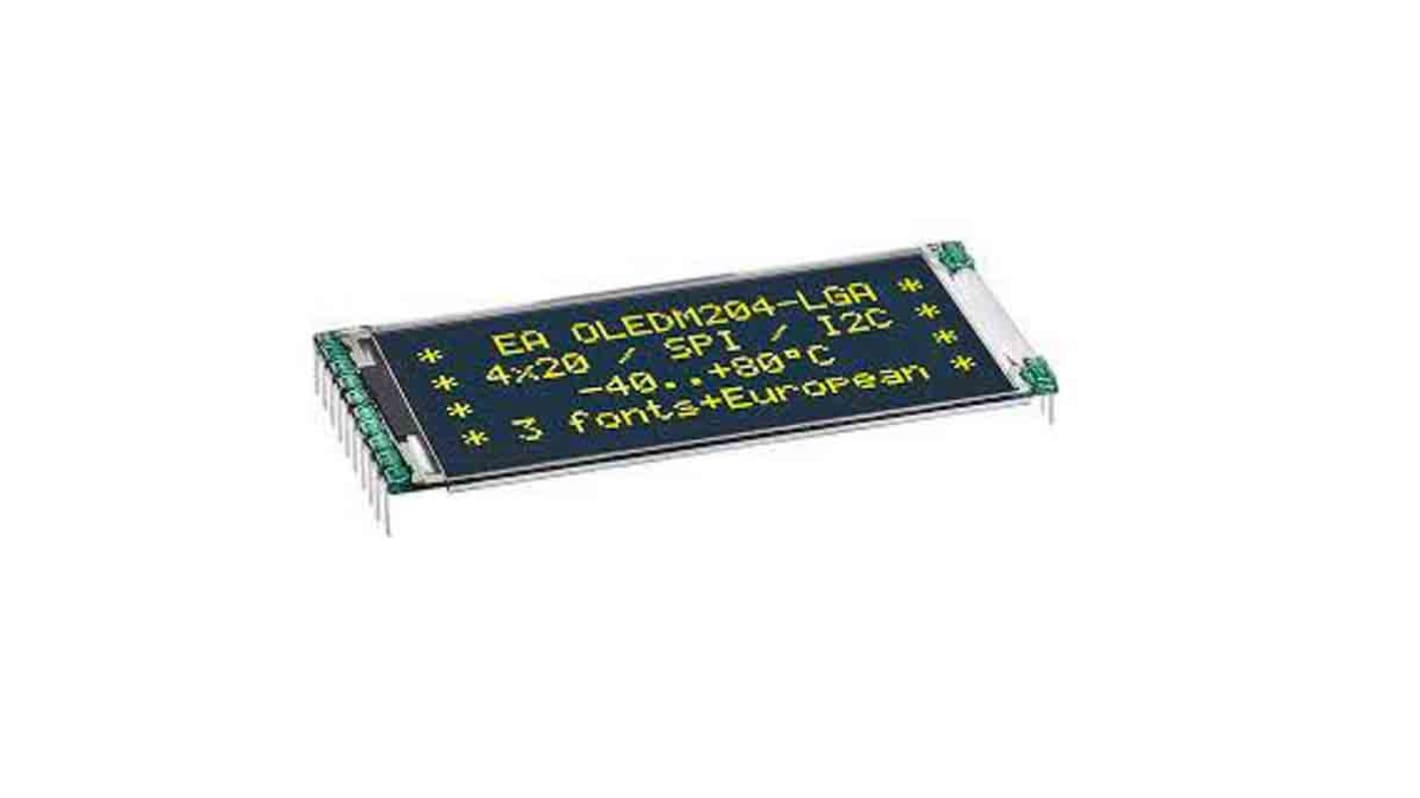

Display Visions 2.0in Yellow OLED Display 4 x 20pixels Graphics I2C, SPI Interface
- RS Stock No.:
- 197-1215
- Mfr. Part No.:
- EA OLEDM204-LGA
- Manufacturer:
- Display Visions
Temporarily out of stock - back order for despatch 11-06-2024, delivery within 2 working days
Added
Price Each (In a Tray of 24)
€22.569
(exc. VAT)
€27.76
(inc. VAT)
| Units | Per unit | Per Tray* |
| 24 + | €22.569 | €541.656 |
| *price indicative | ||
- RS Stock No.:
- 197-1215
- Mfr. Part No.:
- EA OLEDM204-LGA
- Manufacturer:
- Display Visions
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Electronic Assembly EA OLED series launched worldwide the first display family with OLED technology for direct mounting and soldering. In comparison to standard displays there’s no FFC/FPC cable/connector that may lose contact, this OLED series will be soldered directly or put into a standard 2.54mm precision socket. It is designed for compact handheld equipment and provides a lot real advantages.
4x20 character / alternatively 3x20 or 2x20 with double height font.
Fast response time of 10 microseconds with no afterglow.
SPI Interface (3-Wire): MOSI, CLK, CS
I²C INTERFACE: SDA, SCL
Fast response time of 10 microseconds with no afterglow.
SPI Interface (3-Wire): MOSI, CLK, CS
I²C INTERFACE: SDA, SCL
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 2.0in |
| Viewing Area Dimensions | 17 x 47 |
| Aspect Ratio | 17:47 |
| Display Colours | Yellow |
| Resolution | 4 x 20pixels |
| Contrast Ratio | 2000:1 |
| Driver Mounting | Graphics |
| Interface Ports | I2C, SPI |
| Dimensions | 61 x 26 x 2.1mm |
| Height | 26 |
| Maximum Operating Temperature | +80°C |
| Width | 61mm |
| Viewing Area Width | 47mm |
| Viewing Area Height | 17mm |
| Forward Voltage | 3.3 V dc |
| Minimum Operating Temperature | -40°C |
| Series | EA OLED |
| Operating Temperature Range | -40 → +80°C |
