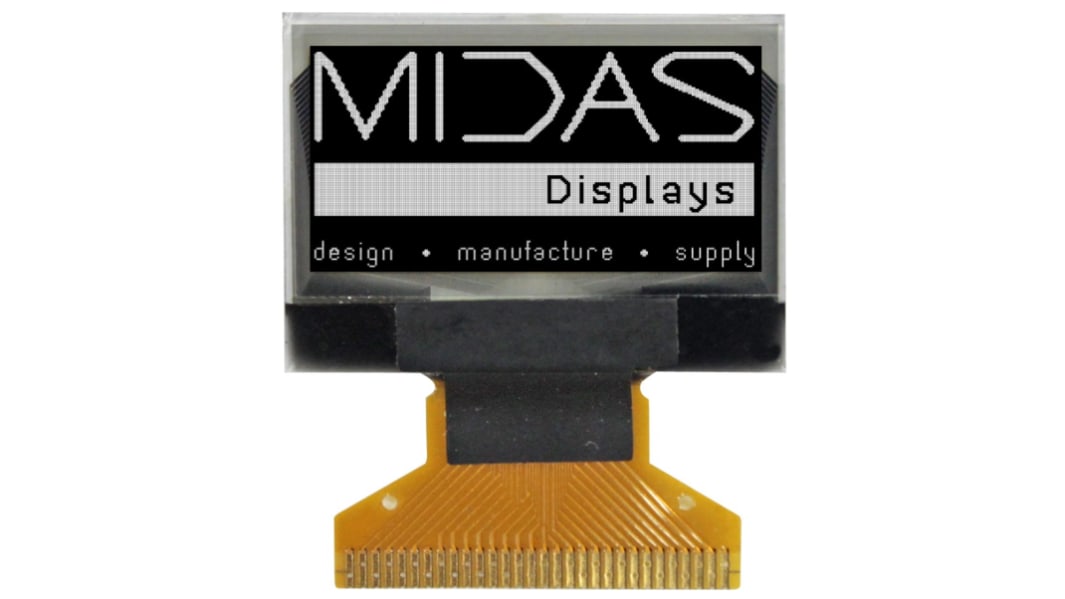

Midas 0.96in White Passive matrix OLED Display 128 x 64pixels COB I2C, Parallel, SPI Interface
- RS Stock No.:
- 249-2723
- Mfr. Part No.:
- MCOT128064N2Z-WM
- Manufacturer:
- Midas
Temporarily out of stock - back order for despatch 12-09-2024, delivery within 2 working days
Added
Price Each
€8.56
(exc. VAT)
€10.53
(inc. VAT)
| Units | Per unit |
| 1 + | €8.56 |
- RS Stock No.:
- 249-2723
- Mfr. Part No.:
- MCOT128064N2Z-WM
- Manufacturer:
- Midas
Technical data sheets
Legislation and Compliance
Product Details
The Midas Chip-On-Tab 128 x 64 resolution Graphic OLED display has a white on black appearance. This display uses the SSD1306 controller.
Multi interface
Duty 1/64
Operating temperature -40°C to +80°C
Duty 1/64
Operating temperature -40°C to +80°C
Specifications
Attribute | Value |
|---|---|
| Diagonal Display Size | 0.96in |
| Viewing Area Dimensions | 21.738 x 10.858mm |
| Matrix Type | Passive |
| Display Colours | White |
| Resolution | 128 x 64pixels |
| Contrast Ratio | 2000:1 |
| Driver Mounting | COB |
| Interface Ports | I2C, Parallel, SPI |
| Dimensions | 26.7 x 19.26 x 1.45mm |
| Depth | 1.45mm |
| Height | 1.45mm |
| Maximum Operating Temperature | +80°C |
| Width | 26.7mm |
| Operating Temperature Range | -40 → +80°C |
| Viewing Area Height | 10.858mm |
| Minimum Operating Temperature | -40°C |
| Viewing Area Width | 21.738mm |
| Forward Voltage | 15 V dc |
