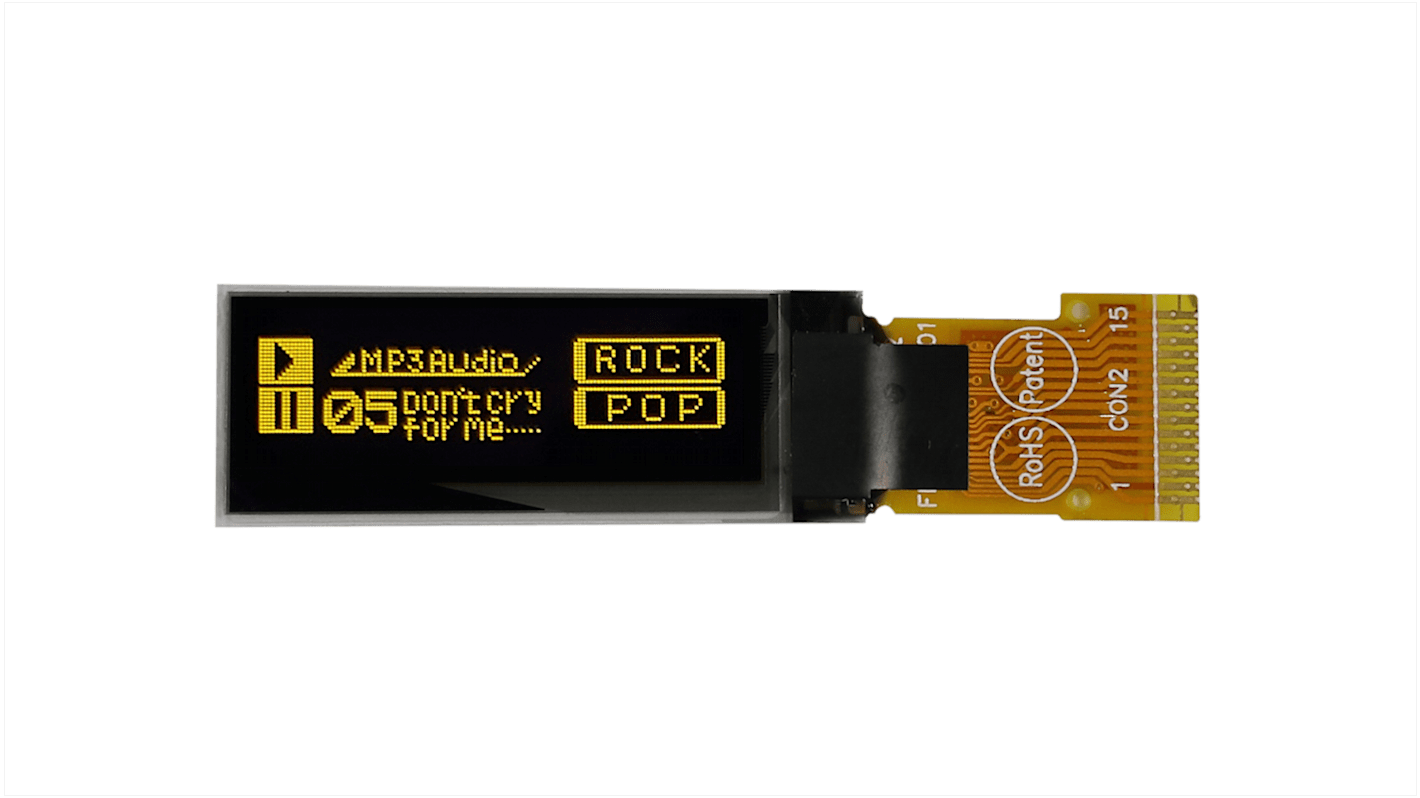

Midas 0.91in Yellow Passive matrix OLED Display 128 x 32pixels COG SPI Interface
RS Stock No.:
254-3599
Mfr. Part No.:
MDOG128032C2V-YS
Manufacturer:
Midas
View all OLED Displays
87 In stock for delivery within 2 working days
Add to Basket
Units
Add to basket
Total Price (1 Units)
€5.95
(exc. VAT)
€7.32
(inc. VAT)
Real time stock check
Add to a parts list
Units
Per unit
1 - 4
€5.95
5 +
€5.45
RS Stock No.:
254-3599
Mfr. Part No.:
MDOG128032C2V-YS
Manufacturer:
Midas
Technical data sheets
Legislation and Compliance
Product Details
Specifications
Datasheet - MDOG128032C2V-YS
Datasheet - MDOG128032C2V-YS
RoHS Certificate of Compliance
Statement of conformity
The Midas chip-on-glass 128 x 32 resolution graphic OLED display has a yellow on black appearance. This display uses the SSD1306 controller.
14 number of connections
Attribute
Value
Diagonal Display Size
0.91in
Viewing Area Dimensions
24.384 x 7.584mm
Aspect Ratio
11.50:1.26
Matrix Type
Passive
Display Colours
Yellow
Resolution
128 x 32pixels
Contrast Ratio
10000:1
Driver Mounting
COG
Interface Ports
SPI
Dimensions
30.00 x 11.50 x 1.26mm
Depth
1.26mm
Height
1.26mm
Maximum Operating Temperature
+80°C
Minimum Operating Temperature
-40°C
Viewing Area Height
7.584mm
Viewing Area Width
24.384mm
Forward Voltage
3.3 V dc
Operating Temperature Range
-40 → +80°C
Width
30.00mm
