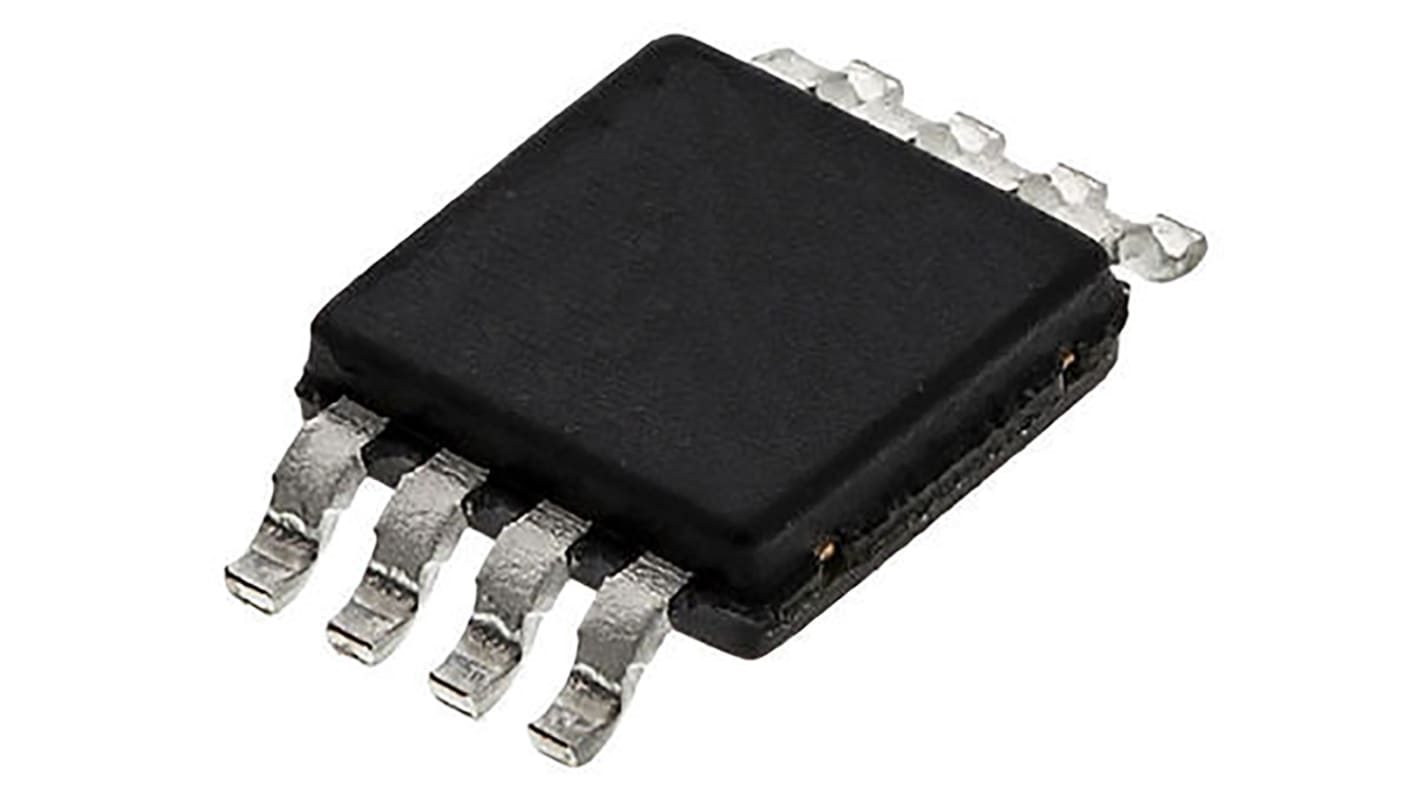

LM2904AQM8-13 DiodesZetex, Low Power, Op Amp, 700kHz 20 kHz, 8-Pin MSOP
- RS Stock No.:
- 133-3368
- Mfr. Part No.:
- LM2904AQM8-13
- Manufacturer:
- DiodesZetex
2050 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 50)
€0.303
(exc. VAT)
€0.373
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 + | €0.303 | €15.15 |
| *price indicative | ||
- RS Stock No.:
- 133-3368
- Mfr. Part No.:
- LM2904AQM8-13
- Manufacturer:
- DiodesZetex
Technical data sheets
Legislation and Compliance
Product Details
Operational Amplifiers up to 36 V Supply Voltage, Diodes Inc
Diodes operational amplifier range provides Industry standard parts for general purpose applications.
Operational Amplifiers, Diodes Inc
Specifications
Attribute | Value |
|---|---|
| Amplifier Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Gain Bandwidth Product | 700kHz |
| Typical Slew Rate | 0.3V/µs |
| Maximum Operating Frequency | 20 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Rail to Rail | No |
| Maximum Input Voltage | ±18 (Dual) V, 36 (Single) V |
| Offset Voltage | 4mV |
| Output Current | 50 (Sink) μA, -60 (Source) mA |
| Typical Voltage Gain | 100 dB |
| Input Voltage Range | ±1 → ±18 V, 2 → 36 V |
| Input Offset Current | 150nA |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Length | 3.1mm |
| Height | 0.95mm |
| Width | 3.1mm |
| Typical Input Voltage Noise Density | 40nV/√Hz |
| Minimum Input Voltage | ±1 (Dual) V, 2 (Single) V |
