Units	Per unit	Per Tube**
50 - 50	€0.361	€18.05
100 - 200	€0.352	€17.60
250 - 450	€0.342	€17.10
500 - 700	€0.334	€16.70
750 +	€0.325	€16.25

Select all	Attribute	Value
	Brand	Texas Instruments
	Mounting Type	Through Hole
	Package Type	PDIP
	Power Supply Type	Dual
	Number of Channels per Chip	1
	Pin Count	8
	Typical Gain Bandwidth Product	3MHz
	Typical Dual Supply Voltage	±12 V, ±15 V, ±5 V, ±9 V
	Typical Slew Rate	13V/µs
	Maximum Operating Temperature	+70 °C
	Minimum Operating Temperature	0 °C
	Rail to Rail	No
	Typical Voltage Gain	106 dB
	Length	9.81mm
	Typical Input Voltage Noise Density	18nV/√Hz
	Dimensions	9.81 x 6.35 x 4.57mm
	Width	6.35mm
	Height	4.57mm

	Select all
	Brand Texas Instruments
	Mounting Type Through Hole
	Package Type PDIP
	Power Supply Type Dual
	Number of Channels per Chip 1
	Pin Count 8
	Typical Gain Bandwidth Product 3MHz
	Typical Dual Supply Voltage ±12 V, ±15 V, ±5 V, ±9 V
	Typical Slew Rate 13V/µs
	Maximum Operating Temperature +70 °C
	Minimum Operating Temperature 0 °C
	Rail to Rail No
	Typical Voltage Gain 106 dB
	Length 9.81mm
	Typical Input Voltage Noise Density 18nV/√Hz
	Dimensions 9.81 x 6.35 x 4.57mm
	Width 6.35mm
	Height 4.57mm

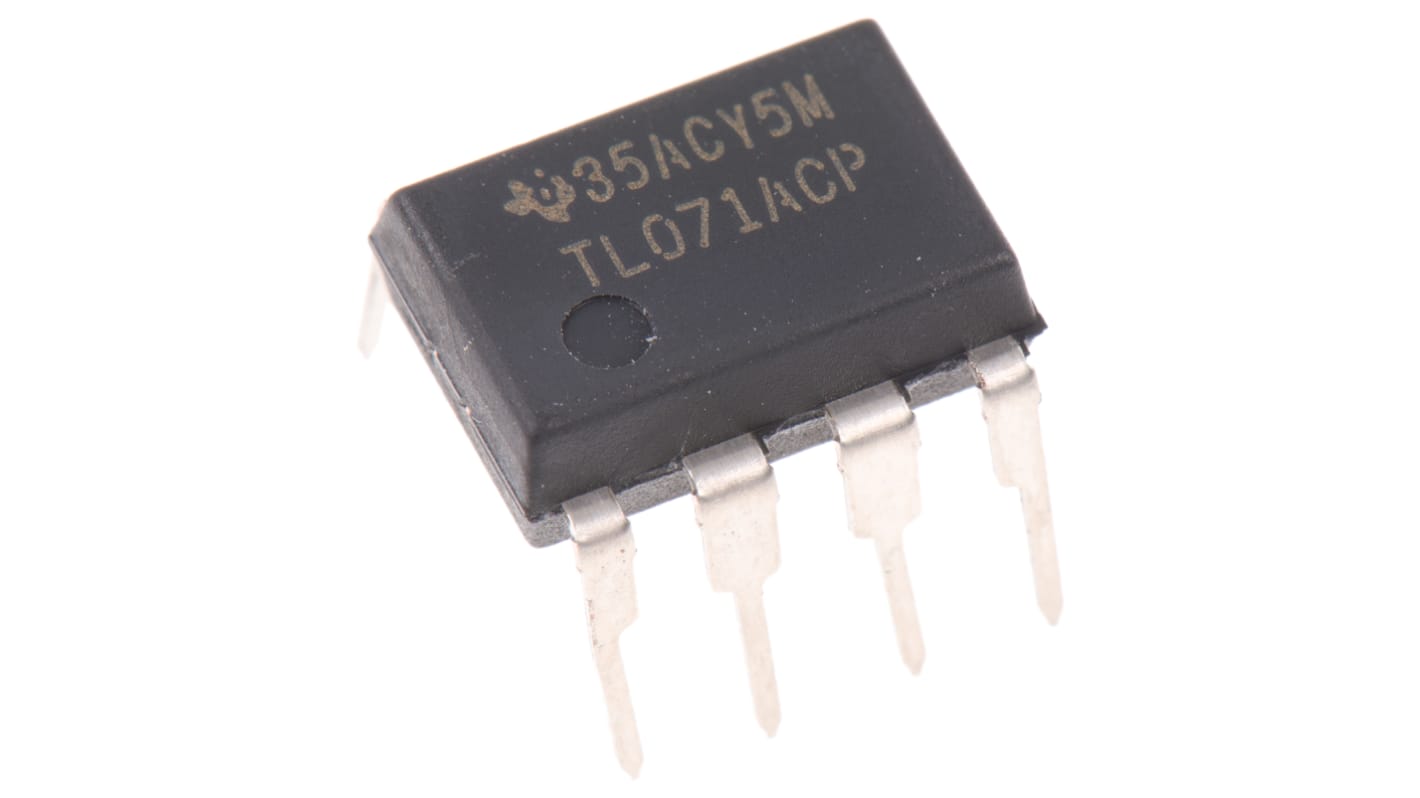

TL071ACP Texas Instruments, Op Amp, 3MHz, 8-Pin PDIP

JFET Input Op Amp, TL070 & TL080 Families
