Select all	Attribute	Value
	Brand	STMicroelectronics
	Amplifier Type	Dual Operational
	Mounting Type	Surface Mount
	Package Type	TSSOP
	Power Supply Type	Single
	Number of Channels per Chip	2
	Pin Count	8
	Typical Single Supply Voltage	3 → 30 V
	Typical Gain Bandwidth Product	1.1MHz
	Output Type	Swing
	Typical Slew Rate	0.6V/µs
	Maximum Operating Frequency	100 kHz
	Maximum Operating Temperature	+105 °C
	Minimum Operating Temperature	-40 °C
	Output Current	20 (Sink) mA, 60 (Source) mA
	Typical Voltage Gain	100 dB
	Maximum Input Voltage	30 V
	Offset Voltage	3mV
	Minimum Input Voltage	3 V
	Dimensions	4.5 x 3.1 x 1.05mm
	Typical Input Voltage Noise Density	55nV/√Hz
	Input Offset Current	10nA
	Input Voltage Range	3 → 30 V
	Width	3.1mm
	Length	4.5mm
	Height	1.05mm

	Select all
	Brand STMicroelectronics
	Amplifier Type Dual Operational
	Mounting Type Surface Mount
	Package Type TSSOP
	Power Supply Type Single
	Number of Channels per Chip 2
	Pin Count 8
	Typical Single Supply Voltage 3 → 30 V
	Typical Gain Bandwidth Product 1.1MHz
	Output Type Swing
	Typical Slew Rate 0.6V/µs
	Maximum Operating Frequency 100 kHz
	Maximum Operating Temperature +105 °C
	Minimum Operating Temperature -40 °C
	Output Current 20 (Sink) mA, 60 (Source) mA
	Typical Voltage Gain 100 dB
	Maximum Input Voltage 30 V
	Offset Voltage 3mV
	Minimum Input Voltage 3 V
	Dimensions 4.5 x 3.1 x 1.05mm
	Typical Input Voltage Noise Density 55nV/√Hz
	Input Offset Current 10nA
	Input Voltage Range 3 → 30 V
	Width 3.1mm
	Length 4.5mm
	Height 1.05mm

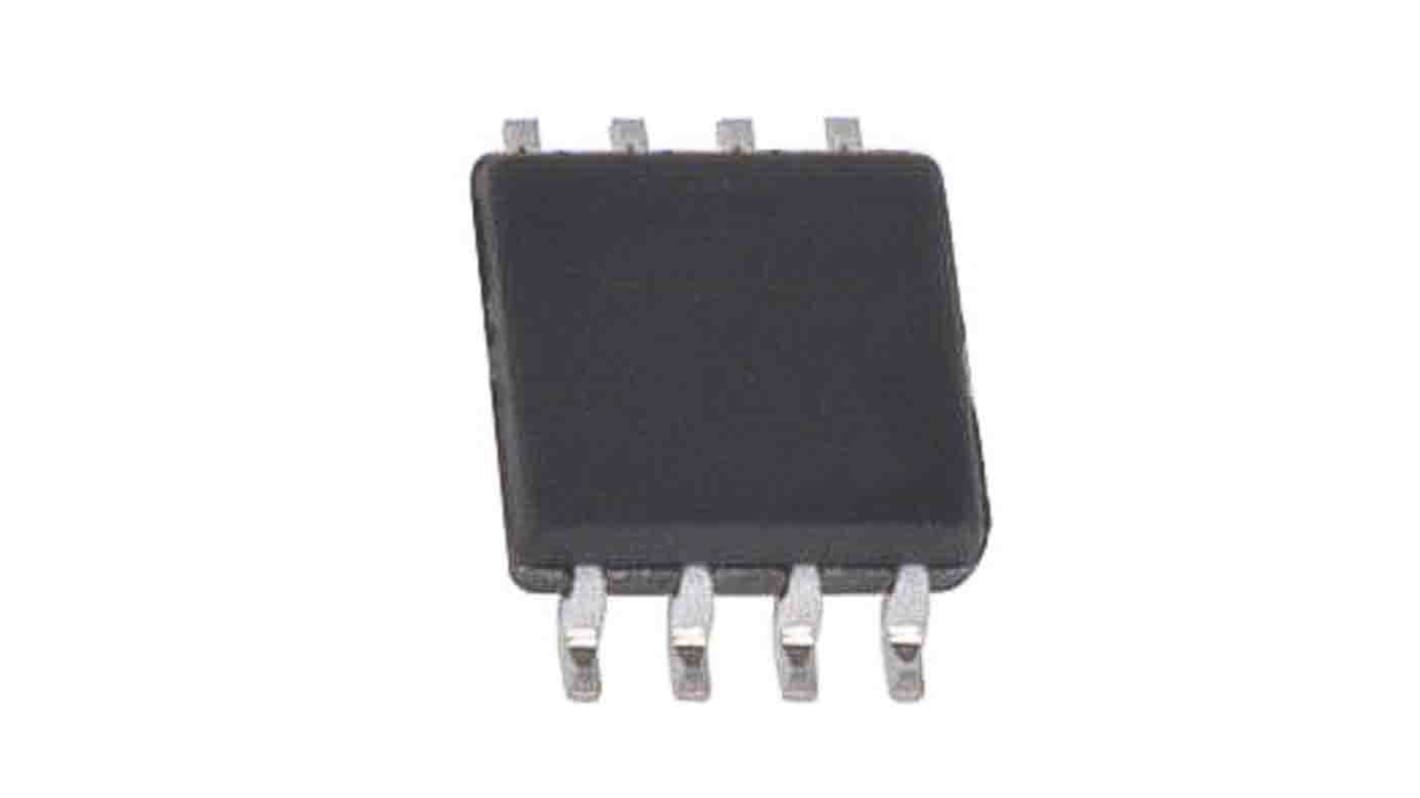

LM258APT STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin TSSOP
