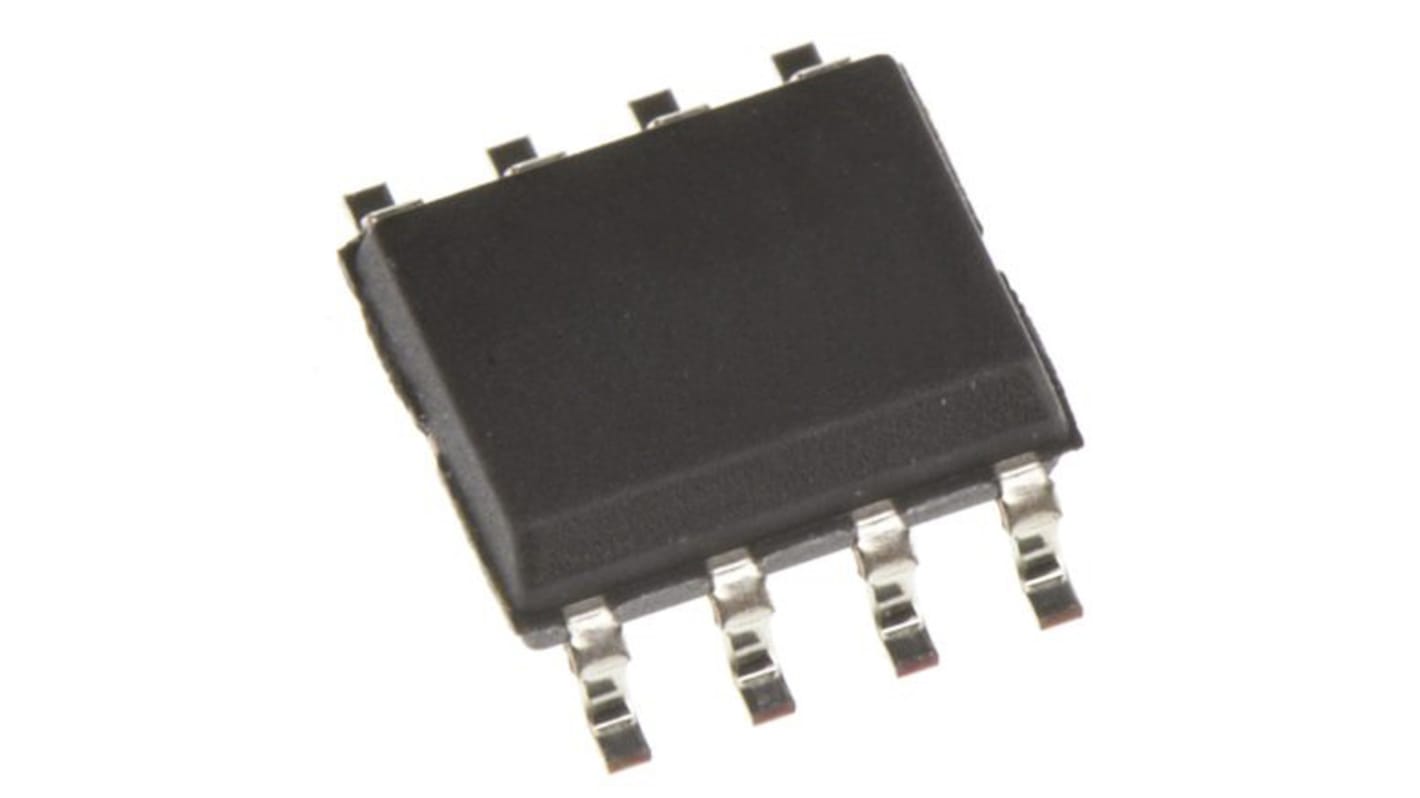

LM258AST STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin MiniSO

RS Stock No.:: 189-2092
Mfr. Part No.:: LM258AST
Manufacturer:: STMicroelectronics

LM258AST STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin MiniSO

Bulk discount available

Price Each (In a Pack of 25)

€1.008

(exc. VAT)

€1.24

(inc. VAT)

4975 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Pack**
25 - 75	€1.008	€25.20
100 - 975	€0.607	€15.175
1000 - 3975	€0.447	€11.175
4000 - 7975	€0.388	€9.70
8000 +	€0.378	€9.45

**price indicative

RS Stock No.:: 189-2092
Mfr. Part No.:: LM258AST
Manufacturer:: STMicroelectronics

Datasheet LM258AST

Attribute	Value
Amplifier Type	Dual Operational
Mounting Type	Surface Mount
Package Type	MiniSO
Power Supply Type	Single
Number of Channels per Chip	2
Pin Count	8
Typical Single Supply Voltage	3 → 30 V
Typical Gain Bandwidth Product	1.1MHz
Output Type	Swing
Typical Slew Rate	0.6V/µs
Maximum Operating Frequency	100 kHz
Maximum Operating Temperature	+105 °C
Minimum Operating Temperature	-40 °C
Output Current	20 (Sink) mA, 60 (Source) mA
Typical Voltage Gain	100 dB
Maximum Input Voltage	30 V
Offset Voltage	3mV
Dimensions	3.2 x 3.1 x 0.95mm
Input Offset Current	10nA
Length	3.2mm
Height	0.95mm
Width	3.1mm
Input Voltage Range	3 → 30 V
Typical Input Voltage Noise Density	55nV/√Hz
Minimum Input Voltage	3 V

LM258AST STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin MiniSO
