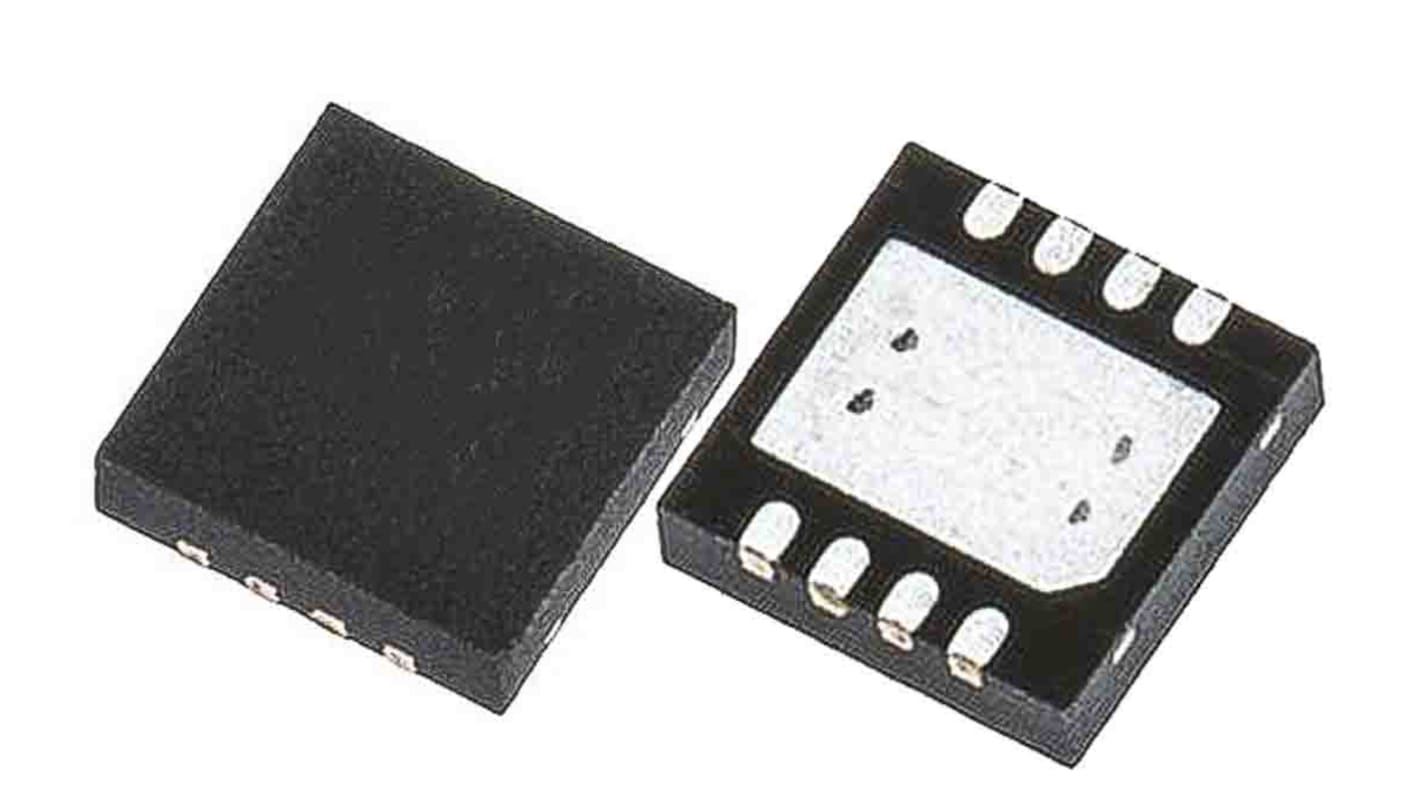

LM258QT STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin DFN

RS Stock No.:: 189-2107
Mfr. Part No.:: LM258QT
Manufacturer:: STMicroelectronics

LM258QT STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin DFN

Bulk discount available

Price Each (In a Pack of 25)**

€0.438

(exc. VAT)

€0.539

(inc. VAT)

Temporarily out of stock - back order for despatch 02-03-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit	Per Pack**
25 - 75	€0.438	€10.95
100 - 975	€0.261	€6.525
1000 - 2975	€0.192	€4.80
3000 - 8975	€0.168	€4.20
9000 +	€0.162	€4.05

**price indicative

RS Stock No.:: 189-2107
Mfr. Part No.:: LM258QT
Manufacturer:: STMicroelectronics

Datasheet LM258QT

Attribute	Value
Amplifier Type	Dual Operational
Mounting Type	Surface Mount
Package Type	DFN
Power Supply Type	Single
Number of Channels per Chip	2
Pin Count	8
Typical Single Supply Voltage	3 → 30 V
Typical Gain Bandwidth Product	1.1MHz
Output Type	Swing
Typical Slew Rate	0.6V/µs
Maximum Operating Frequency	100 kHz
Maximum Operating Temperature	+105 °C
Minimum Operating Temperature	-40 °C
Offset Voltage	5mV
Typical Voltage Gain	100 dB
Maximum Input Voltage	30 V
Output Current	20 (Sink) mA, 60 (Source) mA
Minimum Input Voltage	3 V
Dimensions	2.15 x 2.15 x 0.55mm
Input Voltage Range	3 → 30 V
Input Offset Current	30nA
Width	2.15mm
Typical Input Voltage Noise Density	55nV/√Hz
Length	2.15mm
Height	0.55mm

LM258QT STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin DFN
