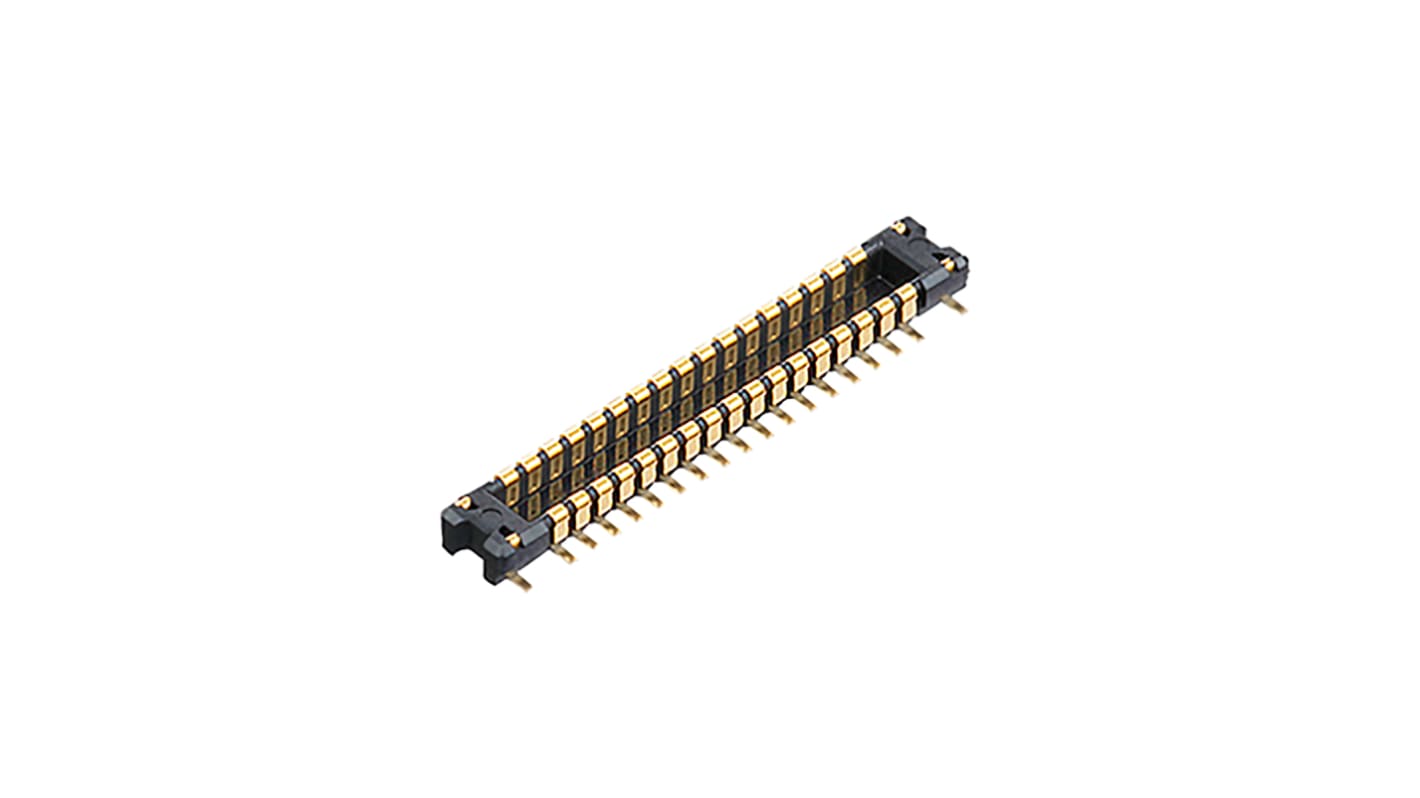

Panasonic S35 Series Straight Surface Mount PCB Header, 24 Contact(s), 0.35mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 179-0137
- Mfr. Part No.:
- AXG224224
- Manufacturer:
- Panasonic
Temporarily out of stock - back order for despatch 29-07-2024, delivery within 2 working days
Added
Price Each (On a Reel of 500)
€0.785
(exc. VAT)
€0.966
(inc. VAT)
| Units | Per unit | Per Reel* |
| 500 - 500 | €0.785 | €392.50 |
| 1000 - 2000 | €0.739 | €369.50 |
| 2500 - 4500 | €0.699 | €349.50 |
| 5000 + | €0.663 | €331.50 |
| *price indicative | ||
- RS Stock No.:
- 179-0137
- Mfr. Part No.:
- AXG224224
- Manufacturer:
- Panasonic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
FEATURES
Slim: width 1.7mm
Low profile construction: mated height 0.6 mm/0.8 mm
“TOUGH CONTACT” construction withstands tough
environments despite being slim and low profile.
For 0.6mm mated height, thanks to our proprietary “Fine
fitting” construction, high removability with a nice click feel
is maintained while being low profile.
APPLICATIONS
Wearable devices, smartphones and hearable devices
Slim: width 1.7mm
Low profile construction: mated height 0.6 mm/0.8 mm
“TOUGH CONTACT” construction withstands tough
environments despite being slim and low profile.
For 0.6mm mated height, thanks to our proprietary “Fine
fitting” construction, high removability with a nice click feel
is maintained while being low profile.
APPLICATIONS
Wearable devices, smartphones and hearable devices
Specifications
Attribute | Value |
|---|---|
| Series | S35 |
| Pitch | 0.35mm |
| Number of Contacts | 24 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Current Rating | 5.0A |
| Voltage Rating | 60.0 V |
