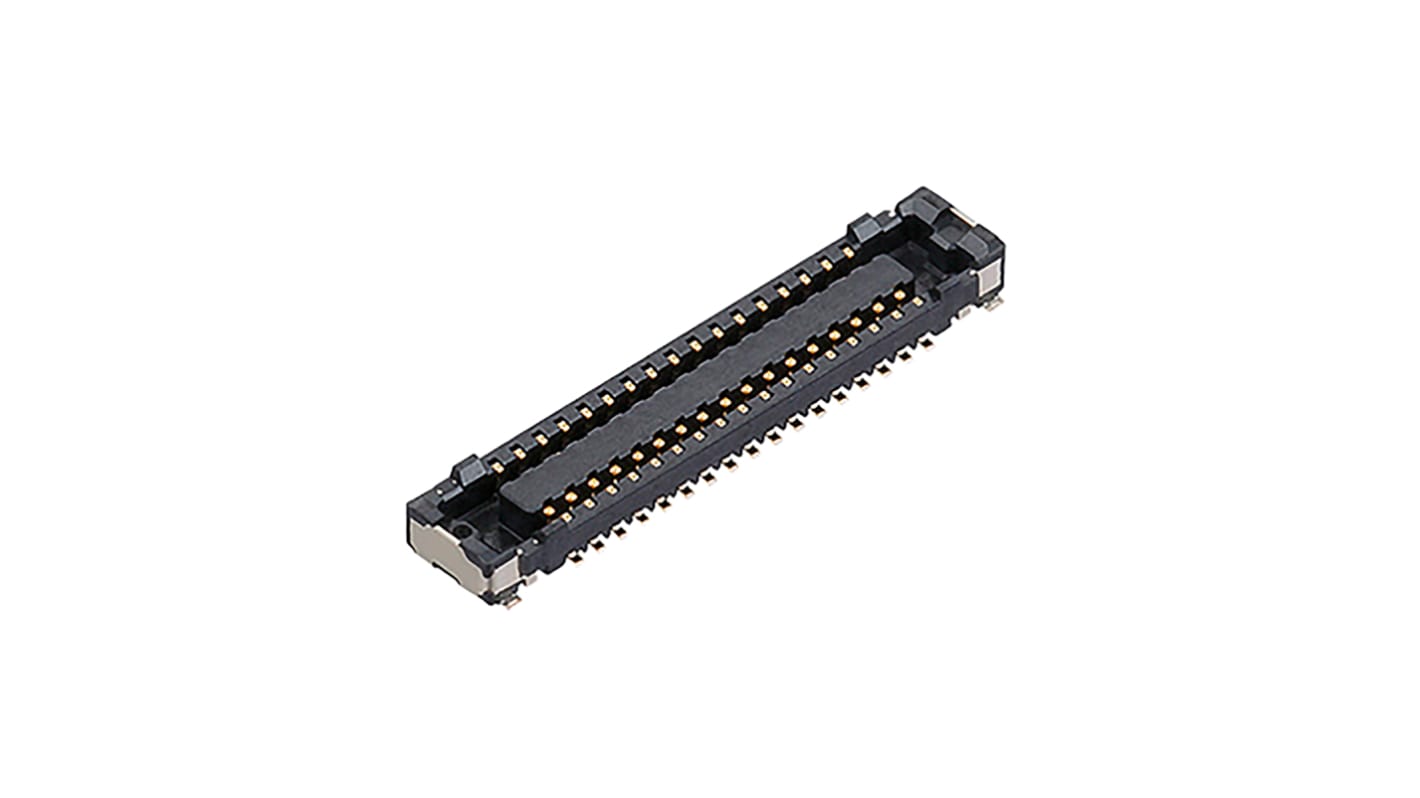

Panasonic S35 Series Surface Mount PCB Socket, 24-Contact, 2-Row, 0.35mm Pitch, Solder Termination
- RS Stock No.:
- 179-0125
- Mfr. Part No.:
- AXG124224
- Manufacturer:
- Panasonic
Temporarily out of stock - back order for despatch 06-08-2024, delivery within 2 working days
Added
Price Each (On a Reel of 500)
€0.592
(exc. VAT)
€0.728
(inc. VAT)
| Units | Per unit | Per Reel* |
| 500 - 500 | €0.592 | €296.00 |
| 1000 - 2000 | €0.576 | €288.00 |
| 2500 - 4500 | €0.56 | €280.00 |
| 5000 + | €0.545 | €272.50 |
| *price indicative | ||
- RS Stock No.:
- 179-0125
- Mfr. Part No.:
- AXG124224
- Manufacturer:
- Panasonic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
FEATURES
Slim: width 1.7mm
Low profile construction: mated height 0.6 mm/0.8 mm
“TOUGH CONTACT” construction withstands tough
environments despite being slim and low profile.
For 0.6mm mated height, thanks to our proprietary “Fine
fitting” construction, high removability with a nice click feel
is maintained while being low profile.
APPLICATIONS
Wearable devices, smartphones and hearable devices
Slim: width 1.7mm
Low profile construction: mated height 0.6 mm/0.8 mm
“TOUGH CONTACT” construction withstands tough
environments despite being slim and low profile.
For 0.6mm mated height, thanks to our proprietary “Fine
fitting” construction, high removability with a nice click feel
is maintained while being low profile.
APPLICATIONS
Wearable devices, smartphones and hearable devices
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 24 |
| Number of Rows | 2 |
| Pitch | 0.35mm |
| Type | Socket |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Stacking Height | 0.8mm |
| Current Rating | 12A |
| Voltage Rating | 60 V |
| Series | S35 |
| Contact Material | Copper |
