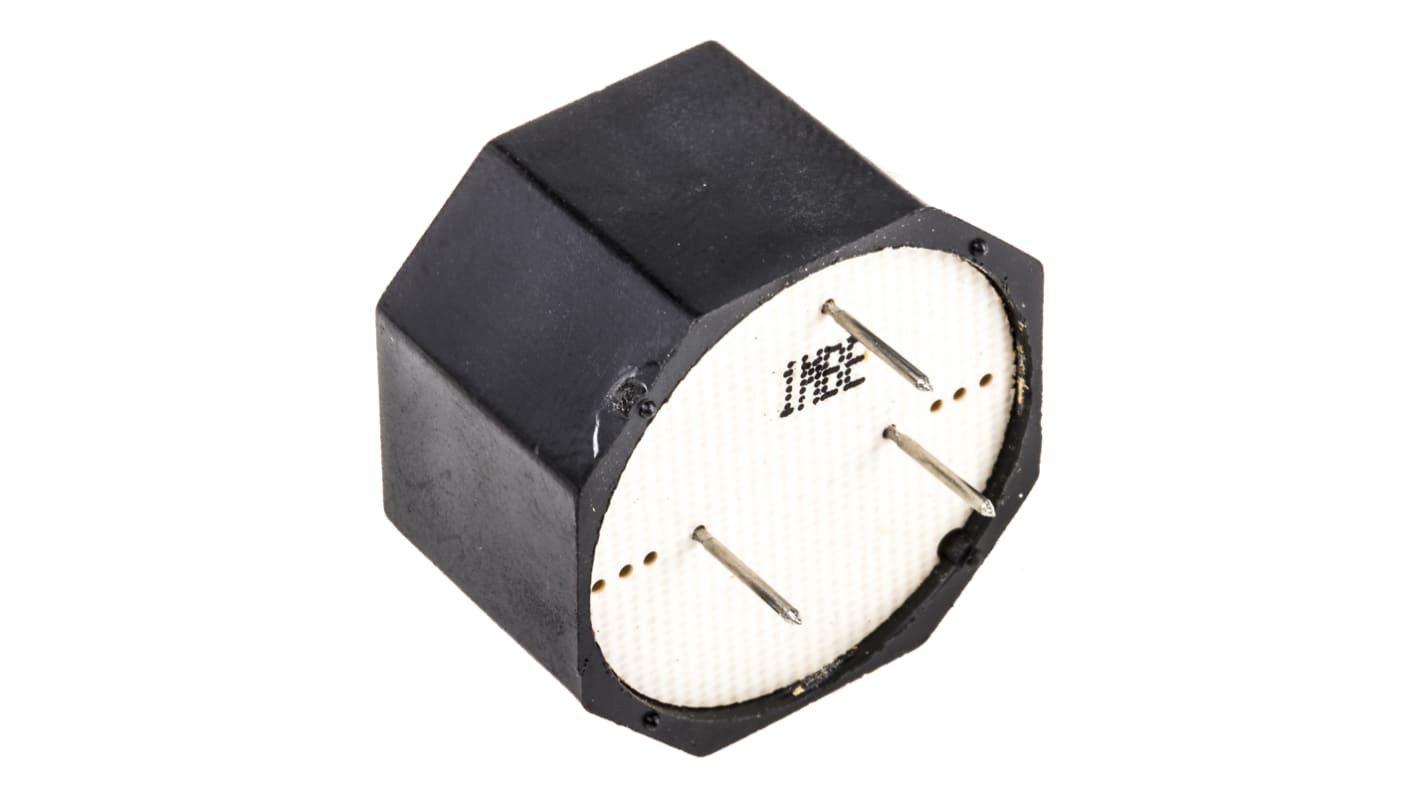

Sonitron 92dB Through Hole Intermittent Internal Piezo Buzzer, 24 x 15.5mm, 5V dc Min, 24V dc Max
- RS Stock No.:
- 172-7560
- Mfr. Part No.:
- SMAI-24-P10
- Manufacturer:
- Sonitron
12 Within 2 working day(s) (EU stock)
135 Within 2 working day(s) (EU stock)
Added
Price Each
€9.42
(exc. VAT)
€11.59
(inc. VAT)
| Units | Per unit |
| 1 - 9 | €9.42 |
| 10 - 24 | €9.05 |
| 25 - 49 | €8.57 |
| 50 - 99 | €8.09 |
| 100 + | €7.44 |
- RS Stock No.:
- 172-7560
- Mfr. Part No.:
- SMAI-24-P10
- Manufacturer:
- Sonitron
Technical data sheets
Legislation and Compliance
Product Details
Square PCB mount multifunction buzzer
Square cased PCB mounting with three or more pins
High sound output multifunction buzzers
Internal circuitry for dc operation
High sound output multifunction buzzers
Internal circuitry for dc operation
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Minimum Supply Voltage | 5V dc |
| Maximum Supply Voltage | 24V dc |
| Sound Level | 92dB |
| Drive Type | Internal |
| Tone Type | Intermittent |
| Diameter | 24mm |
| Height | 15.5mm |
| Dimensions | 24 x 15.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Maximum Frequency | 4.025kHz |
| Supply Current | 6.2mA |
| Minimum Frequency | 2975Hz |
