Units	Per unit
250 - 450	€0.252
500 - 950	€0.229
1000 - 1950	€0.21
2000 +	€0.194

Select all	Attribute	Value
	Brand	ROHM
	Diode Configuration	Single
	Number of Elements per Chip	1
	Application	High Frequency Switching
	Maximum Forward Current	100mA
	Maximum Reverse Voltage	50V
	Maximum Forward Voltage	1V
	Mounting Type	Surface Mount
	Package Type	SOT-723
	Pin Count	2
	Maximum Diode Capacitance	0.8pF
	Maximum Series Resistance @ Maximum IF	2 Ω @ 3 mA
	Dimensions	1.05 x 0.65 x 0.55mm
	Height	0.55mm
	Length	1.05mm
	Maximum Operating Temperature	+150 °C
	Width	0.65mm

	Select all
	Brand ROHM
	Diode Configuration Single
	Number of Elements per Chip 1
	Application High Frequency Switching
	Maximum Forward Current 100mA
	Maximum Reverse Voltage 50V
	Maximum Forward Voltage 1V
	Mounting Type Surface Mount
	Package Type SOT-723
	Pin Count 2
	Maximum Diode Capacitance 0.8pF
	Maximum Series Resistance @ Maximum IF 2 Ω @ 3 mA
	Dimensions 1.05 x 0.65 x 0.55mm
	Height 0.55mm
	Length 1.05mm
	Maximum Operating Temperature +150 °C
	Width 0.65mm

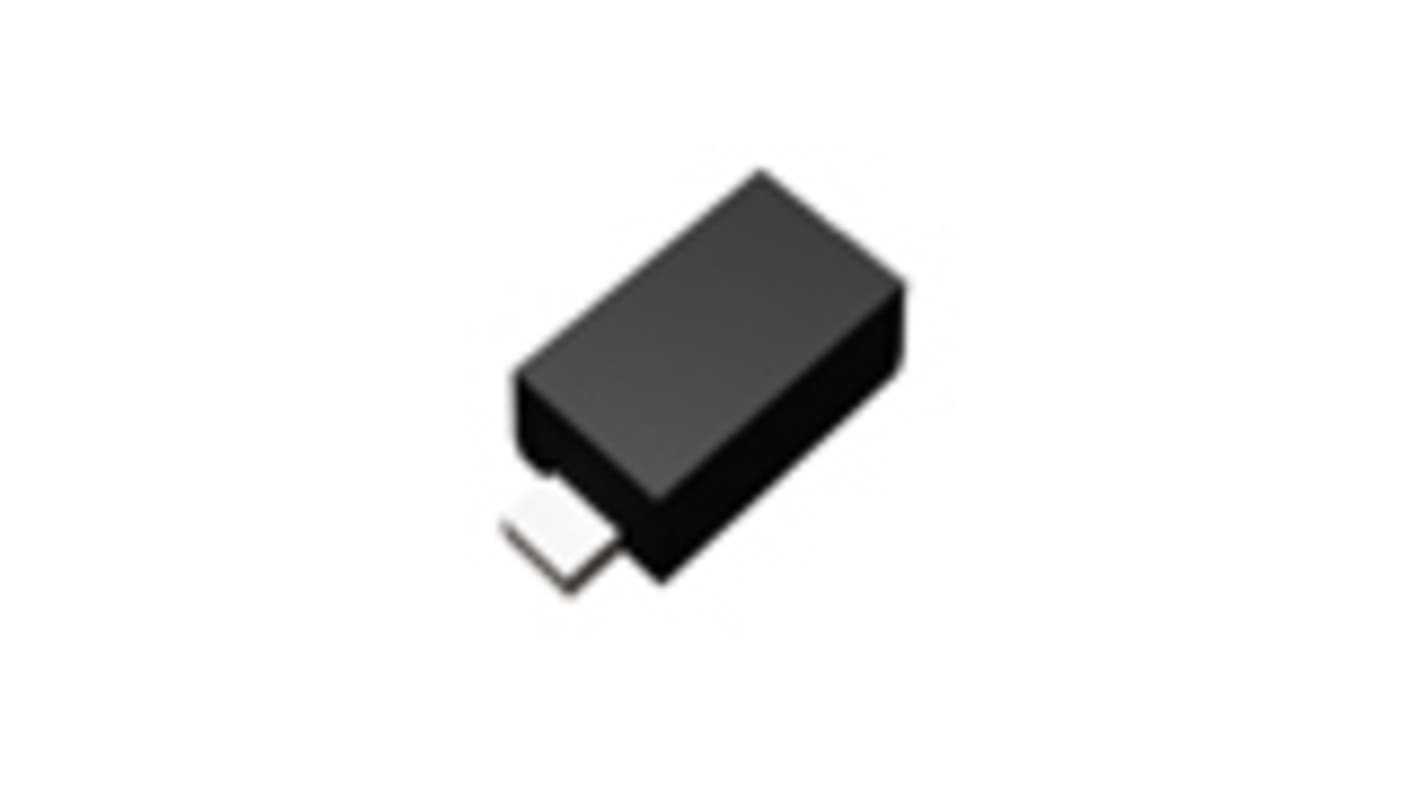

ROHM RN141GT2R PIN Diode, 100mA, 50V, 2-Pin SOT-723
