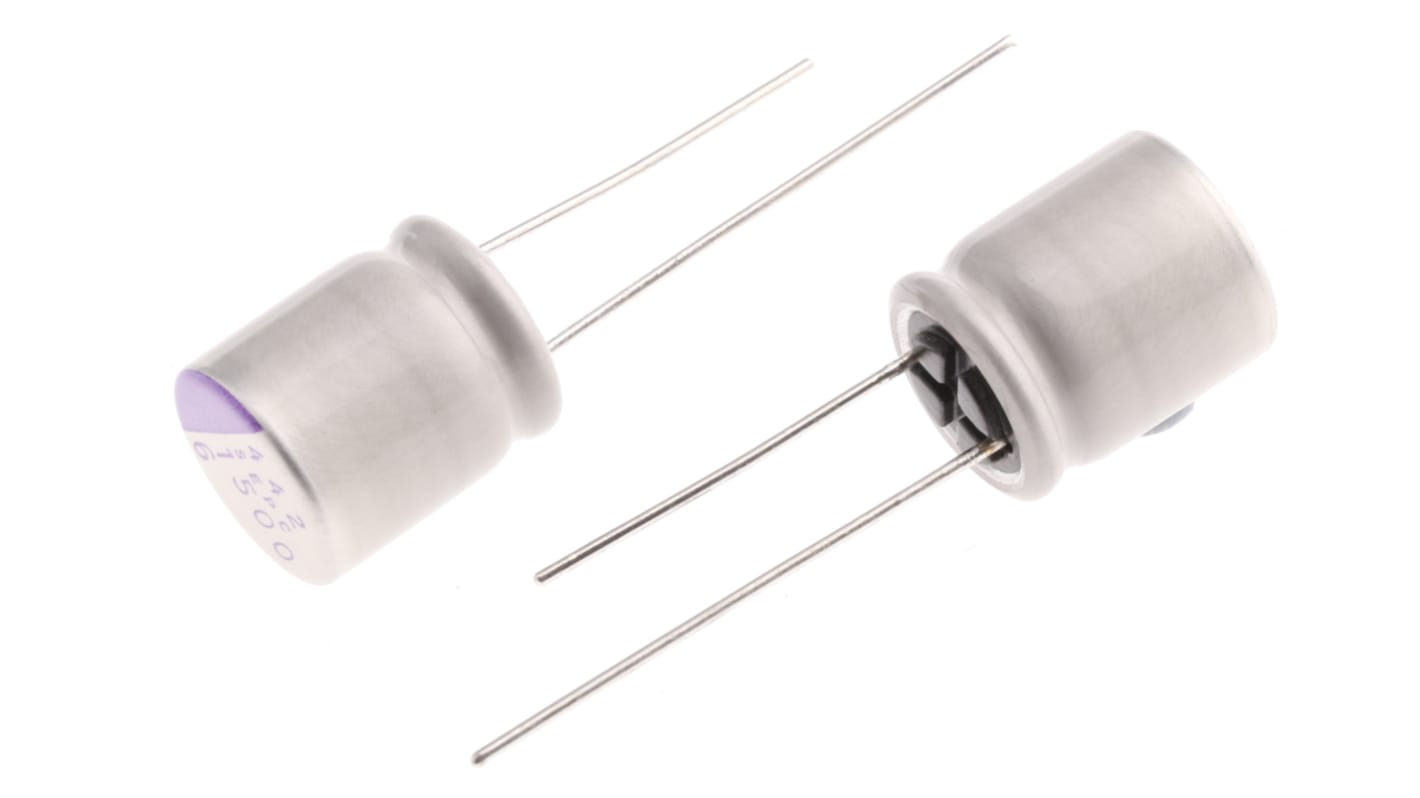

Panasonic 1.5mF Through Hole Polymer Capacitor, 6.3V dc
- RS Stock No.:
- 100-0063
- Mfr. Part No.:
- 6SEPC1500M
- Manufacturer:
- Panasonic
Bulk discount available
Subtotal (1 bag of 200 units)*
€234.00
(exc. VAT)
€288.00
(inc. VAT)
Temporarily out of stock
- Shipping from 23 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 200 - 200 | €1.17 | €234.00 |
| 400 - 600 | €1.118 | €223.60 |
| 800 - 1800 | €1.064 | €212.80 |
| 2000 + | €1.039 | €207.80 |
*price indicative
- RS Stock No.:
- 100-0063
- Mfr. Part No.:
- 6SEPC1500M
- Manufacturer:
- Panasonic
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Technology | Polymer | |
| Capacitance | 1.5mF | |
| Voltage | 6.3V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 10mΩ | |
| Lead Pitch | 5mm | |
| Tolerance | ±20% | |
| Length | 13mm | |
| Height | 13mm | |
| Maximum Operating Temperature | +105°C | |
| Dimensions | 10 (Dia) x 13mm | |
| Series | SEPC | |
| Electrolyte Type | Solid | |
| Dissipation Factor | 10% | |
| Diameter | 10mm | |
| Leakage Current | 1890 μA | |
| Ripple Current | 5.56A | |
| Minimum Operating Temperature | -55°C | |
| Polarised | Polar | |
| Lifetime | 5000h | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Technology Polymer | ||
Capacitance 1.5mF | ||
Voltage 6.3V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 10mΩ | ||
Lead Pitch 5mm | ||
Tolerance ±20% | ||
Length 13mm | ||
Height 13mm | ||
Maximum Operating Temperature +105°C | ||
Dimensions 10 (Dia) x 13mm | ||
Series SEPC | ||
Electrolyte Type Solid | ||
Dissipation Factor 10% | ||
Diameter 10mm | ||
Leakage Current 1890 μA | ||
Ripple Current 5.56A | ||
Minimum Operating Temperature -55°C | ||
Polarised Polar | ||
Lifetime 5000h | ||
- COO (Country of Origin):
- JP
OSCON Solid Electrolytic radial SEPC series
Panasonic OS-CON SEPC electrolytic capacitors have a solid aluminium construction with a high conductive polymer. These aluminium capacitors offer super low ESR between 5 mΩ and 24 mΩ and feature large capacitance up to 2700μF.
5000 h guarantee at +105°C
Excellent noise reduction capability
Long life span
High voltage
High reliability
High ripple current
Radial lead type
Halogen free
Excellent noise reduction capability
Long life span
High voltage
High reliability
High ripple current
Radial lead type
Halogen free
Applications
These radial capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. SEPC aluminium capacitors are also suitable for home appliances such as air conditioners and home information appliances.
Solid Radial 105°C
