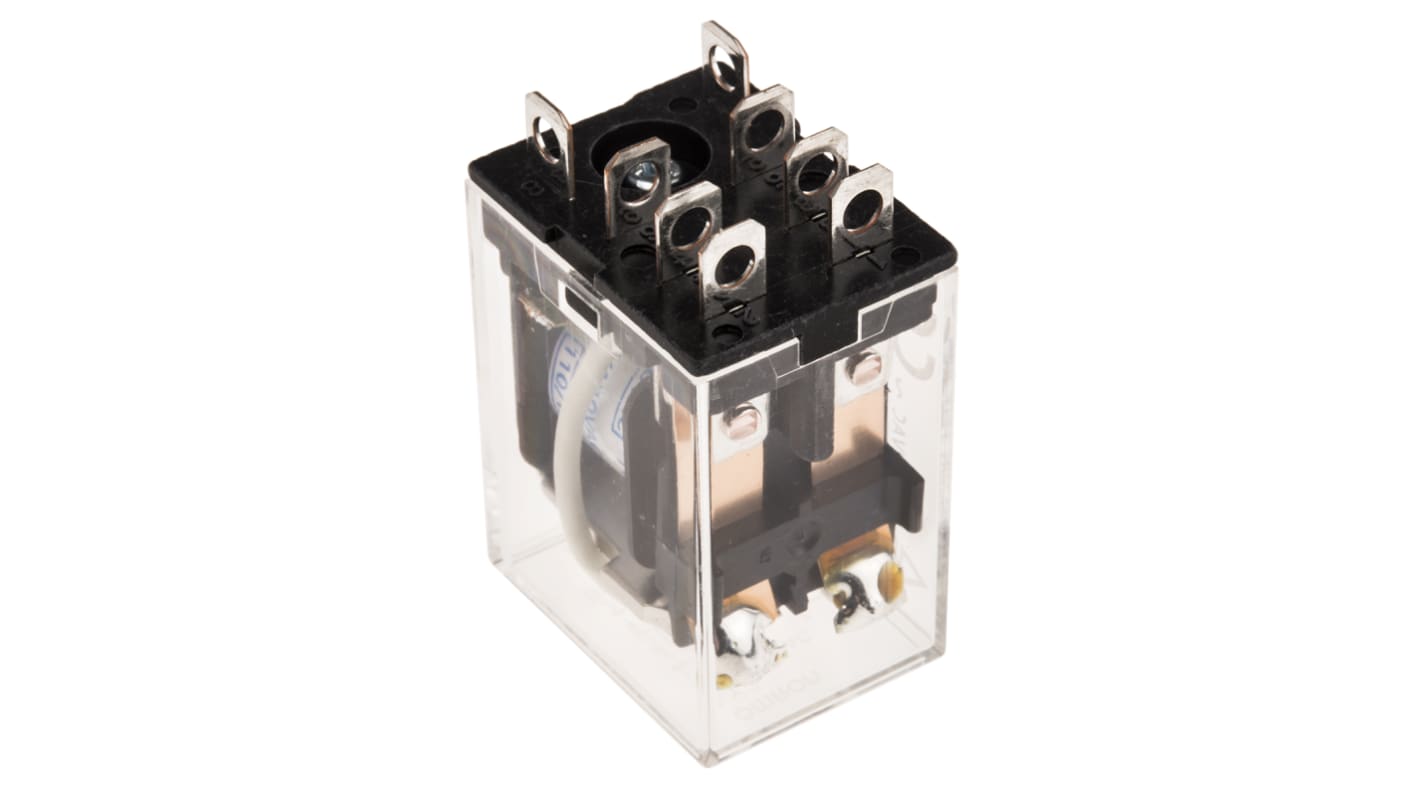

Omron Plug In Power Relay, 110 → 120V ac Coil, 10A Switching Current, DPDT

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

VDE, UL, CSA, TUV

This power relay is designed for consistent performance in general-purpose applications. The DPDT (Double Pole Double Throw) configuration provides flexible switching capabilities, accommodating high current requirements. Measuring 28mm in length, 21.5mm in depth, and 42.4mm in height, this plug-in relay operates within a coil voltage range of 110 to 120 V AC, ensuring compatibility with various electrical systems.

• Operates at high currents, supporting system functionality
• Plug-in design for easy installation and maintenance
• Wide coil voltage range for versatility
• DPDT configuration for flexible switching options
• Robust contact material for long-lasting performance

• Automation systems requiring efficient switching
• Controlling motors and lighting circuits
• Electrical panels and devices
• Industrial machinery for safety and control

Yes, it operates effectively between 110 and 120 V AC.

This relay is optimised for AC applications.

It can operate effectively up to +55°C.

UL; CSA; VDE; SEV
