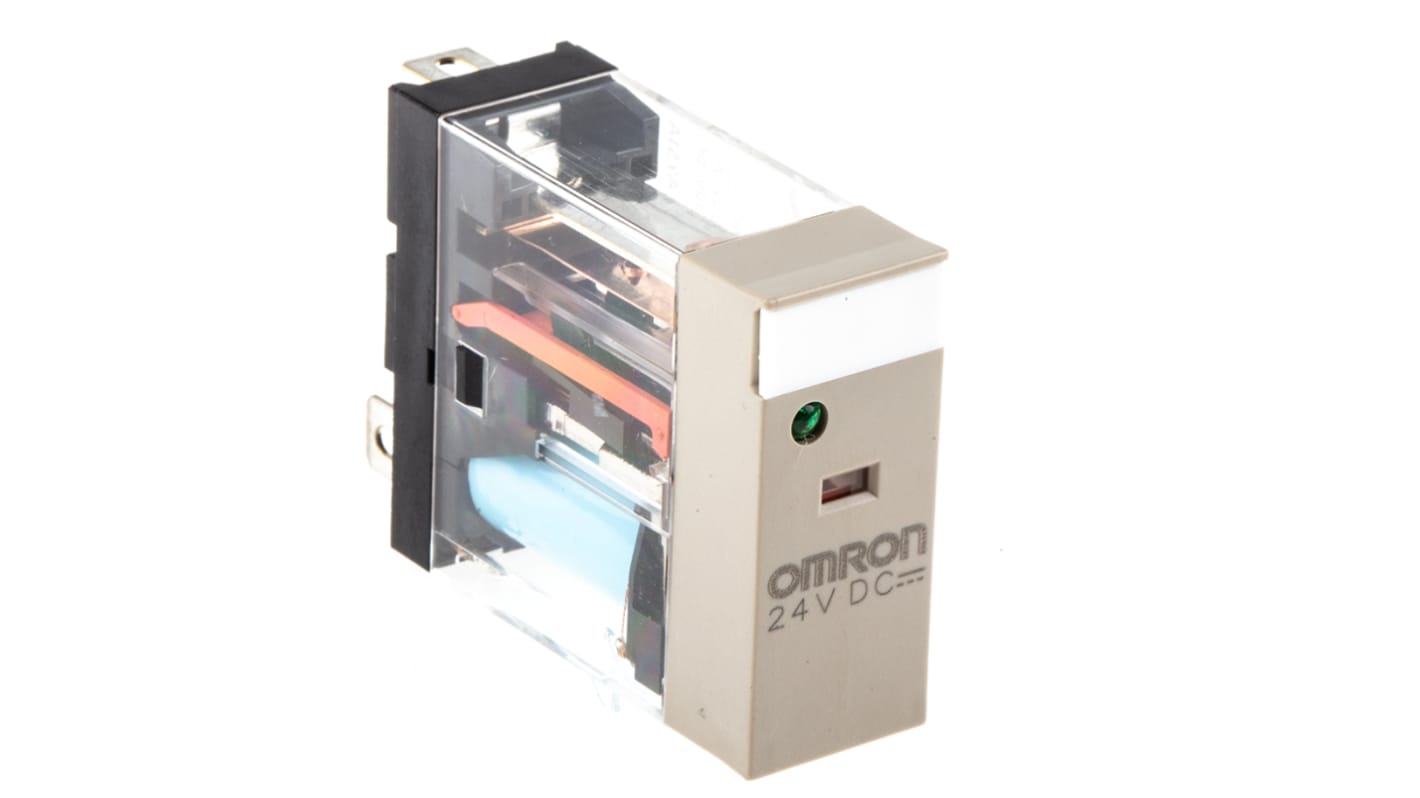

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT

RS Stock No.:: 353-837
Mfr. Part No.:: G2R-1-SN DC24(S)
Manufacturer:: Omron

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT

Bulk discount available

Subtotal (1 unit)*

€9.22

(exc. VAT)

€11.34

(inc. VAT)

In Stock

52 unit(s) ready to ship
Plus 2,966 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	€9.22
5 - 9	€8.94
10 +	€8.54

*price indicative

RS Stock No.:: 353-837
Mfr. Part No.:: G2R-1-SN DC24(S)
Manufacturer:: Omron

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 10A Maximum Switching Current, LED Indicator - G2R-1 Series - G2R-1-SN 24DC(S)

Want to keep your electrical circuits running smoothly? Pick up this power relay from OMRON. When mounted into a push-in socket (such as 111-3066), it saves time and reduces your wiring needs by up to 60%. Silver alloy contacts stand their ground against corrosion and impact, so you can rest assured of long-lasting use. LED and mechanical operation indicators display its status, making troubleshooting a walk in the park. You can use this versatile relay in equipment like vending machines and packaging systems.

Features & Benefits

• Insulation resistance of 1000MΩ, so it's finger-safe and you're protected from electric shocks
• Cadmium-free and lead-free material so it won't release toxic fumes
• Plug-in termination type for easy and direct installation without the need for complex tools
• Safe to use in hazardous conditions, thanks to an operating temperature range between -40°C and +70°C

Applications

• Pharmaceutical industry
• Oil refineries
• Industrial automation

What's a non-latching relay?

A non-latching relay, like this device, reverts to its initial resting position when power is turned off. This makes it a reliable choice for machine functions with short time delays.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	SPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	1
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	380V ac
	Maximum Switching Voltage DC	125V dc
	Maximum Switching Current DC	10 A
	Maximum Switching Current AC	10 A
	Length	29mm
	Coil Resistance	1100Ω
	Coil Power	530mW
	Standards Met	CE, CSA
	Height	29mm
	Series	G2R-1
	Isolation Coil To Contact	5kV ac
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-40°C
	Contact Material	Silver Alloy
	Life	1000000 (Electrical) cycles, 20000000 (Mechanical) cycles
	Depth	13mm
	Maximum Switching Power DC	300 W
	Maximum Switching Power AC	2.5 kVA
	Width	40.5mm
	Dimensions	40.5 x 29 x 13mm
	Application	Power

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration SPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 1
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 380V ac
	Maximum Switching Voltage DC 125V dc
	Maximum Switching Current DC 10 A
	Maximum Switching Current AC 10 A
	Length 29mm
	Coil Resistance 1100Ω
	Coil Power 530mW
	Standards Met CE, CSA
	Height 29mm
	Series G2R-1
	Isolation Coil To Contact 5kV ac
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -40°C
	Contact Material Silver Alloy
	Life 1000000 (Electrical) cycles, 20000000 (Mechanical) cycles
	Depth 13mm
	Maximum Switching Power DC 300 W
	Maximum Switching Power AC 2.5 kVA
	Width 40.5mm
	Dimensions 40.5 x 29 x 13mm
	Application Power
