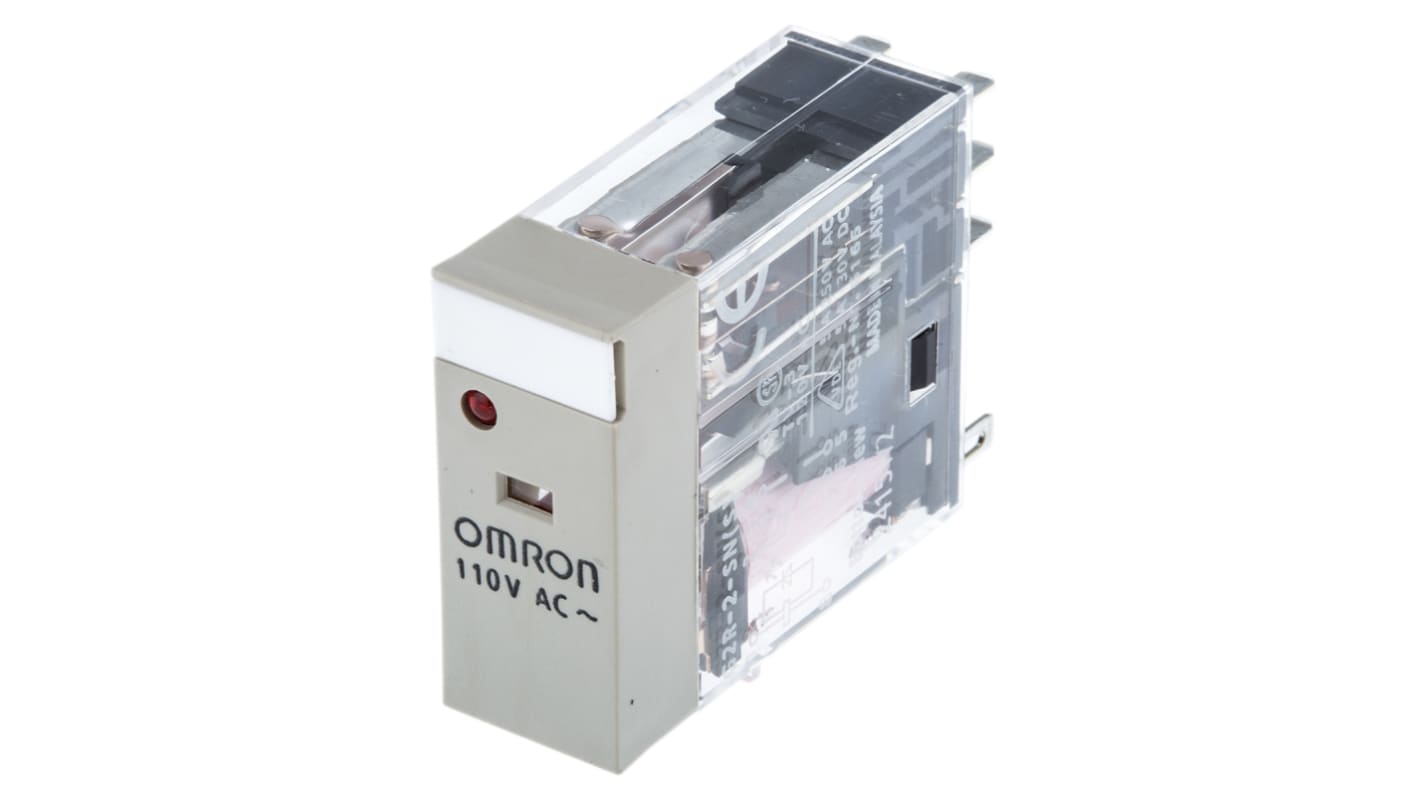

Omron Plug In Power Relay, 110V ac Coil, 5A Switching Current, DPDT

RS Stock No.:: 353-900
Mfr. Part No.:: G2R-2-SN AC110(S)
Manufacturer:: Omron

Omron Plug In Power Relay, 110V ac Coil, 5A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

€11.14

(exc. VAT)

€13.70

(inc. VAT)

In Stock

12 unit(s) ready to ship
Plus 275 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	€11.14
5 - 9	€10.80
10 +	€10.32

*price indicative

RS Stock No.:: 353-900
Mfr. Part No.:: G2R-2-SN AC110(S)
Manufacturer:: Omron

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 5556Ω Coil Resistance, 1.25kVA AC Maximum Switching Power - G2R-2 Series - G2R-2-SN AC110(S)

Keep your automated operation ticking over with this power relay from OMRON. It has a DPDT setup, so is suitable for simultaneously switching two circuits that need to work in unison. Thanks to its 110V AC coil voltage, this product is a handy all-rounder that's useful for high-power automation tasks like lighting, heating and motor functions. The plug-in installation method means it's easy to set up by hand and there's no need for specialist equipment.

Features & Benefits

• 0.53W power consumption makes it energy-efficient
• 15ms maximum operating time means you get a rapid response
• Compact dimensions of 29 (L) x 41.7 (H) x 13mm (D) mean it saves on space in busy systems
• Delivers reliable performance in temperatures between -40°C and +70°C

Applications

• Industrial power distribution
• Pharmaceutical manufacturing
• Aerospace engineering

What's the mechanical lifespan of this relay?

This relay delivers 10 million mechanical operations, so it's a dependable option when you need long-term performance.

How much does the assembly weigh?

This unit only weighs 20g, so it doesn't add unnecessary strain to your mounting surface.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	110V ac
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	5A
	Number of Poles	2
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Current DC	5 A
	Length	29mm
	Coil Resistance	5556Ω
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+70°C
	Depth	13mm
	Height	41.7mm
	Standards Met	CE, CSA
	Series	G2R-2
	Contact Material	Ag Alloy
	Maximum Switching Power AC	1.25 kVA
	Maximum Switching Power DC	150 W
	Dimensions	29 x 13 x 41.7mm
	Application	General Purpose

	Select all
	Brand Omron
	Coil Voltage 110V ac
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 5A
	Number of Poles 2
	Latching No
	Terminal Type Plug In
	Maximum Switching Current DC 5 A
	Length 29mm
	Coil Resistance 5556Ω
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +70°C
	Depth 13mm
	Height 41.7mm
	Standards Met CE, CSA
	Series G2R-2
	Contact Material Ag Alloy
	Maximum Switching Power AC 1.25 kVA
	Maximum Switching Power DC 150 W
	Dimensions 29 x 13 x 41.7mm
	Application General Purpose
