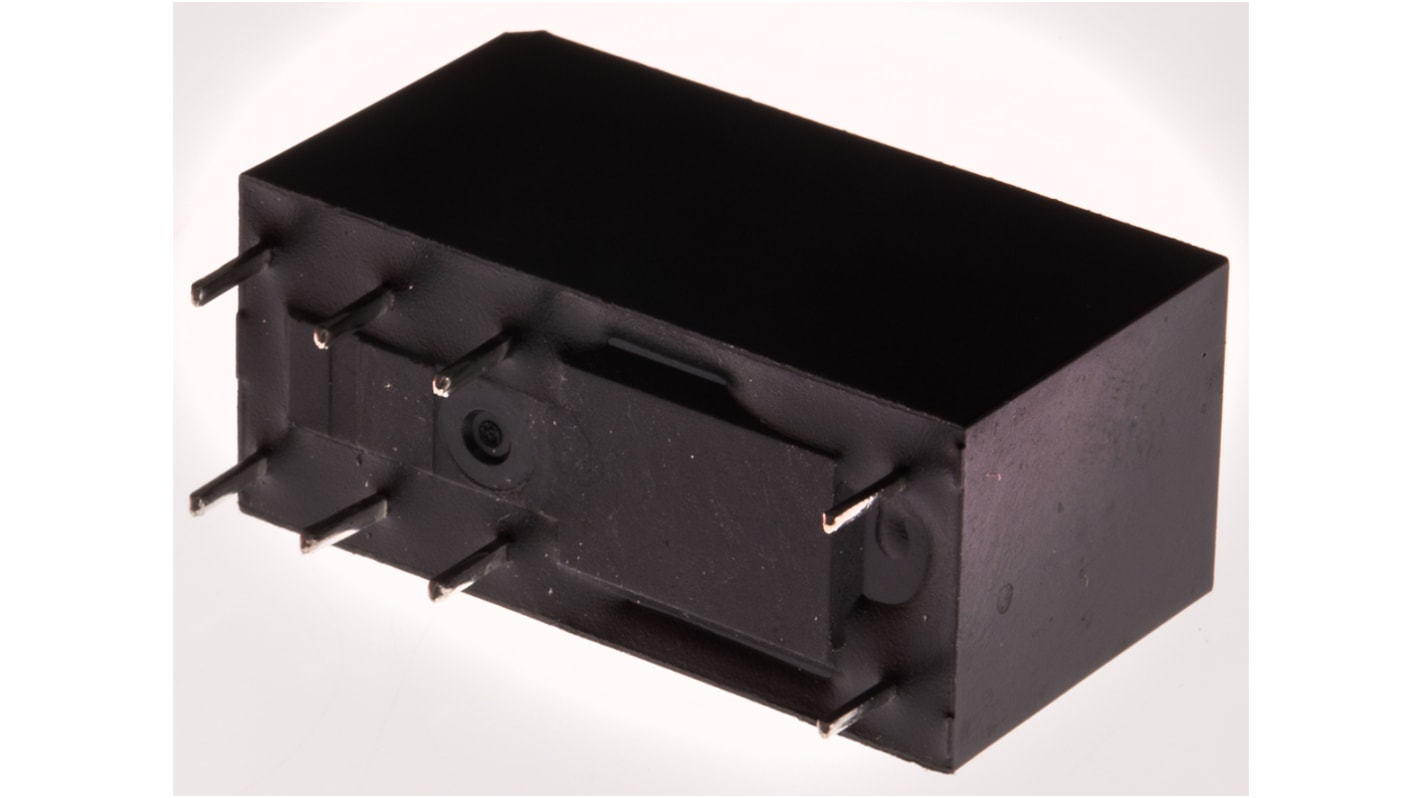

RS PRO PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 476-791P
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal 25 units (supplied in a box)*
€163.75
(exc. VAT)
€201.50
(inc. VAT)
In Stock
- 524 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 49 | €6.55 |
| 50 - 99 | €5.90 |
| 100 - 249 | €5.24 |
| 250 + | €4.63 |
*price indicative
- RS Stock No.:
- 476-791P
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 440V ac | |
| Maximum Switching Voltage DC | 300V dc | |
| Length | 29mm | |
| Coil Resistance | 1440Ω | |
| Coil Power | 400mW | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 5kV ac | |
| Depth | 12.7mm | |
| Standards Met | CQC 02001001951, RoHS Compliant, UL E134517, VDE 116934 | |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Height | 15.7mm | |
| Maximum Switching Power AC | 2 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 440V ac | ||
Maximum Switching Voltage DC 300V dc | ||
Length 29mm | ||
Coil Resistance 1440Ω | ||
Coil Power 400mW | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 5kV ac | ||
Depth 12.7mm | ||
Standards Met CQC 02001001951, RoHS Compliant, UL E134517, VDE 116934 | ||
Life 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Height 15.7mm | ||
Maximum Switching Power AC 2 kVA | ||
Application Power | ||
