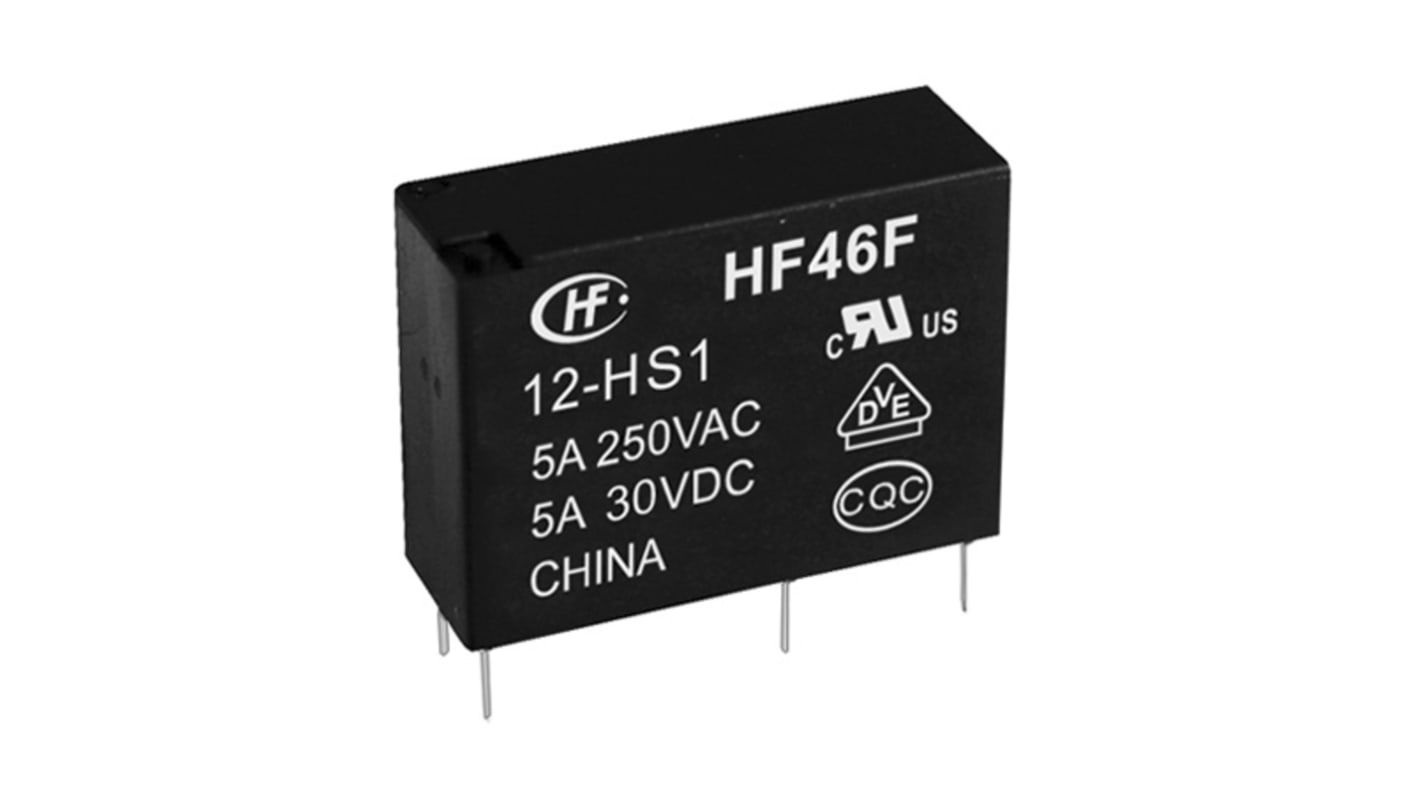

Hongfa Europe GMBH PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 176-2668
- Mfr. Part No.:
- HF46F/24-HS1F(610)
- Manufacturer:
- Hongfa Europe GMBH
Subtotal (1 box of 150 units)*
€230.85
(exc. VAT)
€283.95
(inc. VAT)
In Stock
- 900 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
150 + | €1.539 | €230.85 |
*price indicative
- RS Stock No.:
- 176-2668
- Mfr. Part No.:
- HF46F/24-HS1F(610)
- Manufacturer:
- Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hongfa Europe GMBH | |
Coil Voltage | 24V dc | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 5A | |
Number of Poles | 1 | |
Latching | No | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 277V | |
Maximum Switching Voltage DC | 30V dc | |
Maximum Switching Current AC | 5 A | |
Maximum Switching Current DC | 5 A | |
Length | 20.5mm | |
Coil Resistance | 2880Ω | |
Coil Power | 200mW | |
Minimum Operating Temperature | -40°C | |
Series | HF46F | |
Life | 5 x 10^6 cycles | |
Depth | 7mm | |
Isolation Coil To Contact | 10kV | |
Maximum Operating Temperature | +85°C | |
Height | 15.3mm | |
Contact Material | Silver Alloy | |
Maximum Switching Power AC | 1.385 kVA | |
Maximum Switching Power DC | 150 W | |
Select all | ||
---|---|---|
Brand Hongfa Europe GMBH | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 277V | ||
Maximum Switching Voltage DC 30V dc | ||
Maximum Switching Current AC 5 A | ||
Maximum Switching Current DC 5 A | ||
Length 20.5mm | ||
Coil Resistance 2880Ω | ||
Coil Power 200mW | ||
Minimum Operating Temperature -40°C | ||
Series HF46F | ||
Life 5 x 10^6 cycles | ||
Depth 7mm | ||
Isolation Coil To Contact 10kV | ||
Maximum Operating Temperature +85°C | ||
Height 15.3mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 1.385 kVA | ||
Maximum Switching Power DC 150 W | ||
