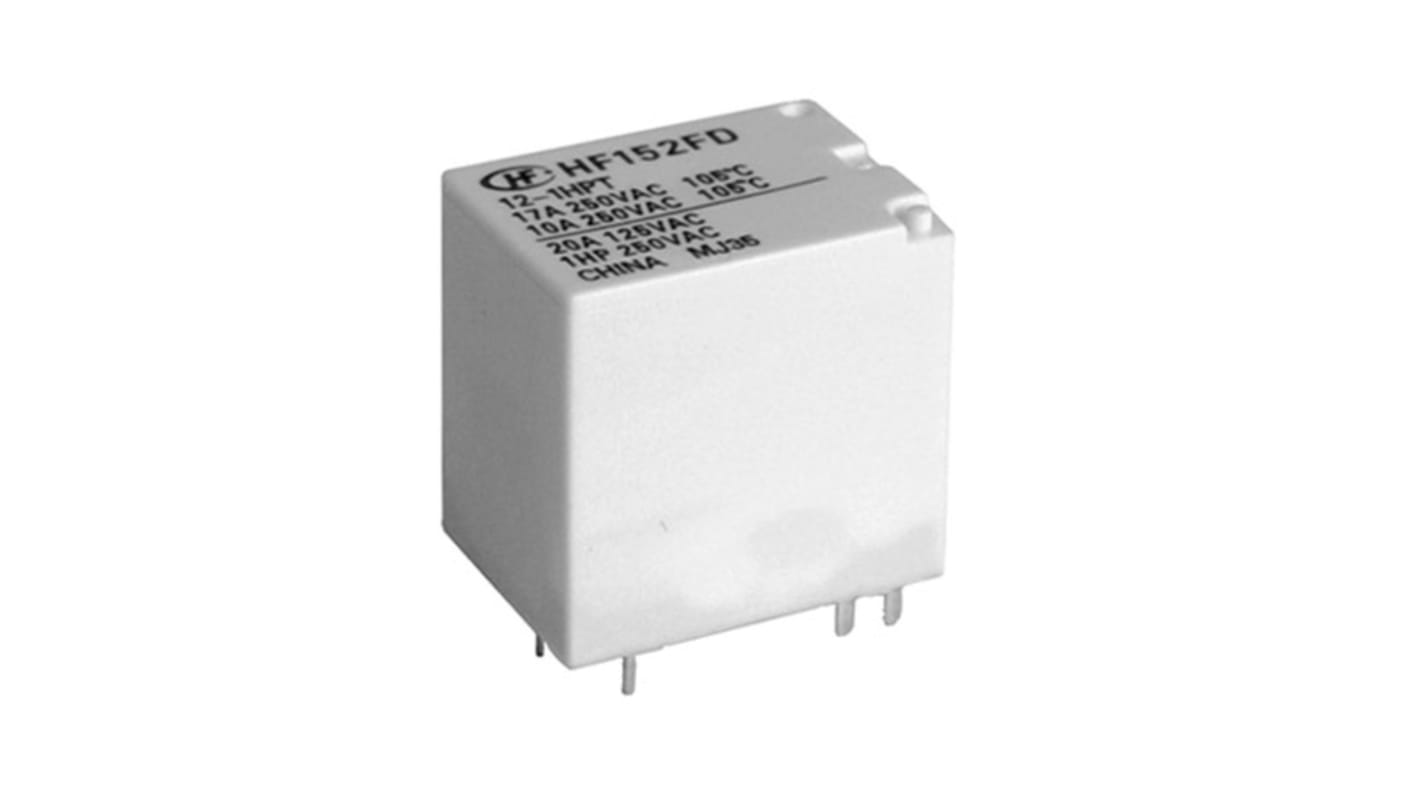

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 17A Switching Current, SPDT
- RS Stock No.:
- 176-2799
- Mfr. Part No.:
- HF152FD/12-1ZTF(335)
- Manufacturer:
- Hongfa Europe GMBH
20 In stock for delivery within 2 working days
Price Each (In a Pack of 5)
€1.554
(exc. VAT)
€1.911
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 245 | €1.554 | €7.77 |
| 250 - 745 | €1.444 | €7.22 |
| 750 - 1245 | €1.366 | €6.83 |
| 1250 + | €1.238 | €6.19 |
*price indicative
- RS Stock No.:
- 176-2799
- Mfr. Part No.:
- HF152FD/12-1ZTF(335)
- Manufacturer:
- Hongfa Europe GMBH
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
20A switching capability
Ambient temperature meets 105℃
High temperature load: 17A 277VAC at 105℃
1 Form C and 1 Form A configurations available
Double pins and Single pin terminal available, effectively reduce terminal temperature rise
Environmental friendly product
Outline Dimensions: (21.2 x 16.0 x 20.6) mm
Ambient temperature meets 105℃
High temperature load: 17A 277VAC at 105℃
1 Form C and 1 Form A configurations available
Double pins and Single pin terminal available, effectively reduce terminal temperature rise
Environmental friendly product
Outline Dimensions: (21.2 x 16.0 x 20.6) mm
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 17A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 400V |
| Maximum Switching Current AC | 17 A |
| Length | 21.2mm |
| Coil Resistance | 400Ω |
| Coil Power | 360mW |
| Series | HF152FD |
| Height | 20.6mm |
| Depth | 16mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Isolation Coil To Contact | 2.5kV ac |
| Contact Material | Silver Alloy |
| Life | 1 x 10^7 cycles |
| Maximum Switching Power AC | 4.7 kVA |
