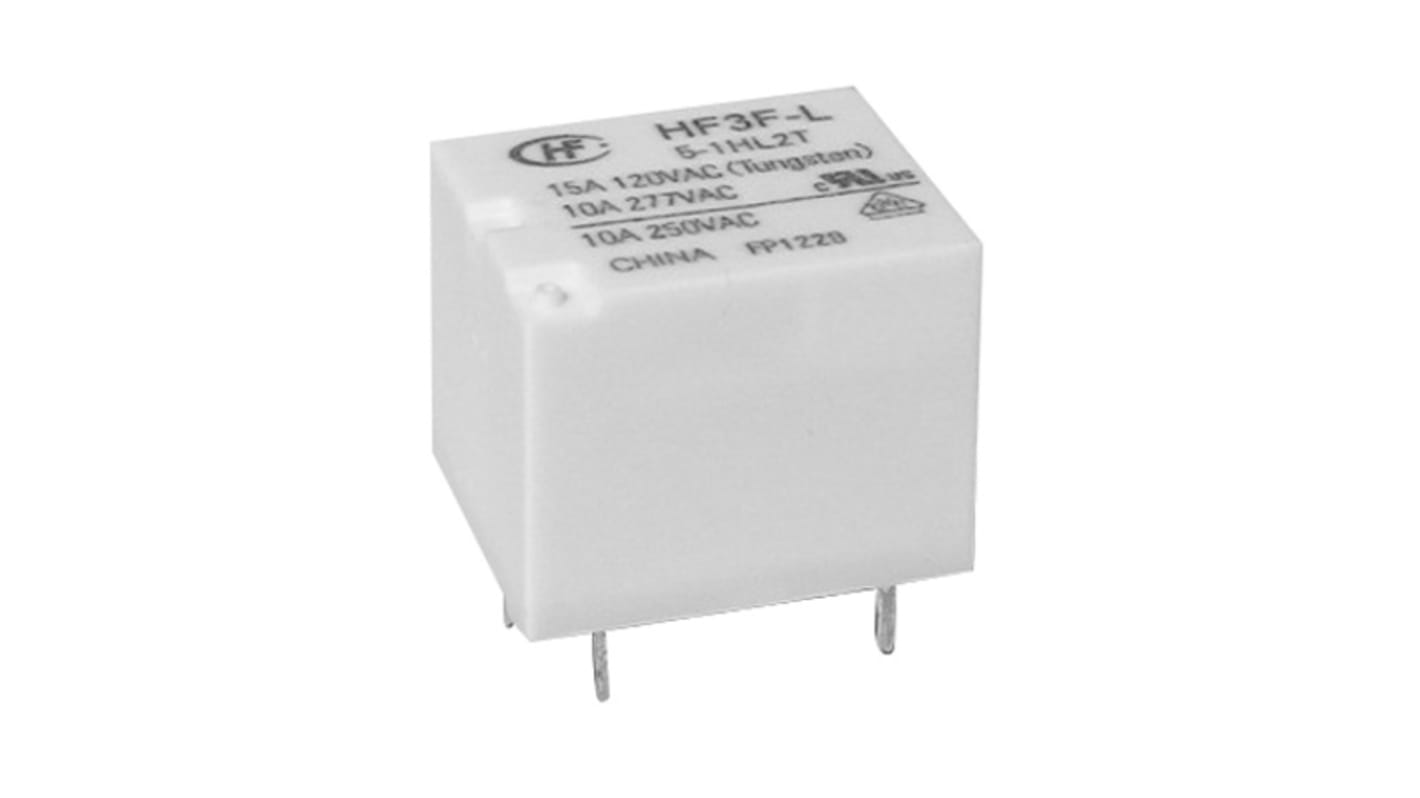

    Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 15A Switching Current, SPST

    View all Power Relays
    Currently unavailable
    We don't know if this item will be back in stock, RS intend to remove it from our range soon.
    RS Stock No.:
    176-2841
    Mfr. Part No.:
    HF3F-L/12-1HL1T(610)
    Manufacturer:
    Hongfa Europe GMBH
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Hongfa Europe GMBH

    Coil Voltage

    12V dc

    Contact Configuration

    SPST

    Mounting Type

    PCB Mount

    Switching Current

    15A

    Number of Poles

    1

    Latching

    Yes

    Terminal Type

    PCB Pin

    Maximum Switching Voltage AC

    277V

    Maximum Switching Voltage DC

    30V dc

    Maximum Switching Current AC

    15 A

    Maximum Switching Current DC

    15 A

    Length

    19mm

    Coil Resistance

    360Ω

    Coil Power

    400mW

    Isolation Coil To Contact

    2kV ac

    Maximum Operating Temperature

    +80°C

    Contact Material

    Silver Alloy

    Life

    1 x 10^7 cycles

    Height

    15.5mm

    Series

    HF3F-L

    Minimum Operating Temperature

    -40°C

    Depth

    15.2mm

    Standards Met

    CQC File No:CQC15002121475, cULus File No:E134517, VDE File No:40040757

    Maximum Switching Power AC

    2.77 kVA

    Maximum Switching Power DC

    300 W

    Dimensions

    19 x 15.2 x 15.5mm
