Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	240V ac
	Contact Configuration	SPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Series	G2R-S
	Terminal Type	Plug In
	Maximum Switching Voltage AC	440V
	Maximum Switching Voltage DC	125V
	Maximum Switching Current DC	10 A
	Maximum Switching Current AC	10 A
	Length	13mm
	Coil Resistance	27.8 kO
	Coil Power	900mW
	Height	40.5mm
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-40°C
	Standards Met	CE, CSA
	Depth	29mm
	Maximum Switching Power DC	300000 mW
	Maximum Switching Power AC	2.5 kVA
	Dimensions	13 x 29 x 40.5mm

	Select all
	Brand Omron
	Coil Voltage 240V ac
	Contact Configuration SPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Series G2R-S
	Terminal Type Plug In
	Maximum Switching Voltage AC 440V
	Maximum Switching Voltage DC 125V
	Maximum Switching Current DC 10 A
	Maximum Switching Current AC 10 A
	Length 13mm
	Coil Resistance 27.8 kO
	Coil Power 900mW
	Height 40.5mm
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -40°C
	Standards Met CE, CSA
	Depth 29mm
	Maximum Switching Power DC 300000 mW
	Maximum Switching Power AC 2.5 kVA
	Dimensions 13 x 29 x 40.5mm

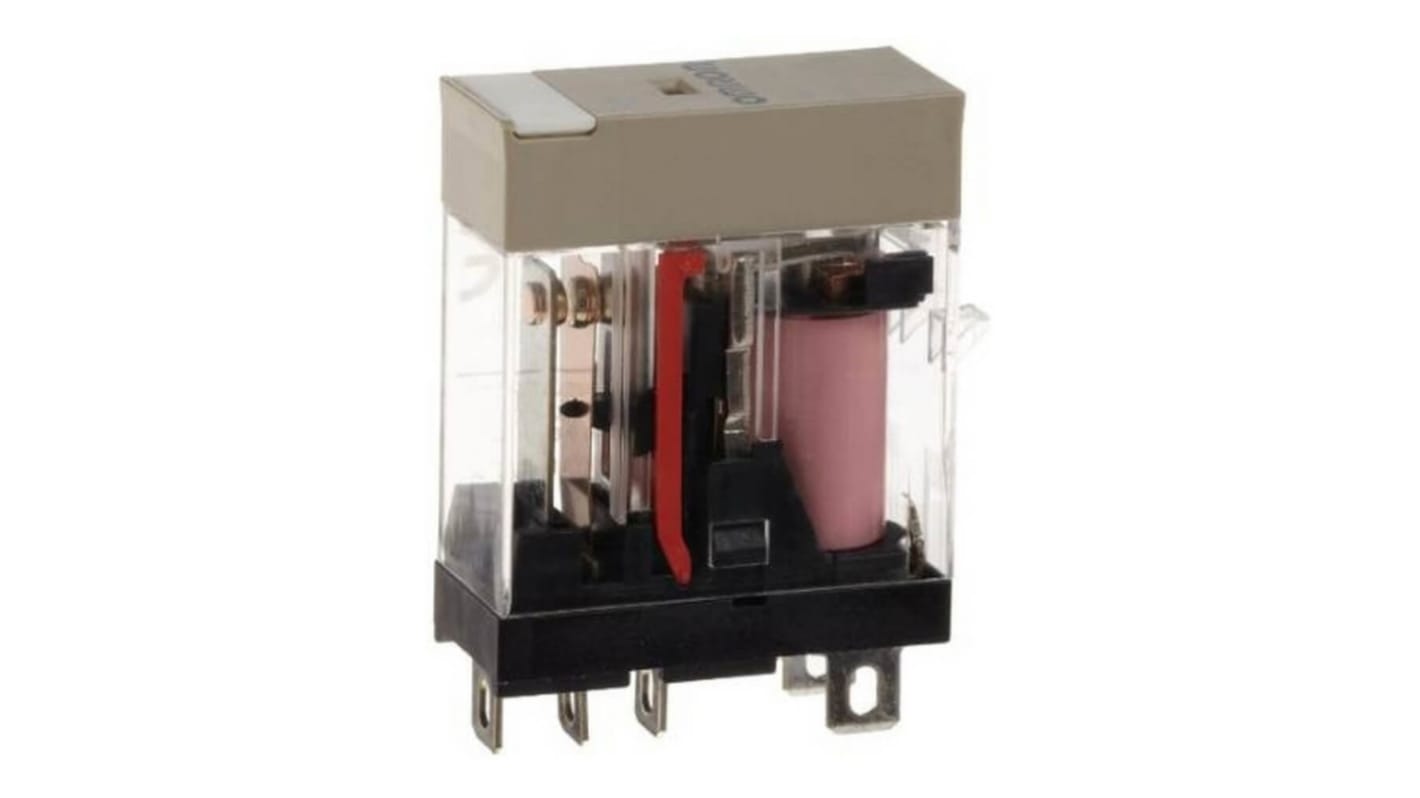

Omron Plug In Non-Latching Relay, 240V ac Coil, 10A Switching Current, SPDT

Omron G2R-S Series Non-Latching Relay, SPDT Contact Configuration, 10A Switching Current - G2R-1-S AC240(S)

Features & Benefits

Applications

What type of load can be handled?

How does installation work?

Can this relay be used for quick switching applications?
