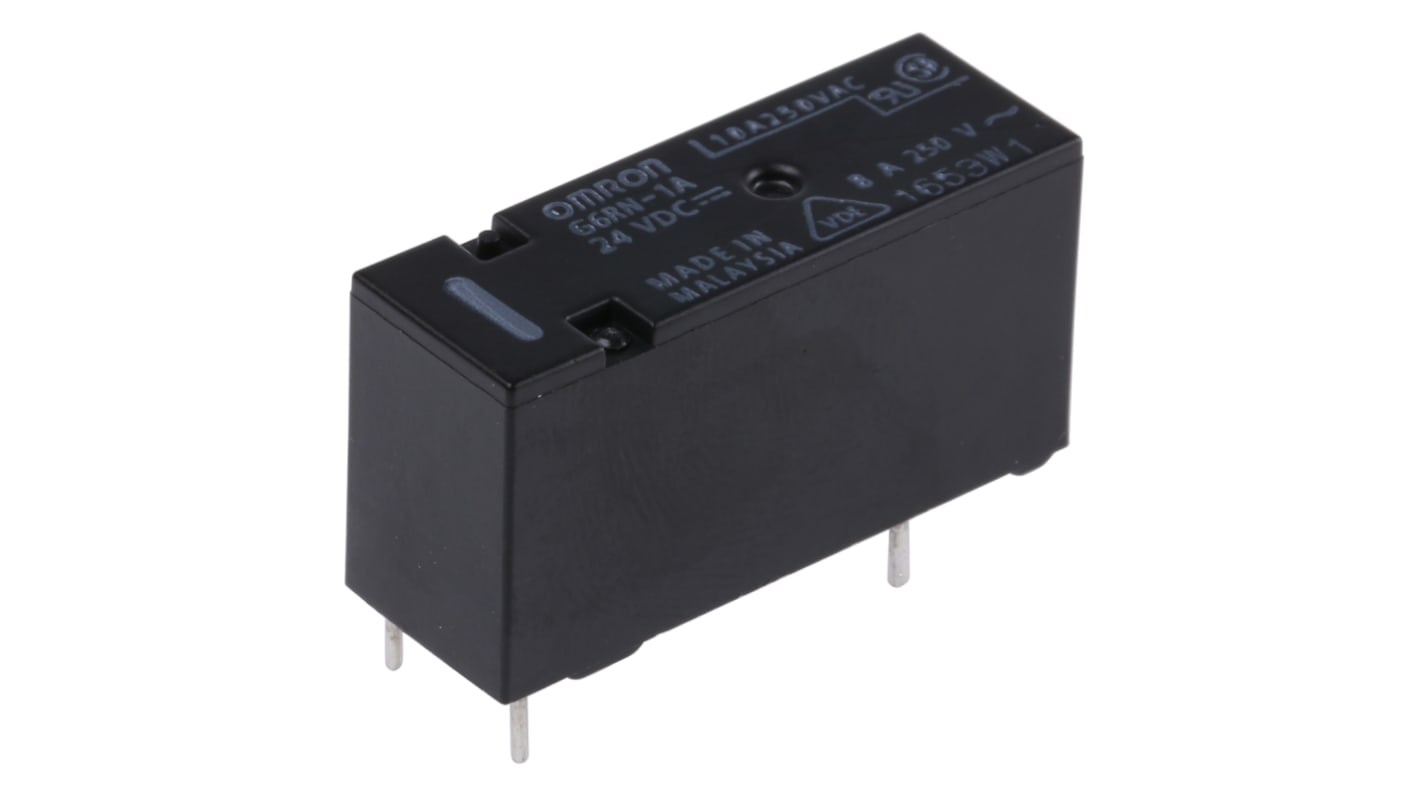

Omron PCB Power Relay, 24V dc Coil, 8A Switching Current, SPST

Name: Omron PCB Power Relay, 24V dc Coil, 8A Switching Current, SPST
Brand: Omron
SKU: 237-5390
Availability: InStock

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

€3.18

(exc. VAT)

€3.91

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Power Relay
	Coil Voltage	24V dc
	Contact Configuration	SPST
	Mount Type	PCB
	Series	G6RN
	Terminal Type	Solder
	Switching Current	8A
	Switching AC Voltage	250V ac
	Switching DC Voltage	30V dc
	Switching Power	2kVA
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Coil Resistance	2.6kΩ
	Height	15.3mm
	Width	10.5mm
	Standards/Approvals	RoHS
	Length	28.8mm
	Coil Power	220mW
	Contact Material	Gold Plated

	Select all
	Brand Omron
	Product Type Power Relay
	Coil Voltage 24V dc
	Contact Configuration SPST
	Mount Type PCB
	Series G6RN
	Terminal Type Solder
	Switching Current 8A
	Switching AC Voltage 250V ac
	Switching DC Voltage 30V dc
	Switching Power 2kVA
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Coil Resistance 2.6kΩ
	Height 15.3mm
	Width 10.5mm
	Standards/Approvals RoHS
	Length 28.8mm
	Coil Power 220mW
	Contact Material Gold Plated

Fully sealed

8mm creepage and clearance

Minimum contact load: 100mA @ 5mVdc

Switching Voltage: 250 Vac

Contact Resistance: 50mΩ

Mechanical Life: 10 x 10⁶

Contact Material: AgNi

Operating Temperature: -40 → +85°C

H15, W28.5, D10mm

VDE

IEC,CENELEC
